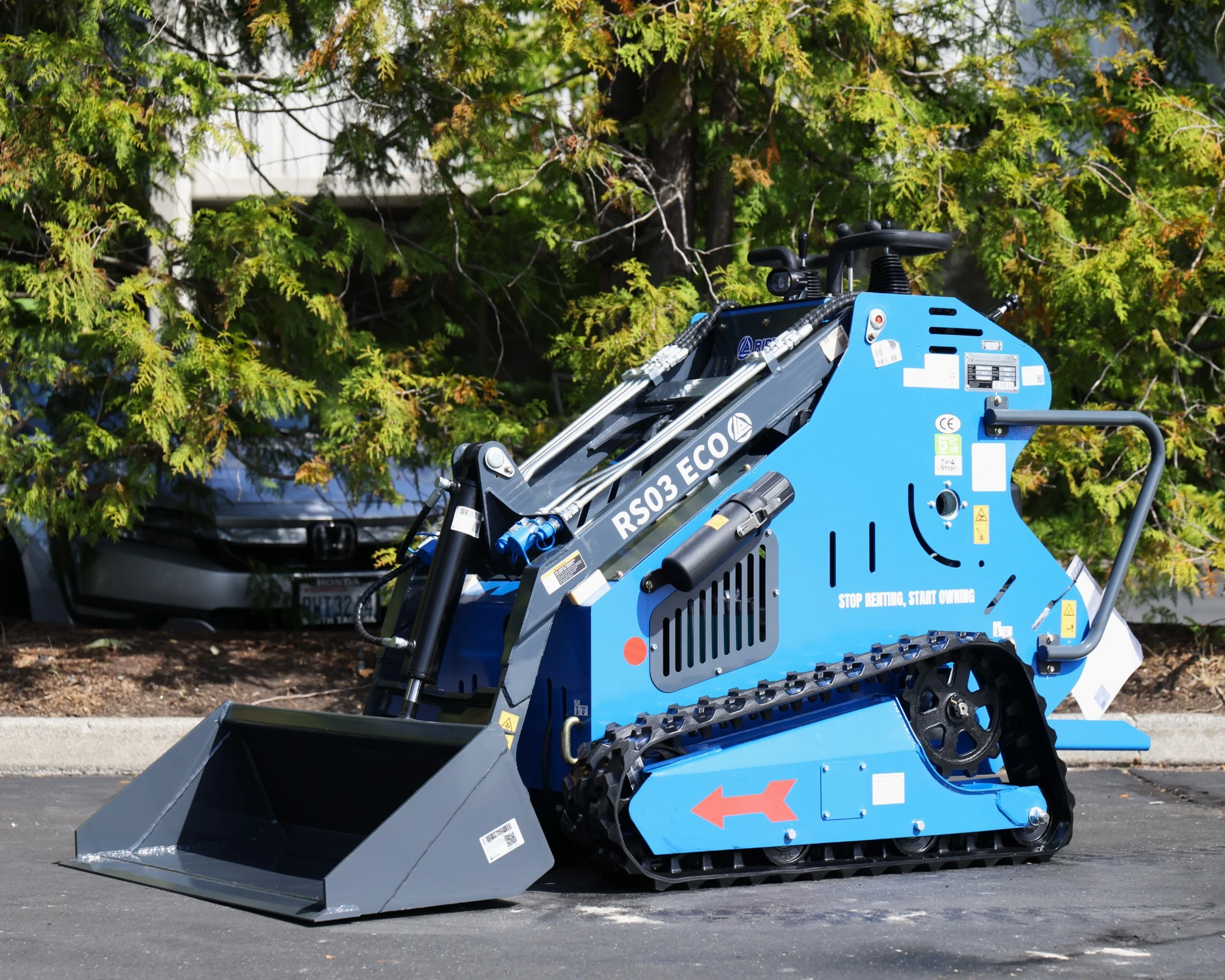

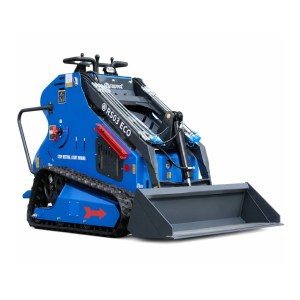

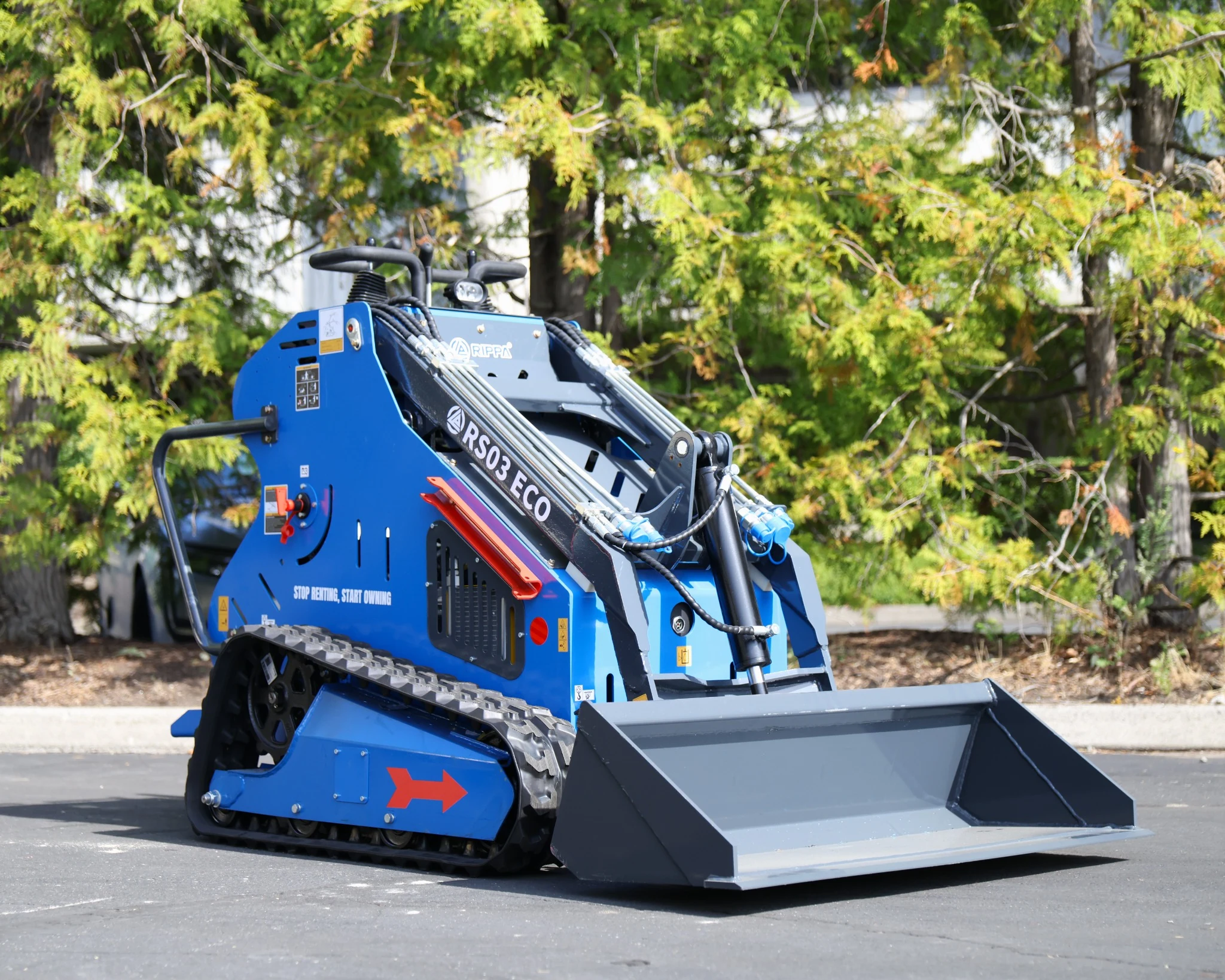

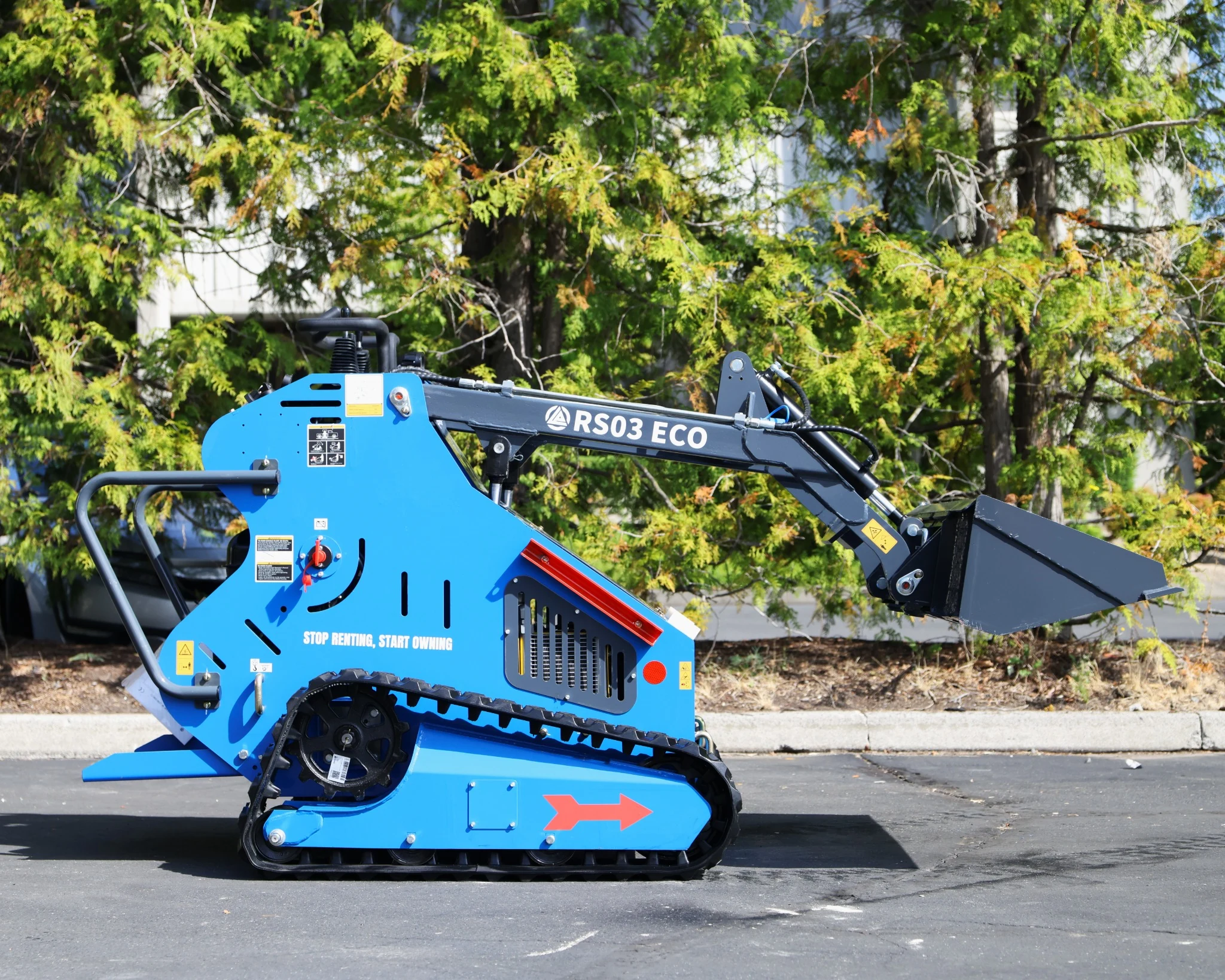

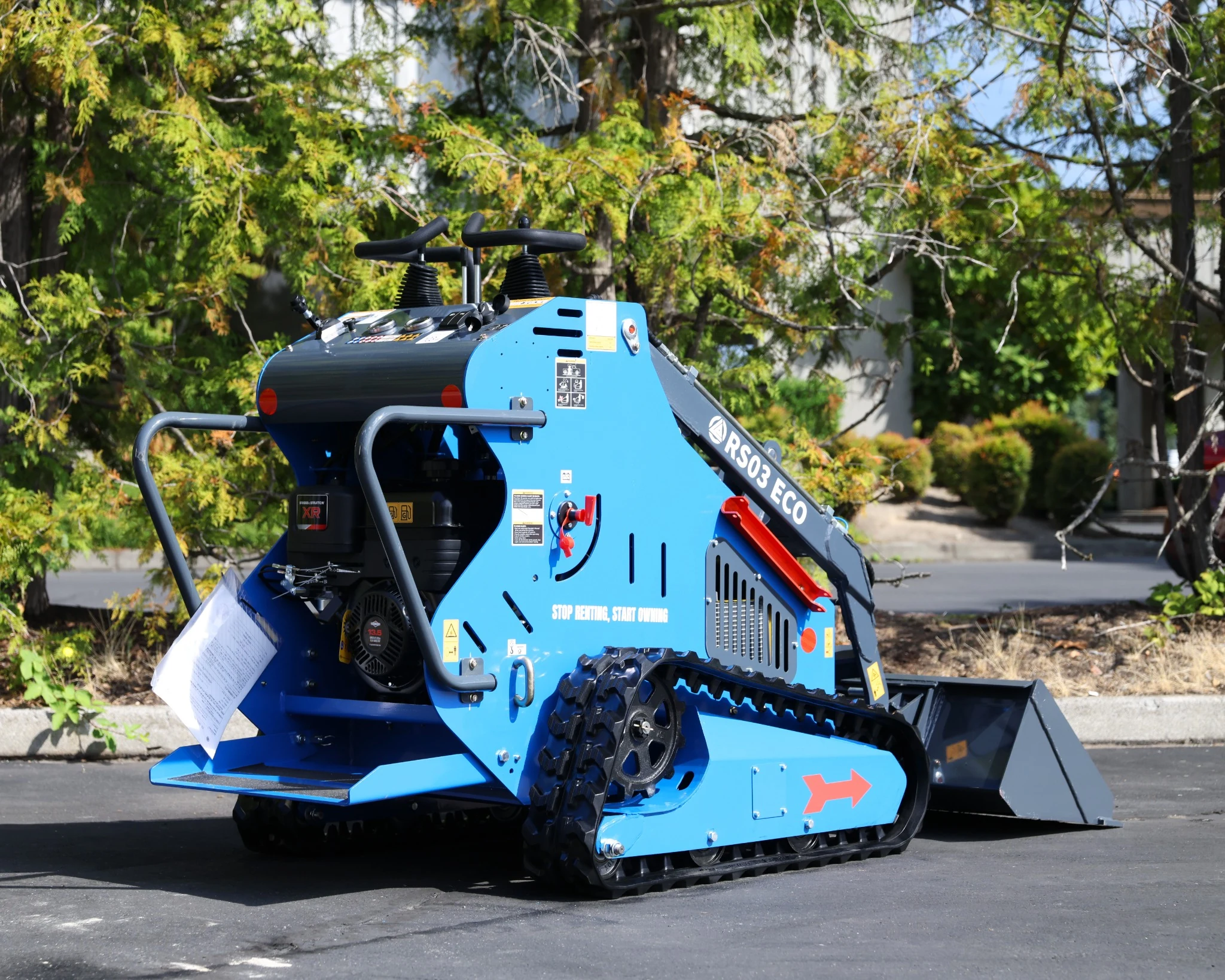

RIPPA RS03 ECO Mini Skid Steer Loader
Compact tracked loader built for material handling, grading, property maintenance, and powered attachments in tight work areas.
Compact Size. Serious Hydraulic Capability.
The RIPPA RS03 ECO combines Briggs & Stratton gas power, a triple-pump hydraulic system, two separate auxiliary hydraulic circuits, and a compact tracked platform designed for jobs where a larger skid steer is simply too much machine.

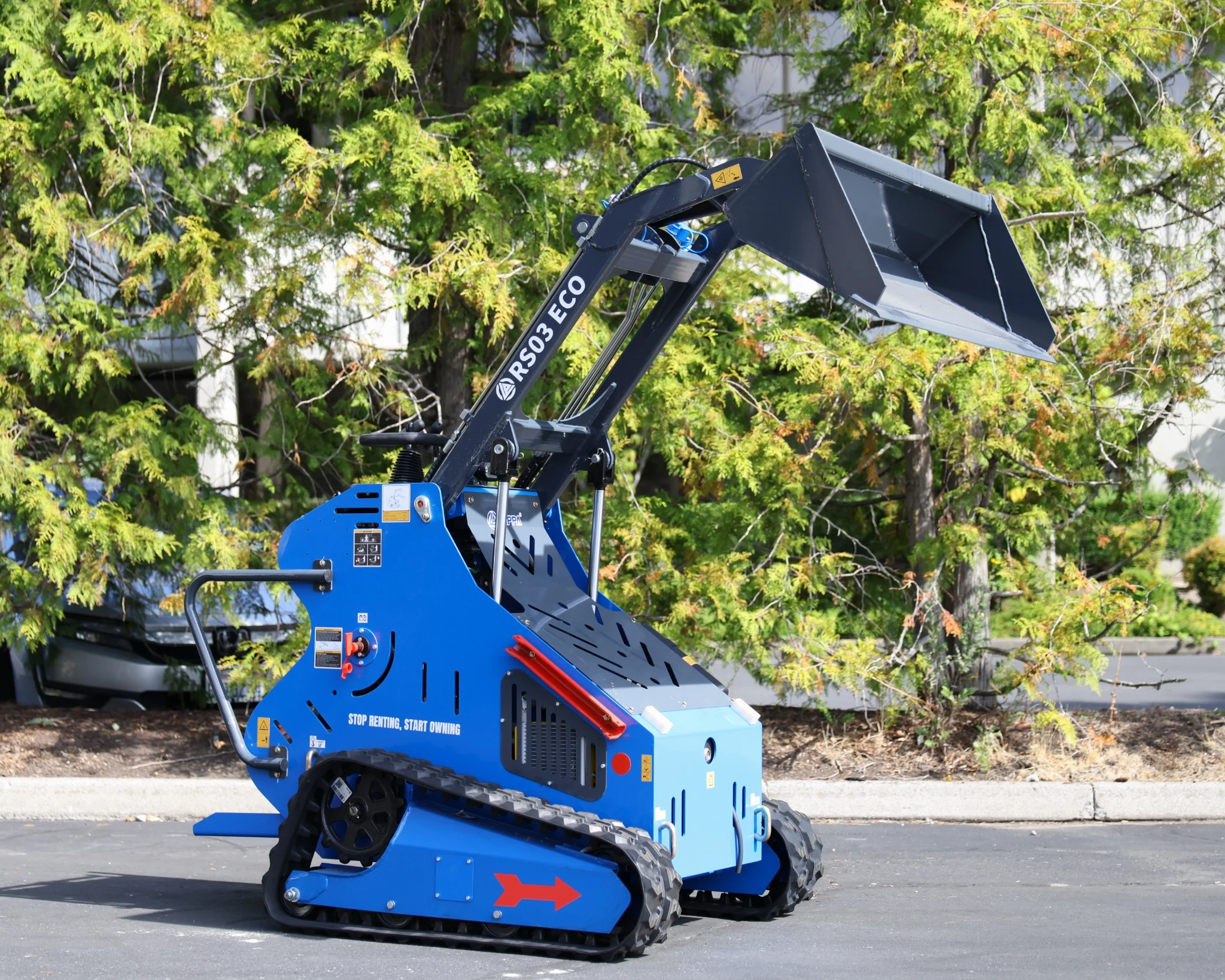

Compact Loader. Useful Working Range.
The RS03 ECO is sized for tight-access work while still providing the lift height and capacity needed for everyday loading, landscaping, and property maintenance.
- 308 lb rated safe load
- 616 lb manufacturer-listed maximum(tipping) load

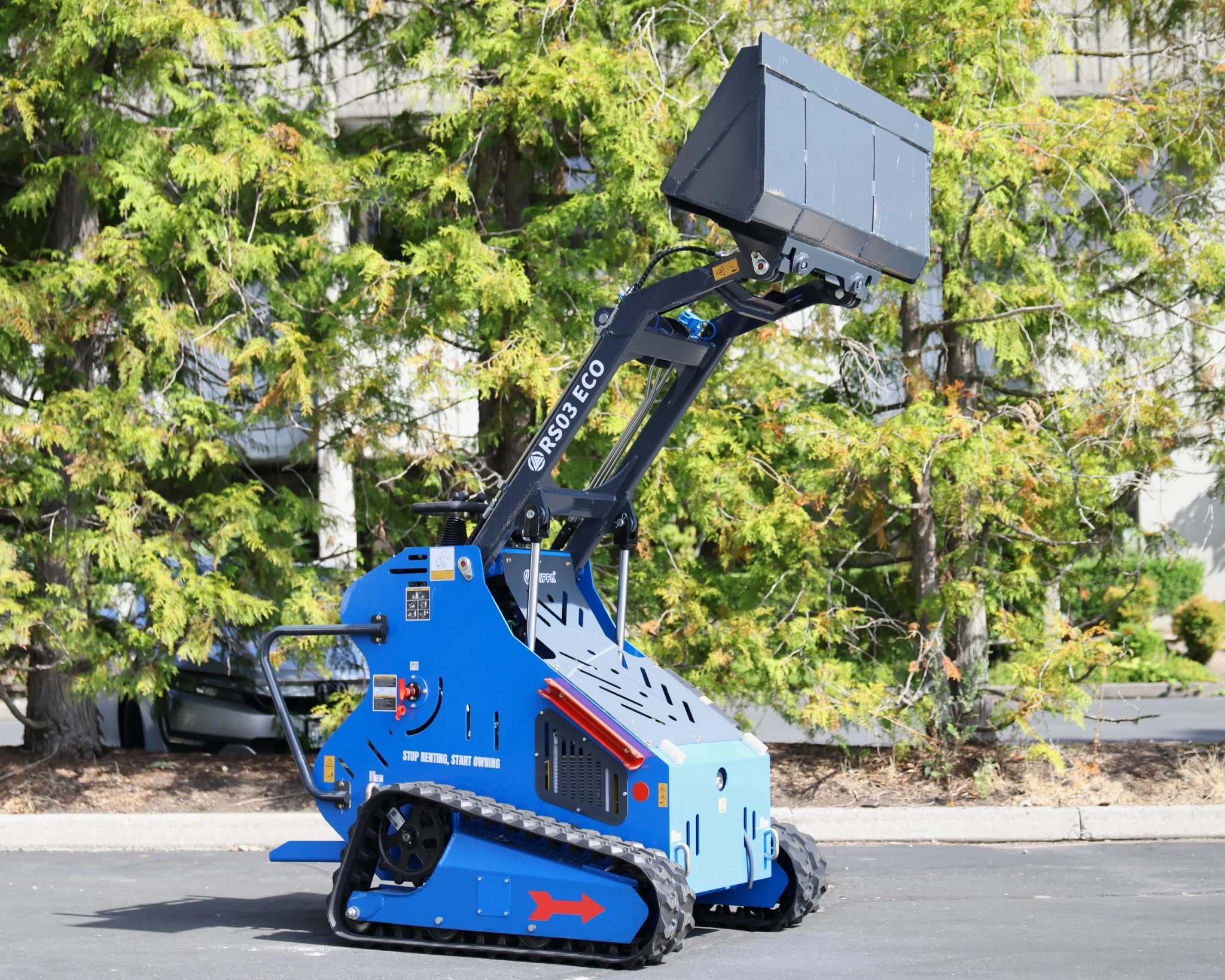

- 88.9 in maximum loading height
- 61.1 in maximum unloading height
- 24.4 in maximum unloading reach

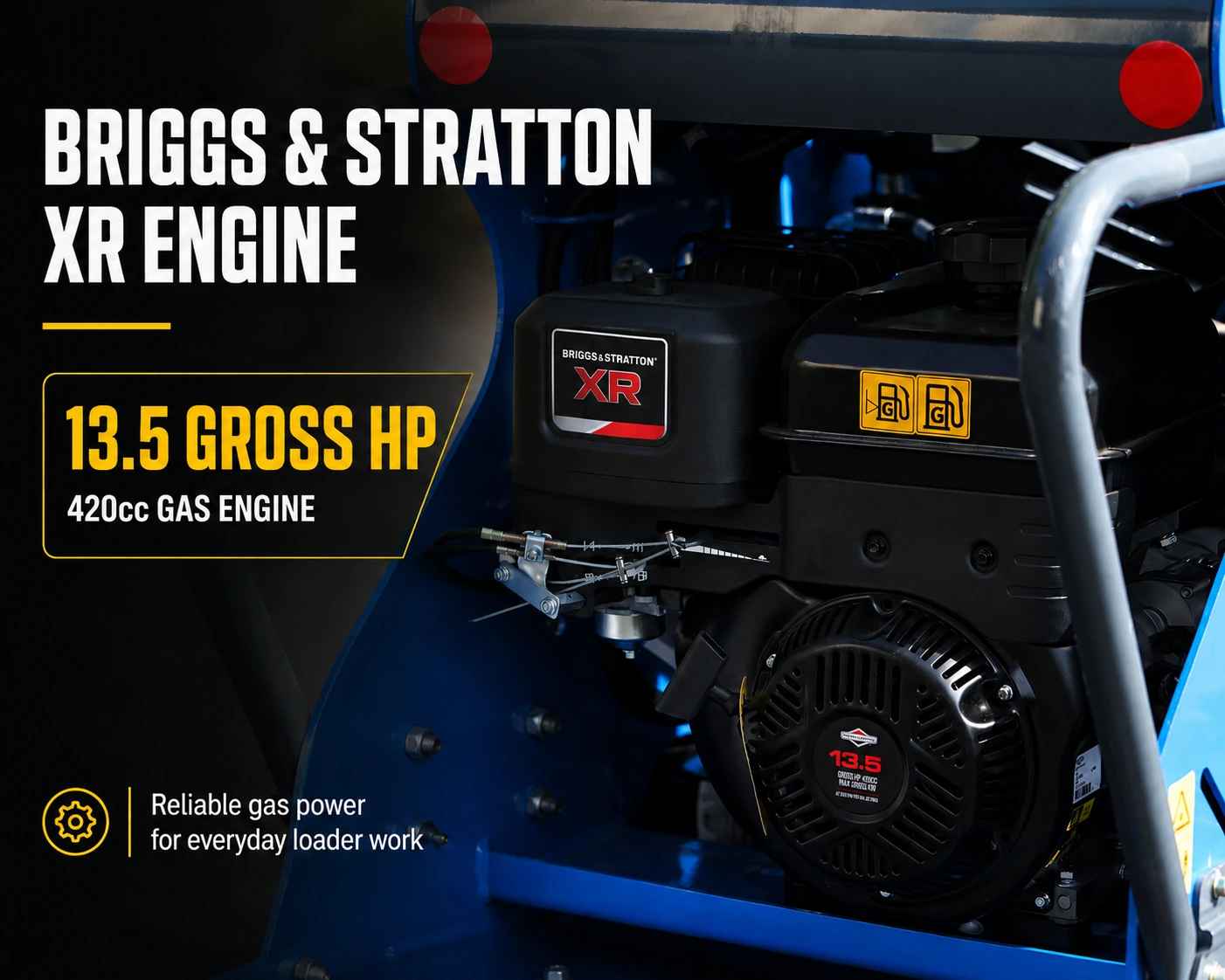

Briggs & Stratton XR2100 Gas Power
The RS03 ECO uses a proven Briggs & Stratton XR2100 single-cylinder gas engine for simple operation, familiar maintenance, and dependable everyday power.

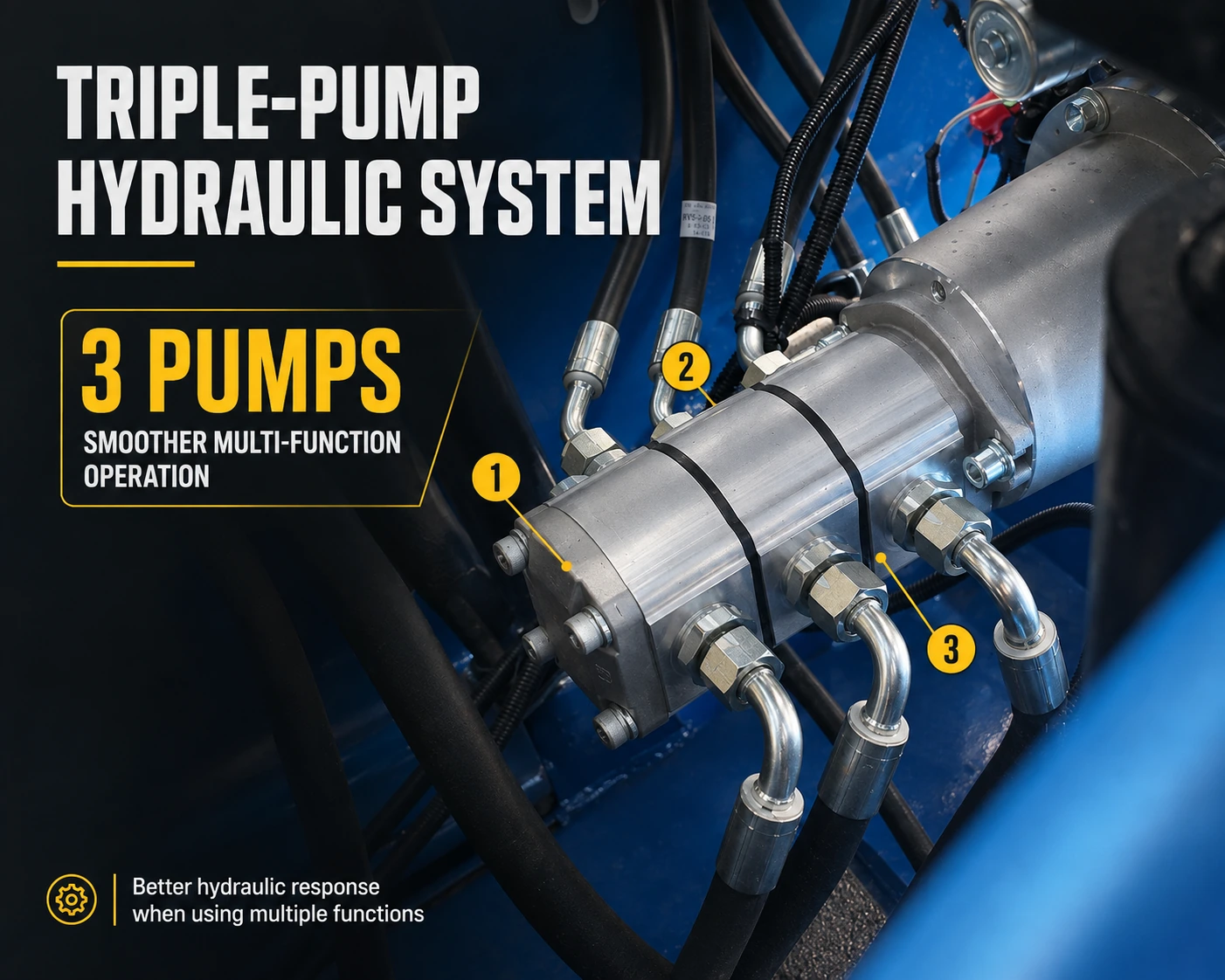

Triple-Pump Hydraulic System
A three-section gear-pump assembly supplies the RS03 ECO hydraulic system, helping provide responsive operation when working with multiple loader and attachment functions.
- Triple-section gear pump design
- Smoother multi-function operation
- Responsive loader controls
- Built for hydraulic attachment use
Two Separate Auxiliary Hydraulic Circuits
The RS03 provides two independent auxiliary hydraulic circuits instead of a single auxiliary connection, giving the machine much greater attachment flexibility.
- Proportional circuit: variable hydraulic output for precise control
- Continuous-flow circuit: constant hydraulic flow for powered attachments
- Use standard powered attachments requiring one hydraulic circuit
- Supports advanced attachments requiring two hydraulic functions
- Example: backhoe attachment with separate dig and swing functions

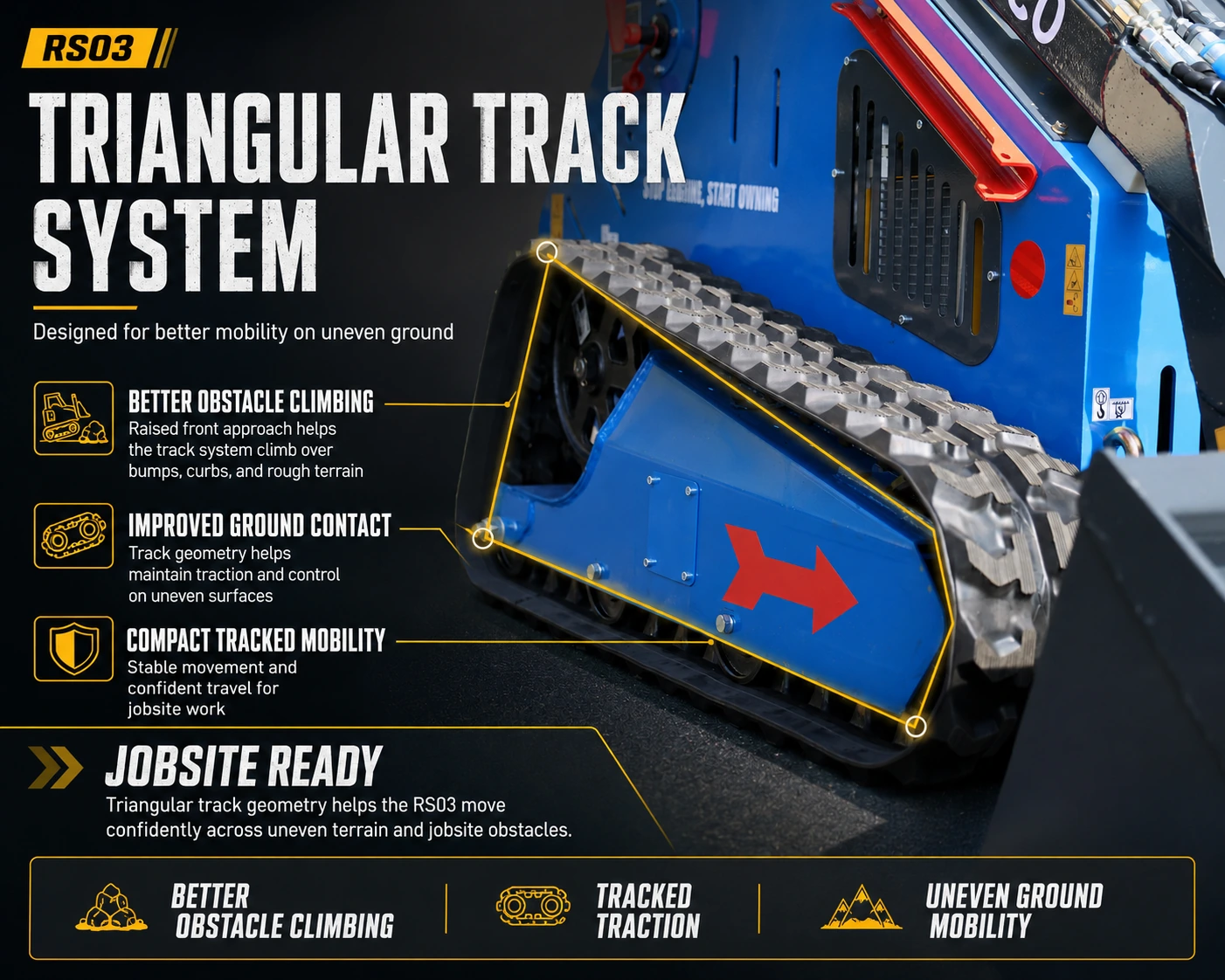

Compact Tracked Platform
At only 45.3 inches wide, the RS03 ECO is designed to work in areas where larger loaders become difficult to maneuver.
- 45.3 in overall transport width
- 1,595 lb manufacturer-listed working weight

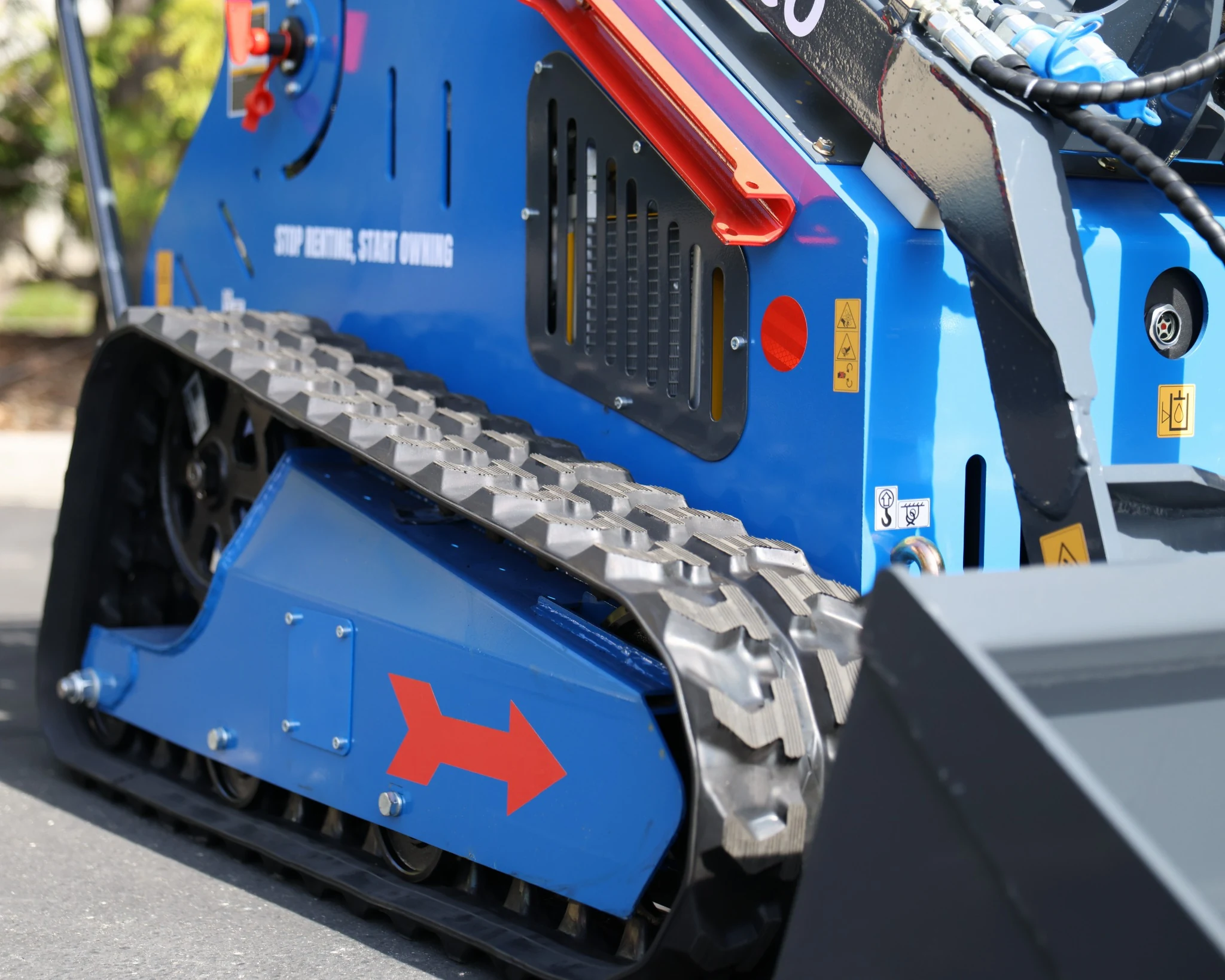

- Rubber tracked undercarriage
- Compact stand-on operating platform
- 25% manufacturer-listed gradeability
- 5.1 in minimum ground clearance
One Compact Machine. More Ways to Work.
With two auxiliary hydraulic circuits and a compact tracked platform, the RS03 ECO can operate a wide range of compatible loader and powered attachments.
Loading & Material Handling
Move soil, mulch, gravel, debris, and other jobsite materials with compatible loader attachments.
Digging & Trenching
Run compatible augers, trenchers, and digging attachments for landscaping and utility work.
Powered Attachments
Continuous auxiliary flow supports compatible hydraulically powered tools requiring constant flow.
Multi-Function Attachments
Two independent hydraulic circuits allow compatible attachments with more than one hydraulic function, including backhoe-style dig and swing operation.
Bundle attachments with your machine to save.
Key Specifications
| Engine | Briggs & Stratton XR2100 gasoline engine |
|---|---|
| Displacement | 420cc / 0.42 L |
| Engine Rating | 13.5 Gross HP on engine rating; manufacturer parameter sheet lists 13.6 PS / 13.4 HP |
| Maximum Power | 10 kW |
| Maximum Engine Speed | 3600 RPM |
| Cylinders | 1 |
| Cooling | Air cooled |
| Engine Oil Capacity | 1.2 L / 0.317 gal |
| Fuel | Gasoline |
| Manufacturer Fuel Grade | 92# |
| Theoretical Fuel Consumption | 0.8–1.2 L/h / approximately 0.21–0.32 gal/h |
| Machine Working Weight | 1,595 lb / 725 kg manufacturer-listed |
| Bucket Capacity | 5.3 ft³ / 0.15 m³ |
| Rated Load – Safe Load | 308 lb / 140 kg manufacturer-listed |
| Maximum Load | 616 lb / 280 kg manufacturer-listed |
| Maximum Loading Height | 88.9 in / 2259 mm |
| Maximum Unloading Height | 61.1 in / 1553 mm |
| Maximum Unloading Distance | 24.4 in / 620 mm |
| Travel Speed | 0–1.55 mph / 0–2.5 km/h |
| Gradeability | 25% |
| Ground Pressure | 22.5 kPa / approximately 3.26 psi |
| Minimum Ground Clearance | 5.1 in / 129 mm |
| Transport Length With Bucket | 82.7 in / 2100 mm |
| Transport Length Without Bucket | 64.5 in / 1638 mm |
| Transport Width | 45.3 in / 1150 mm |
| Transport Height | 53.6 in / 1361 mm |
| Bucket Width | 45.3 in / 1150 mm |
| Main Hydraulic Pump | Gear pump, model PGP51044SLP |
| Main Pump Brand | Tianjin Walking |
| Multi-Way Valve Brand | Tengfei |
| Auxiliary Hydraulics | Two separate auxiliary circuits: proportional flow and continuous flow |
| Travel Hydraulic Motor | Luko BM5-250 |
| Travel Motor Brand | Luko |
Specifications are based on the current RIPPA manufacturer parameter sheet. Manufacturer-listed imperial load and weight figures are retained where supplied. Contact Best Seedling to confirm current production specifications and configuration.
