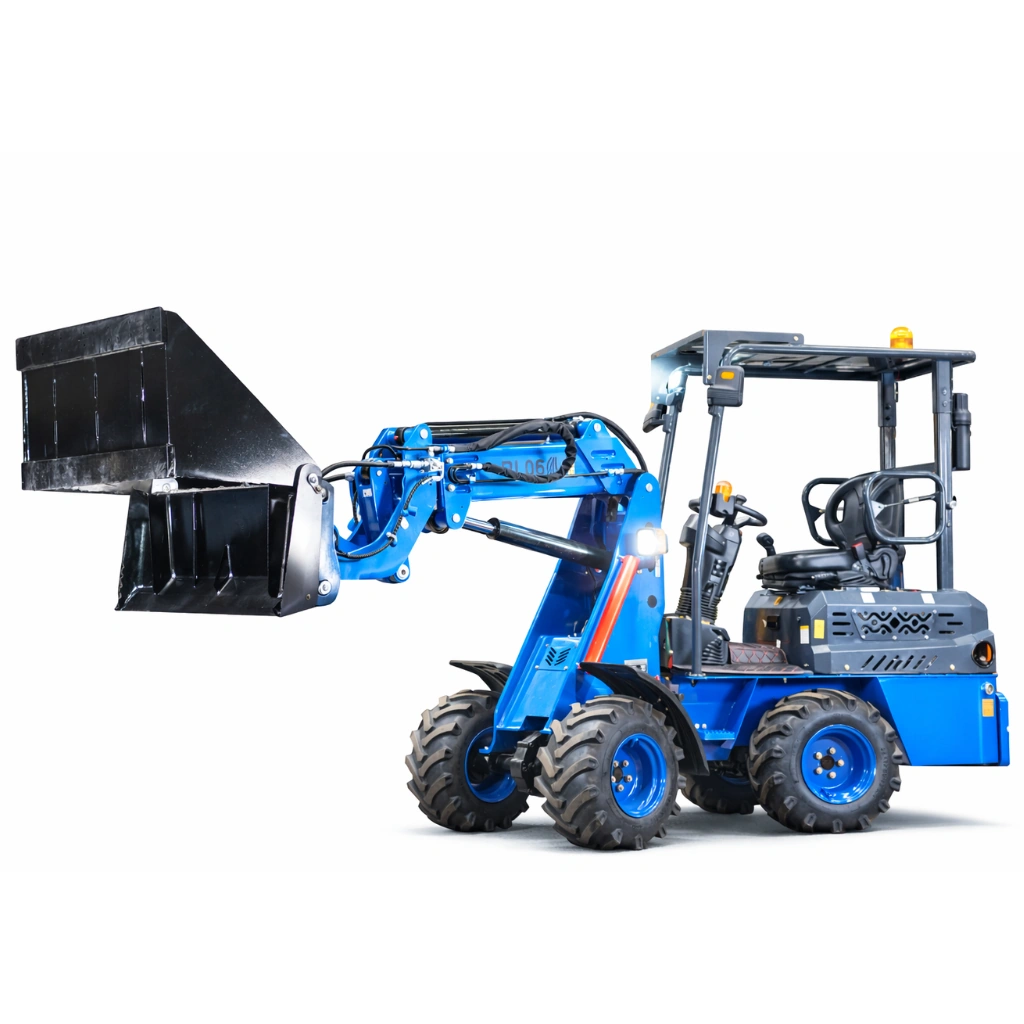

Rippa RL-06 articulated wheel loader on white background

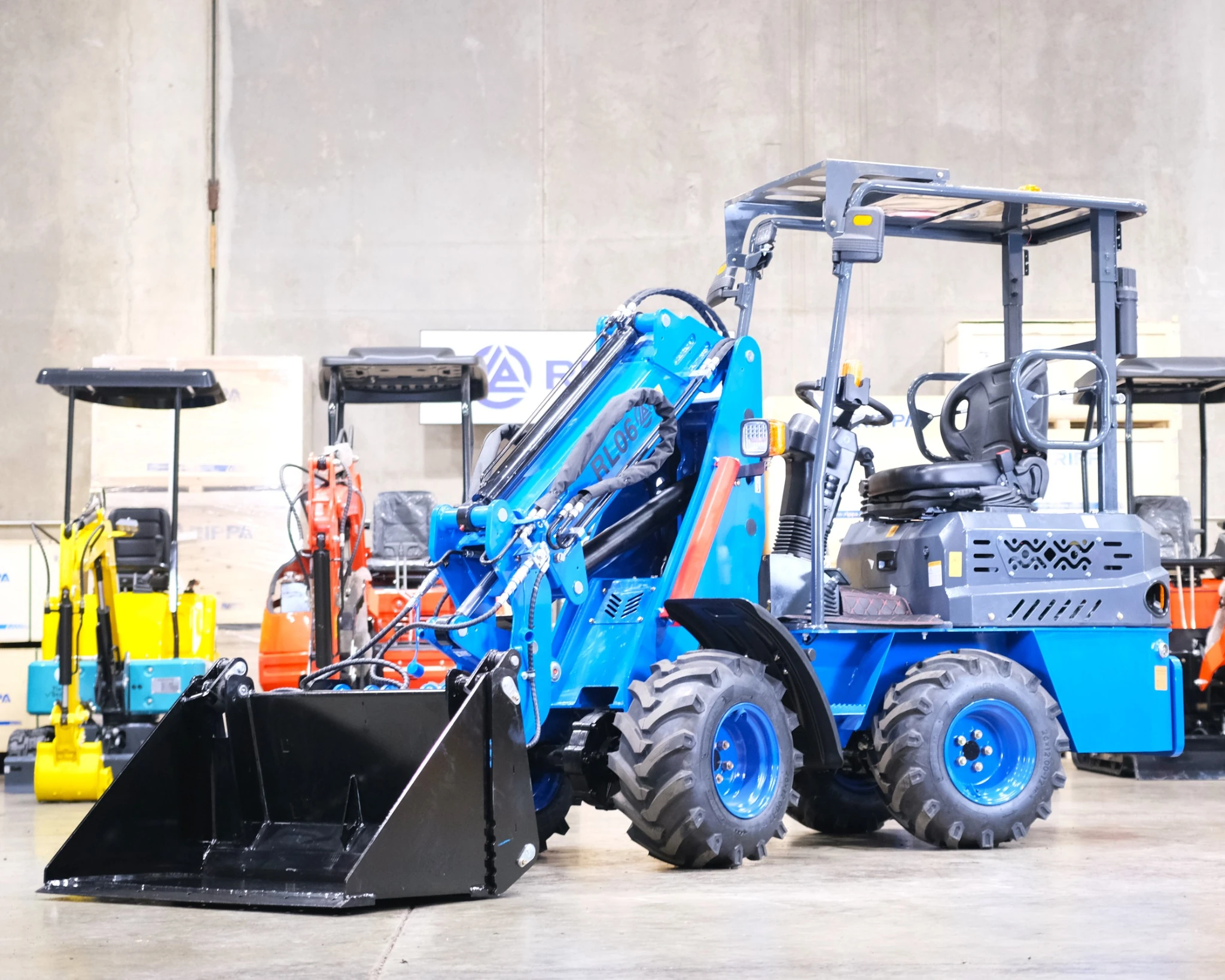

Rippa RL-06 compact wheel loader angled front view with telescopic arm

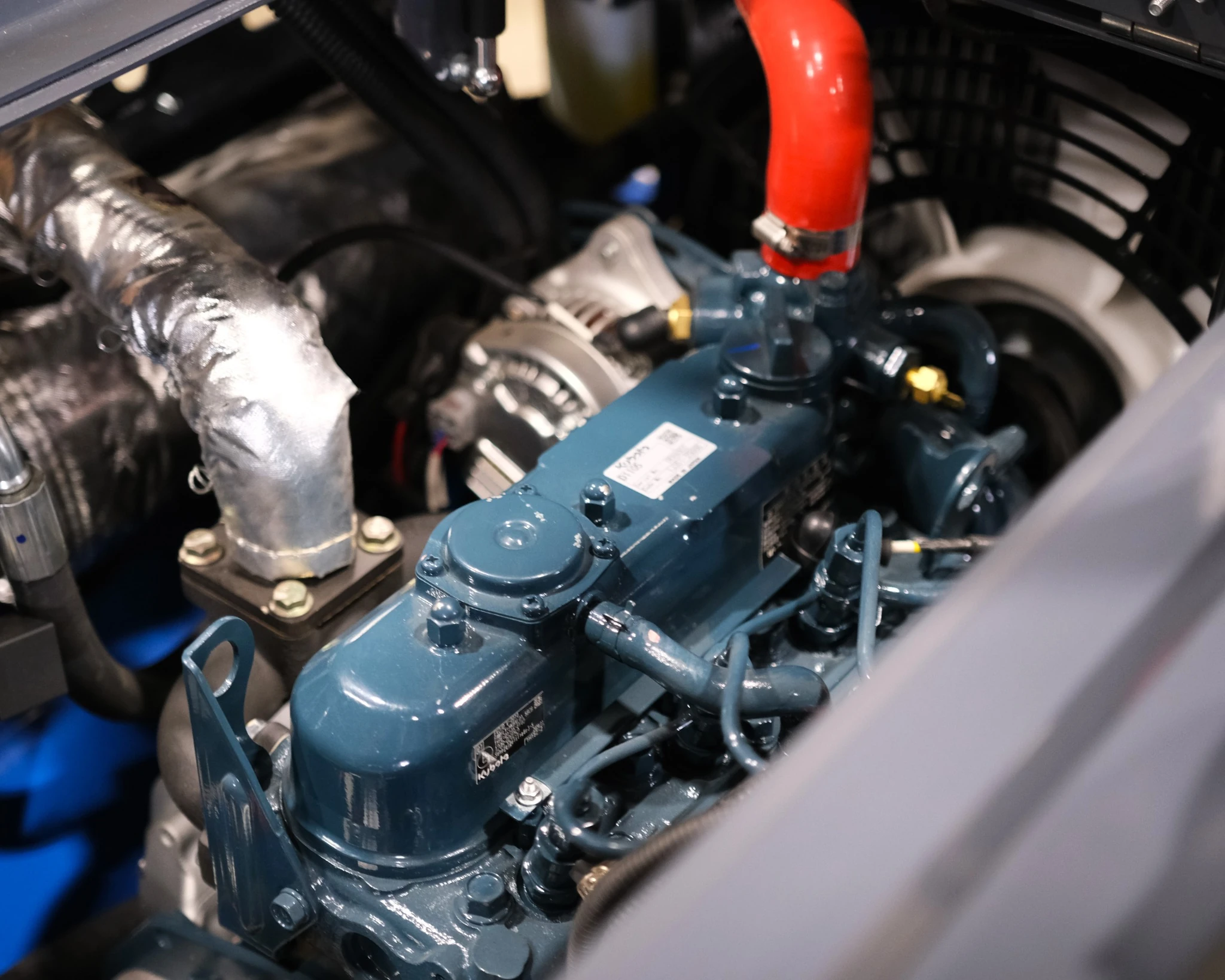

Kubota D1105 diesel engine inside Rippa RL-06 loader

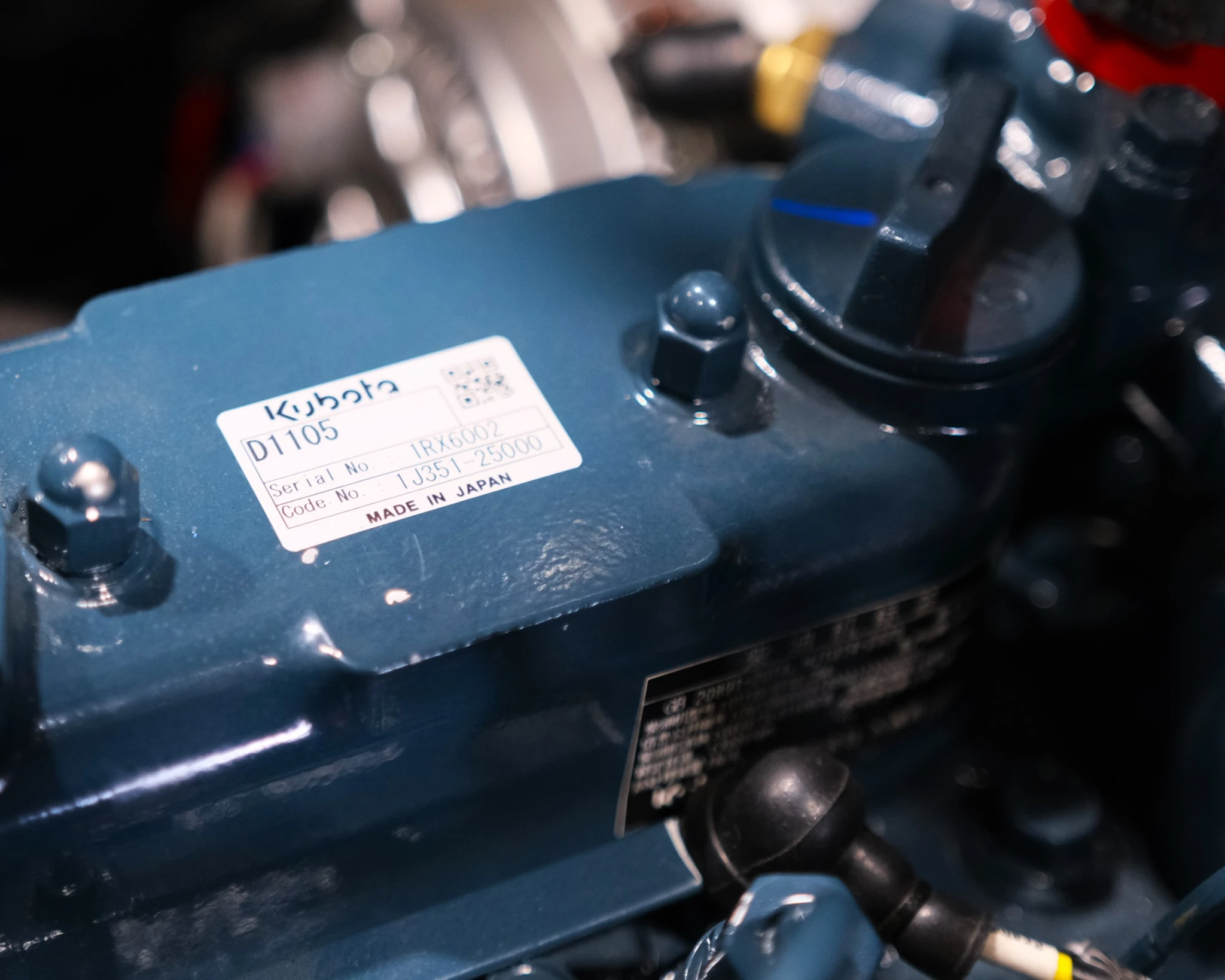

Kubota D1105 diesel engine label on RL-06 wheel loader
Rippa RL-06 wheel loader with telescopic arm raised
Rippa RL-06 telescopic arm fully extended side view

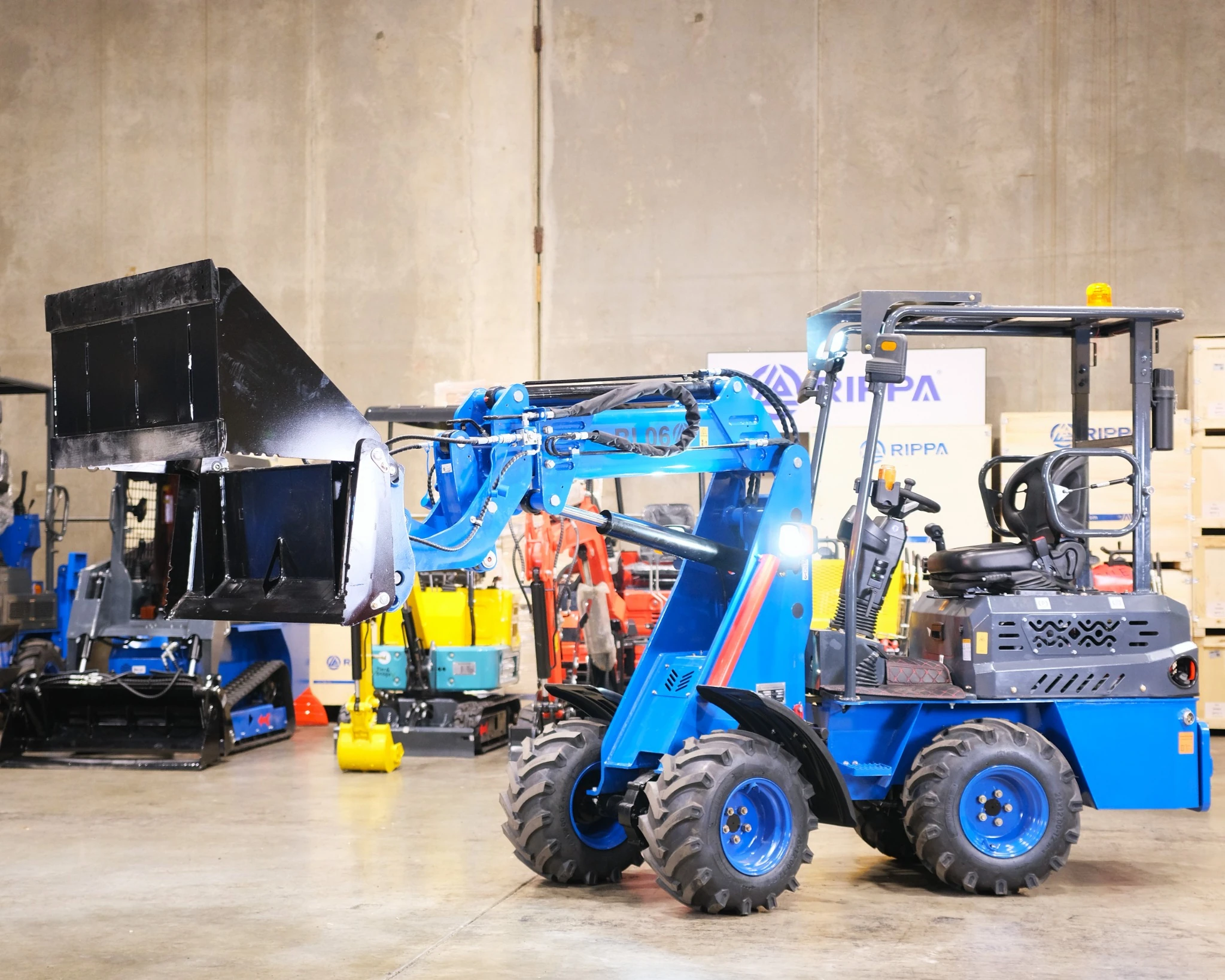

Rippa RL-06 4-in-1 bucket in dump position
Rippa RL-06 4-in-1 bucket open in raised position

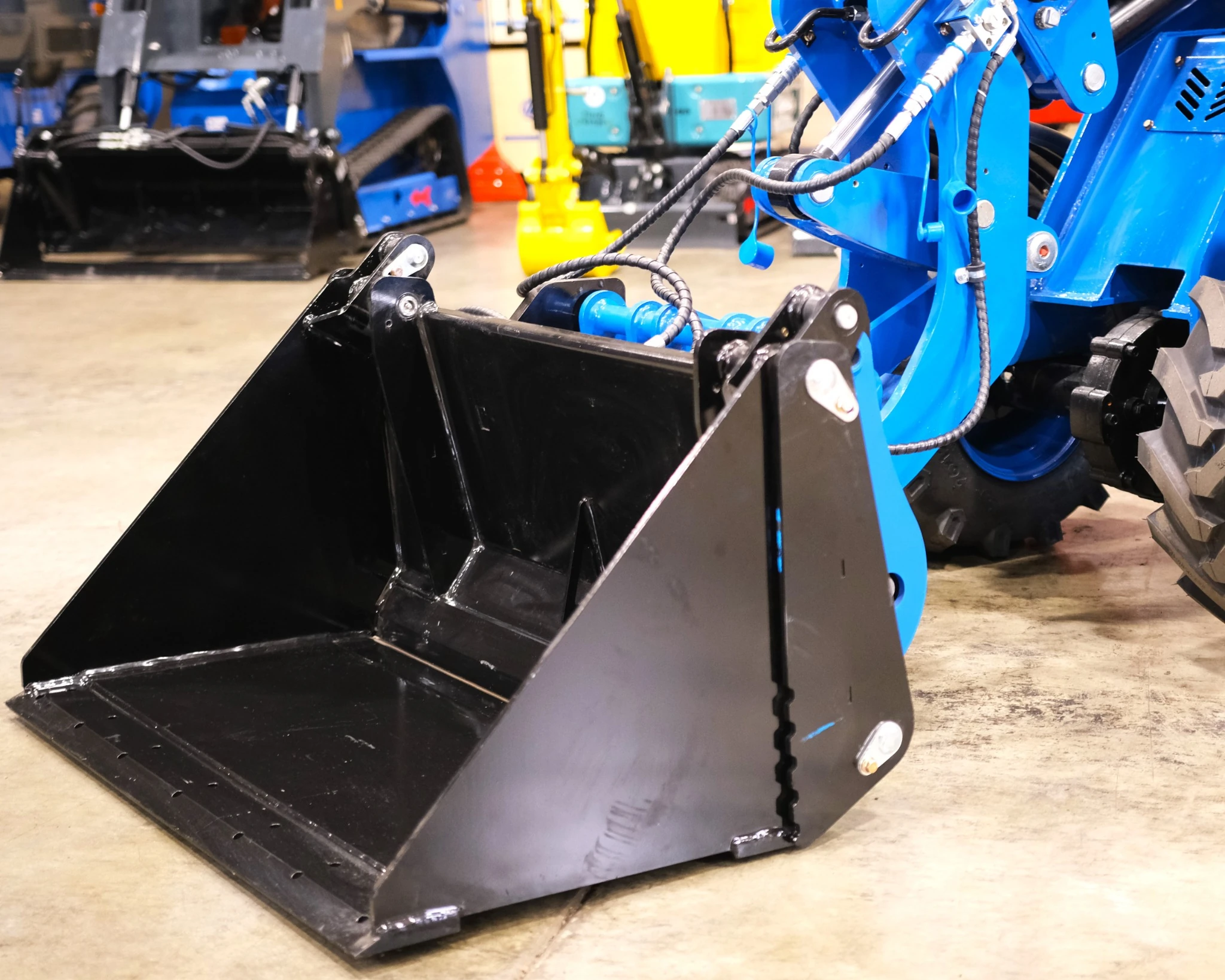

Rippa RL-06 4-in-1 multi-function bucket front close-up

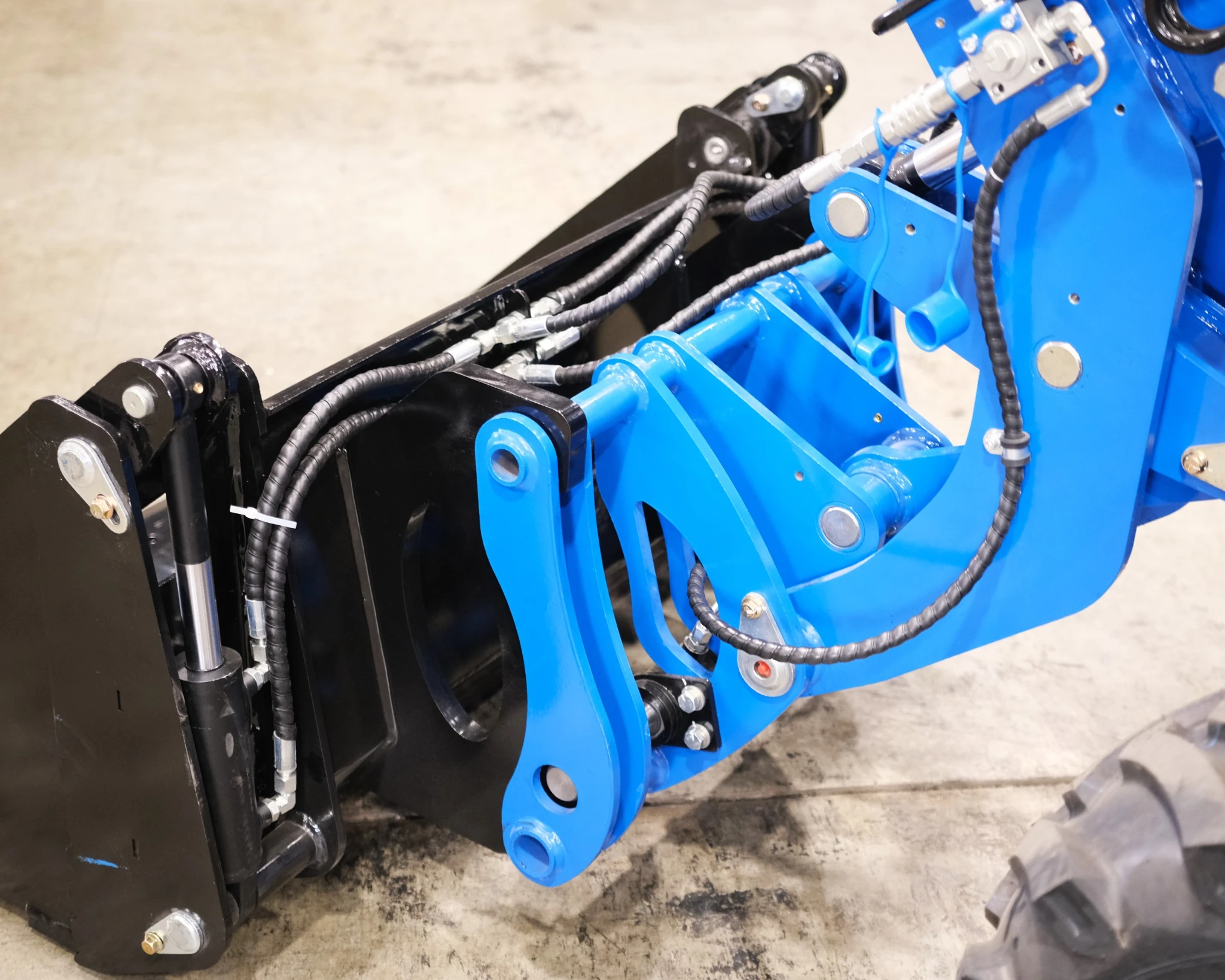

Rippa RL-06 quick connect auxiliary hydraulic system close-up
Rippa RL-06 operator cab frame with LED work lights and mirrors
Rippa RL-06 heavy-duty off-road tires close-up detail
Rippa RL-06 telescopic hydraulic arm with RL06 marking

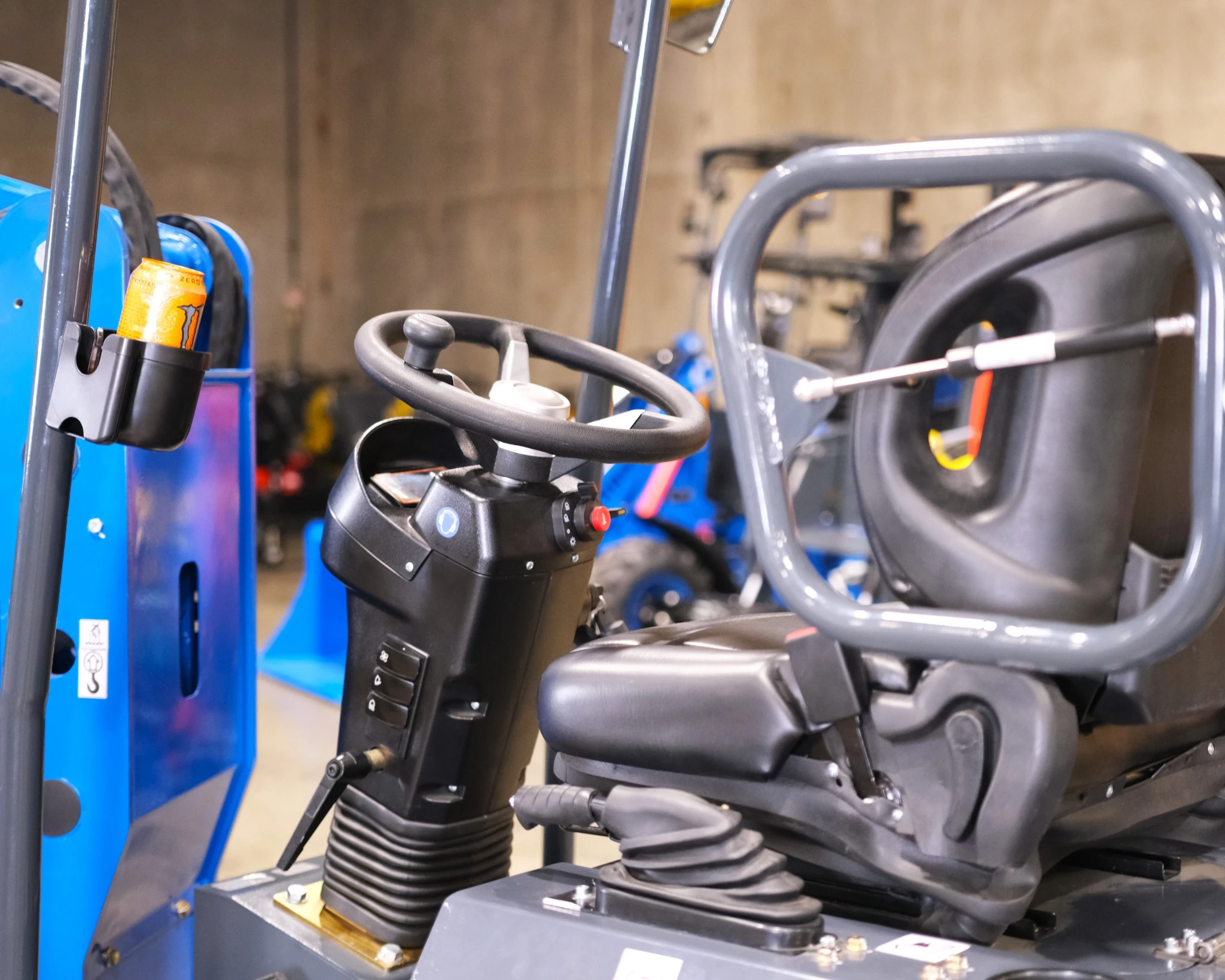

Rippa RL-06 suspension seat and steering control system

Rippa RL06 Wheel Loader – Telescopic Arm – D1105 Kubota Diesel

Original price was: $23,950.00.Current price is: $17,950.00.

Rippa RD-06 Wheeled Loader

Compact size. Kubota power. Telescopic reach. 4-in-1 versatility.
The Rippa RD-06 wheeled loader is powered by a 25HP Kubota D1105 diesel engine.
Comes equipped with a hydraulic 4-in-1 bucket for maximum jobsite versatility.
Designed for landscaping, farming, snow removal, and material handling,
it delivers strong lifting performance in a maneuverable articulated platform.

Key Features:

• 25HP Kubota D1105 3-cylinder diesel
• Hydraulic 4-in-1 bucket included (clamshell / dozer / grapple / standard bucket)
• Telescopic boom design
• 3,795 lb operating weight
• 1,320 lb maximum load capacity
• Articulated 4WD drive
• Hydraulic attachment ready

📞 Call or Text +1-425-677-5007 to schedule a demo in Tukwila

Categories: , Brand:

Description

Rippa RL-06 Telescopic Wheeled Loader

Compact Size. Extended Reach. Serious Capability.

The Rippa RL-06 is a compact articulated wheeled loader designed for contractors, landscapers, property owners, and farmers who need maneuverability without sacrificing lifting performance.

Powered by the reliable Kubota D1105 3-cylinder diesel engine (25HP), the RL-06 delivers smooth torque, fuel efficiency, and long service life. Water-cooled and built for durability, this engine is trusted worldwide in compact equipment applications.

Telescopic Arm Advantage

Unlike standard compact loaders, the RL-06 features a telescopic boom that significantly increases loading height and reach. It easily loads dump trucks, trailers, and elevated platforms.

Strong Lifting Performance

• Rated safe load: 660 lb
• Maximum load mass: 1320 lb
• Rated bucket capacity: 8.1 ft³
• High-pressure hydraulic system (18 MPa rated, 20 MPa max)

Whether you’re moving soil, gravel, feed, snow, pallets, or debris, the RL-06 is built to handle daily work efficiently.

Built for Maneuverability

The articulated steering system provides tight turning capability (94 in turning radius), making it ideal for:

• Barns and farms
• Residential job sites
• Landscaping projects
• Narrow access areas
• Snow removal

Attachment Versatility

Compatible with multiple hydraulic attachments, including:

• Standard bucket
• Pallet forks
• Snow blade
• Grapple
• Auger
• Sweeper

The hydraulic system includes a closed plunger travel pump and gear working pump for reliable flow and performance.

1-year manufacturer’s parts warranty – Lifetime product support –  Kubota engine backed by Kubota’s factory warranty * See warranty booklet for full terms & conditions



Specifications – Rippa RL-06 | Wheeled loader

Basic Parameters

Specification Value
Operating Weight 3,795 lb
Rated Safe Load 660 lb
Maximum Load Capacity 1,320 lb
Bucket Capacity 8.1 ft³
Travel Speed 0 – 5 mph
Gradeability 25%
Ground Pressure 73.7 psi
Turning Radius 94.5 in
Wheelbase 40 in
Minimum Ground Clearance 6.1 in

Engine – Kubota D1105

Specification Value
Engine Brand Kubota
Engine Model D1105
Engine Type 3-Cylinder Diesel
Horsepower 25 HP
Rated Power 18.4 kW
Rated Speed 3000 rpm

Hydraulic System

Specification Value
Travel Pump Type Closed Plunger Pump
Travel Pump Max Flow 25.4 GPM
Working Pump Type Gear Pump
Working Pump Max Flow 11.1 GPM
Rated System Pressure 2,610 psi
Maximum System Pressure 2,900 psi
Travel Motor BM5-315

Dimensions (Transport)

Specification Value
Length with Bucket 143 in
Length without Bucket 123 in
Width 45.3 in
Height 90.6 in

In stock now in Tukwila and ready for immediate Pickup.

📞 Call or Text +1-425-677-5007 to schedule a demo in Tukwila
