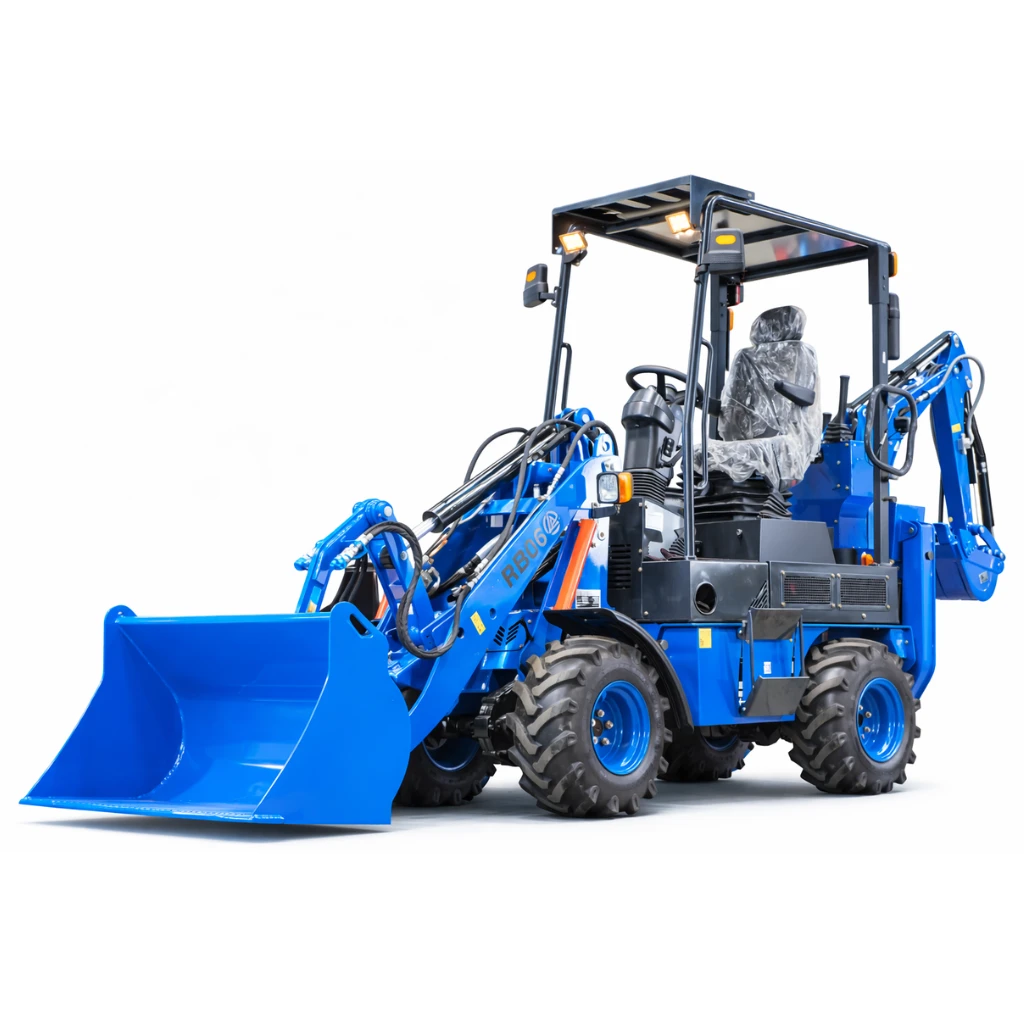

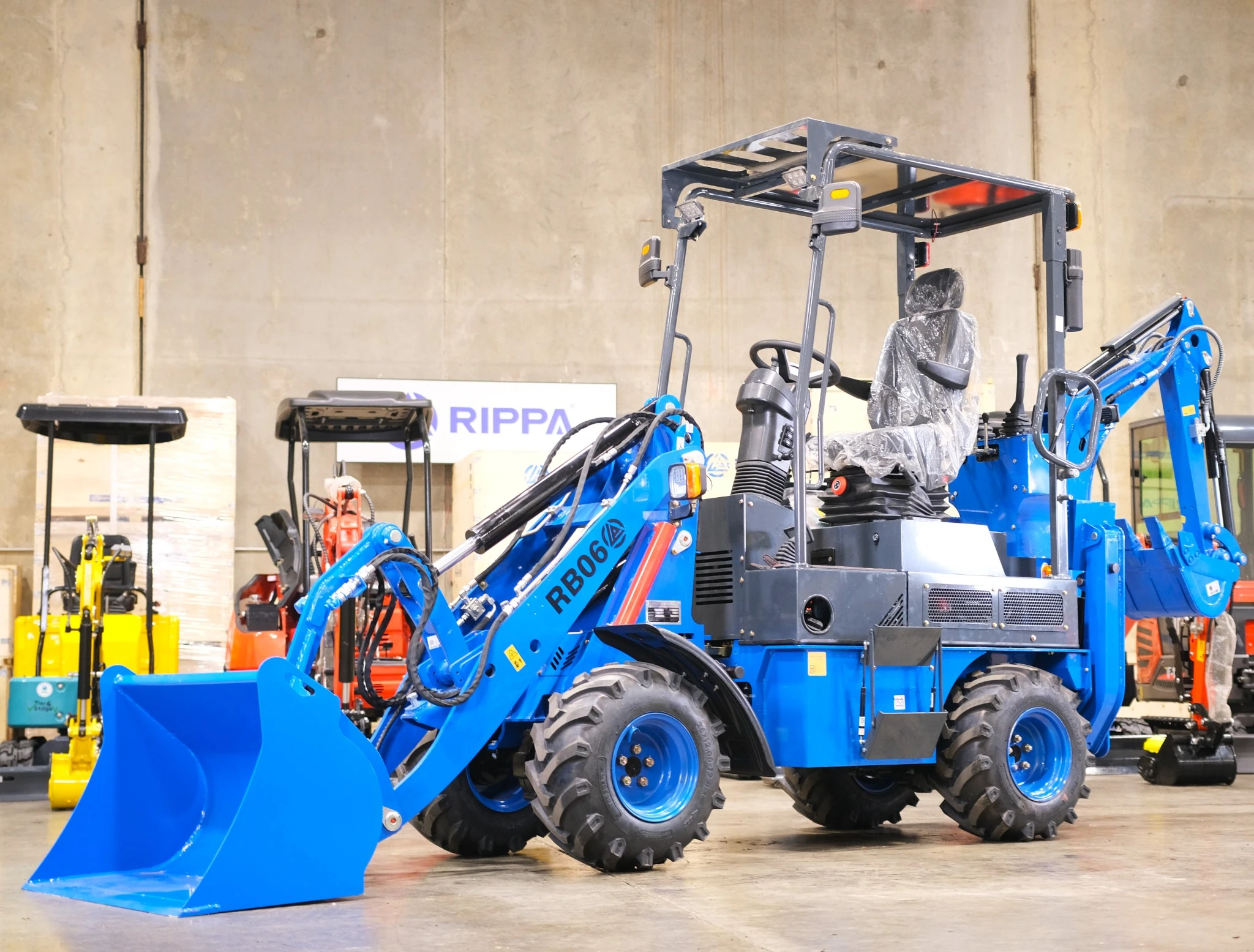

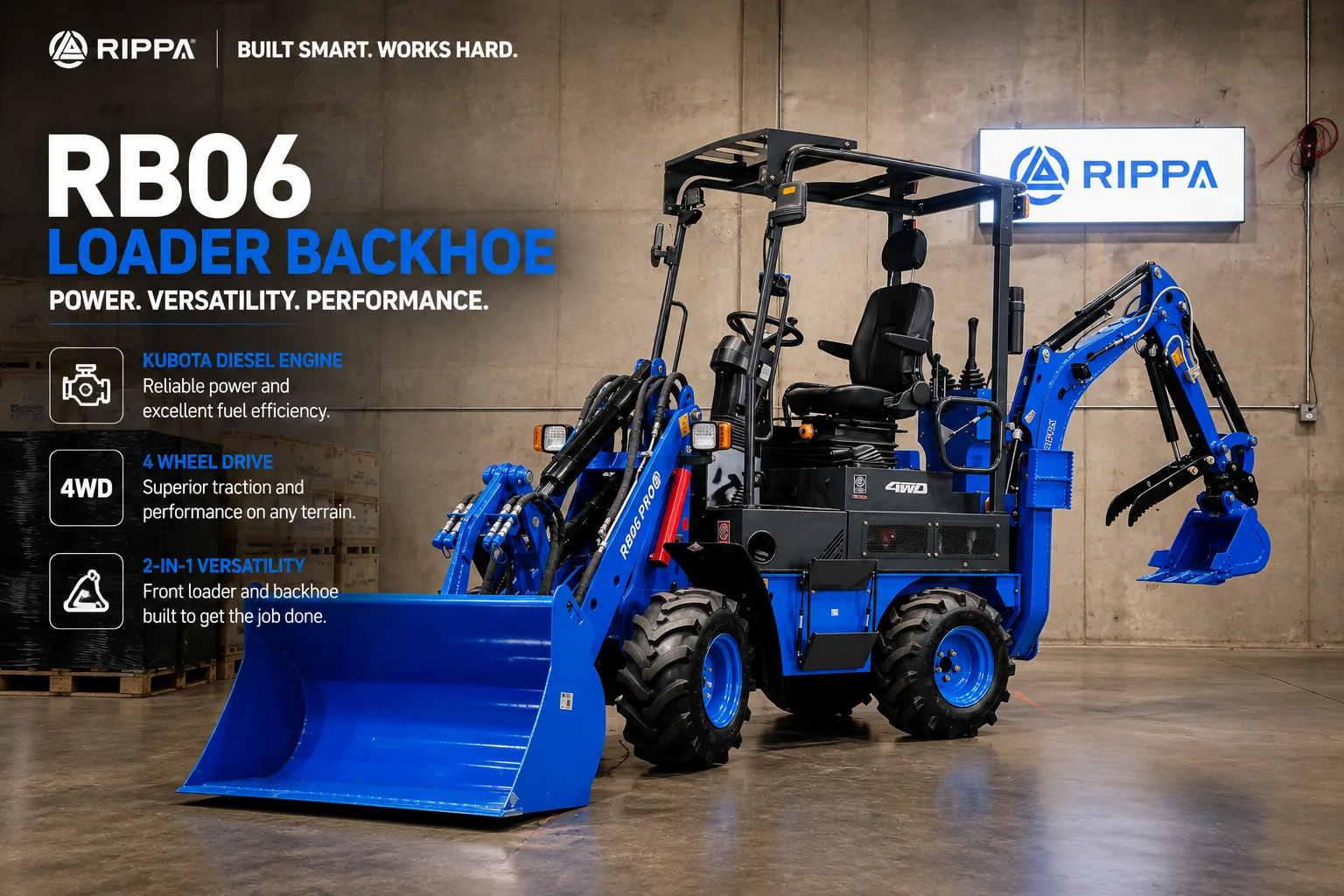

Rippa RB06 25HP Kubota Loader Backhoe – Compact Articulated Powerhouse

The Rippa RB06 25HP Kubota Loader Backhoe is built for contractors and property owners who want one machine that replaces several.

Dig. Load. Grade. Trench. Move material. All with a single compact unit.

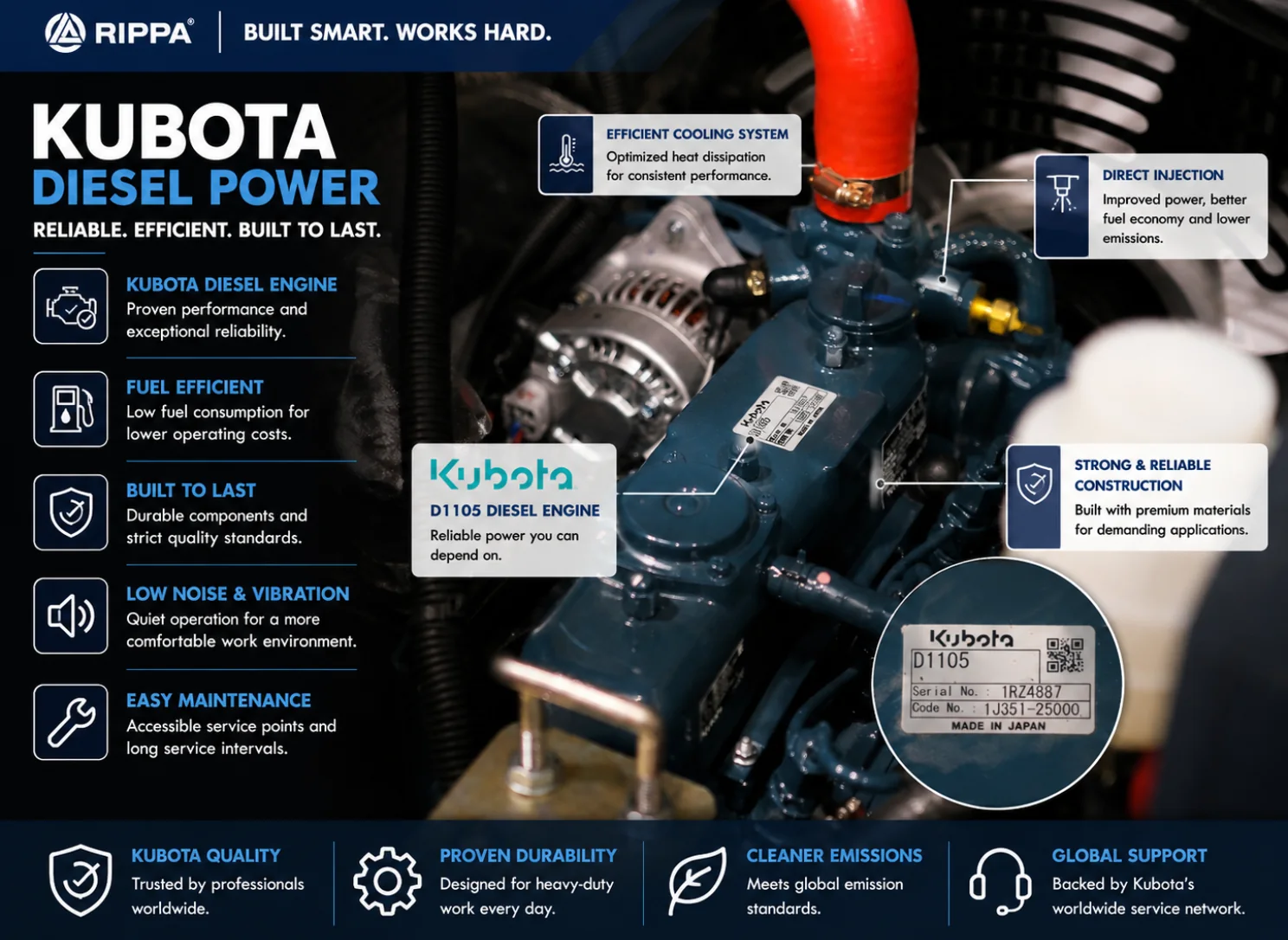

Powered by the proven Kubota D1105 25HP diesel engine, the RB06 delivers reliable torque, fuel efficiency, and long-term durability. It’s a commercial-grade engine built to work every day.

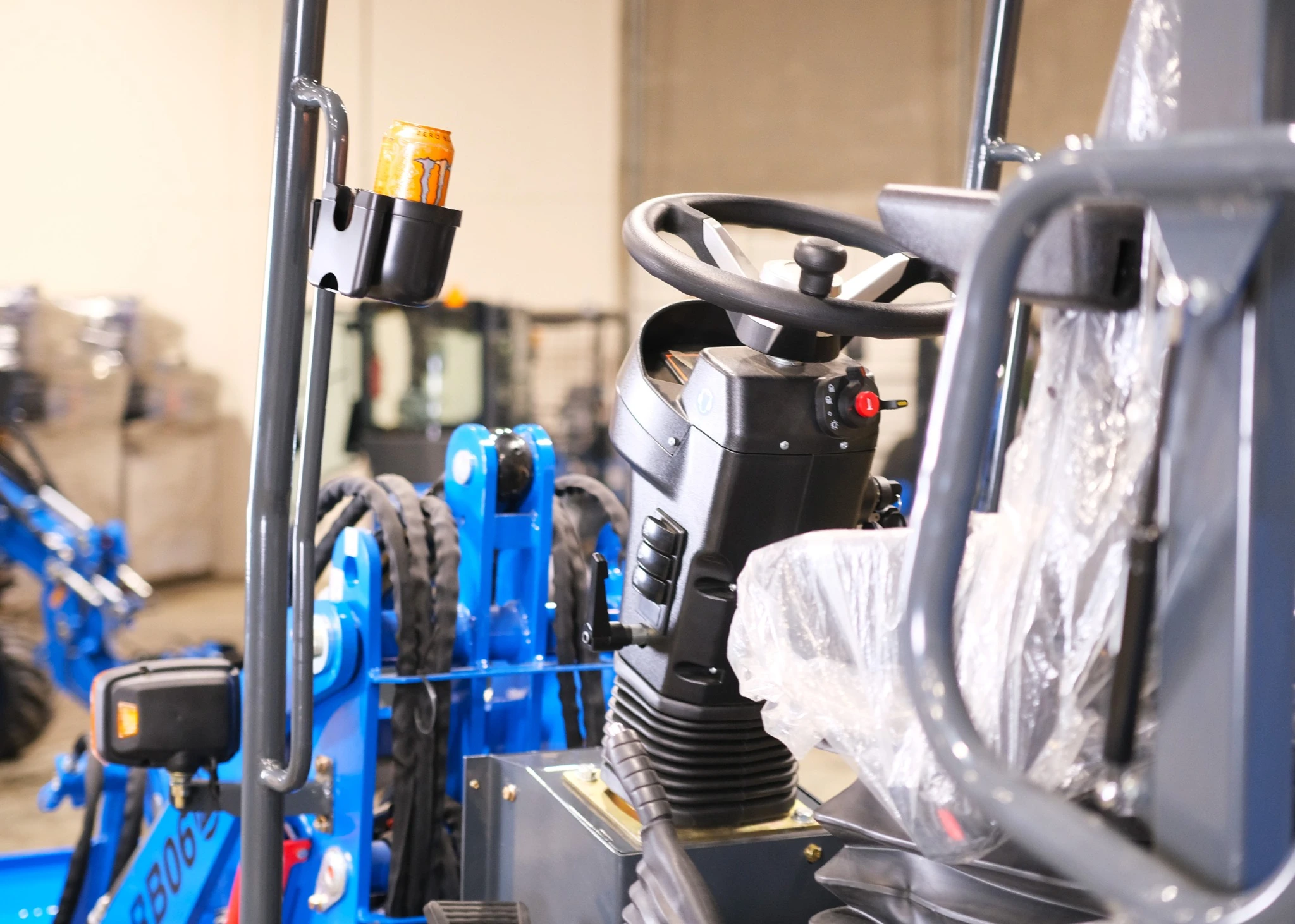

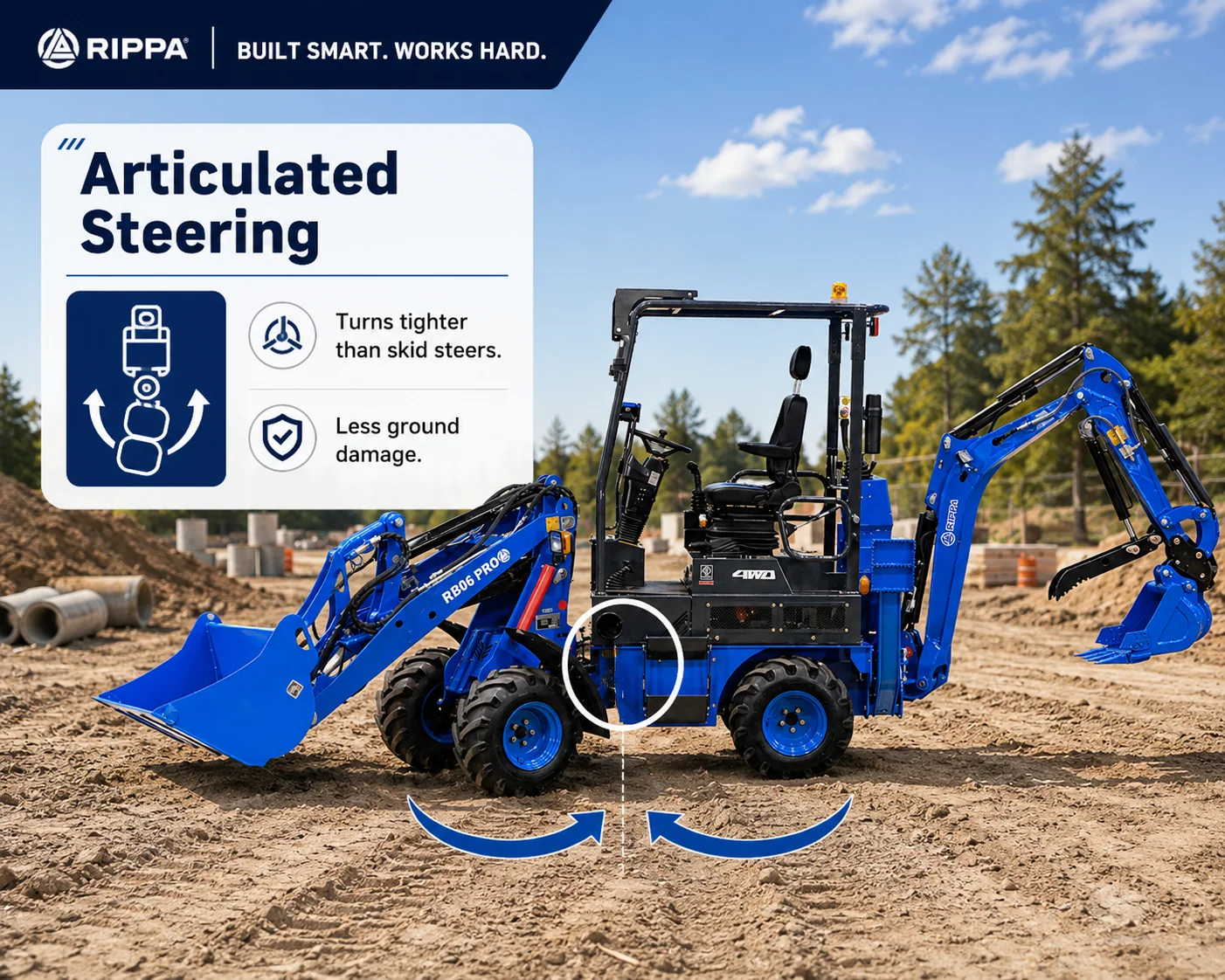

The articulated steering system gives you a tight turning radius and excellent control in confined spaces. Perfect for residential projects, landscaping jobs, and tight construction sites.

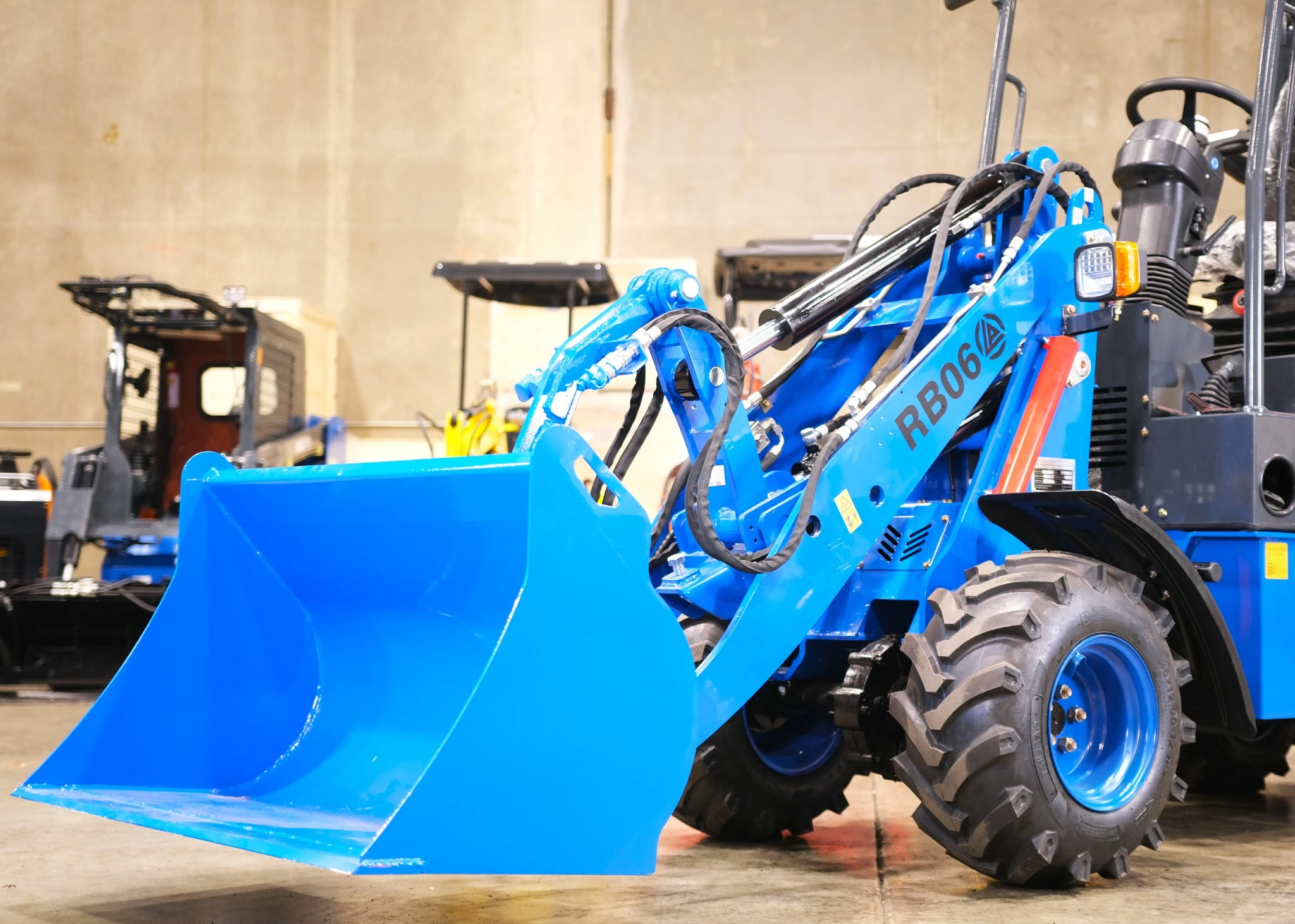

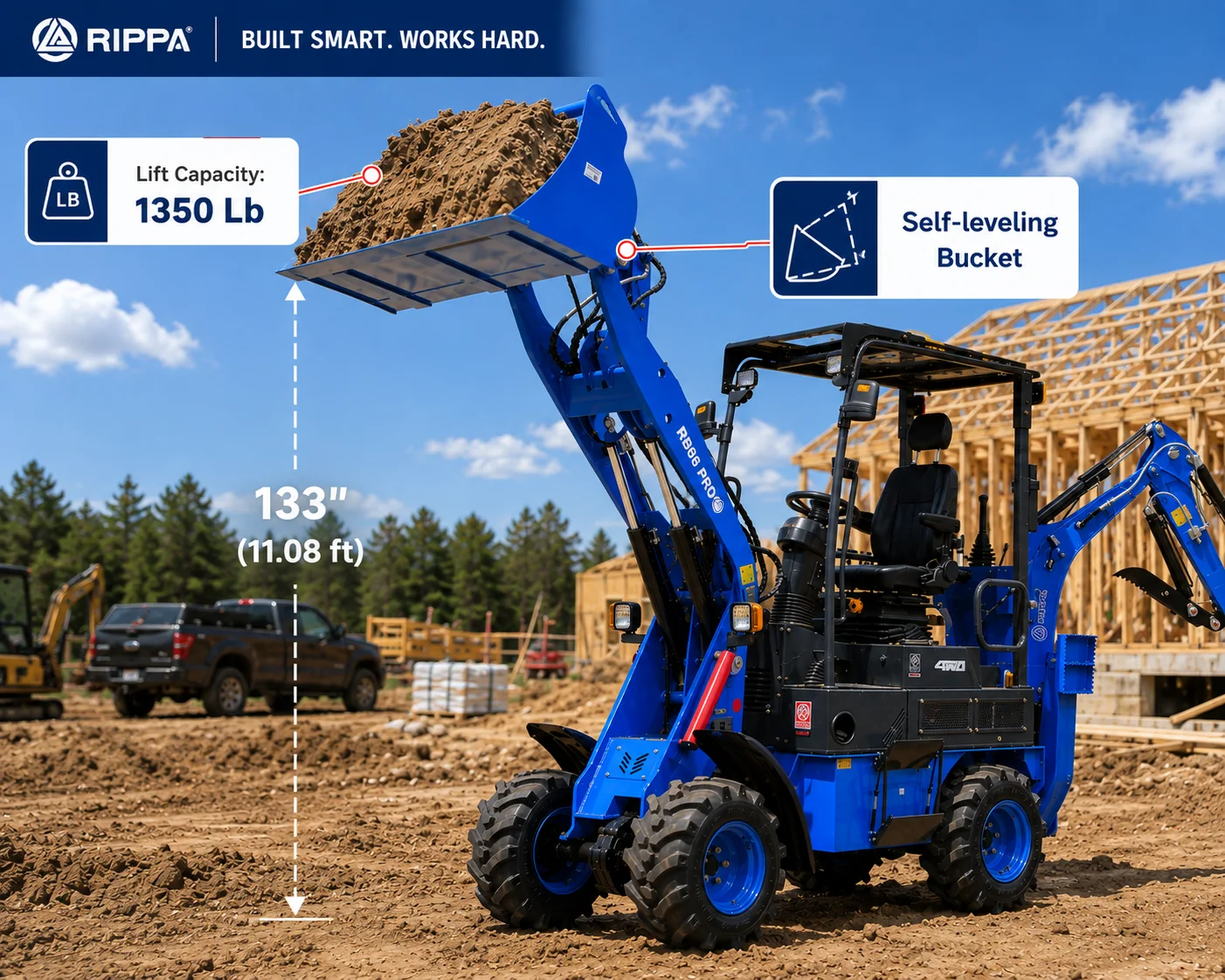

The self-leveling front bucket keeps material steady as you lift, reducing spillage and improving productivity. Faster cycles mean more work done per day.

1-year manufacturer’s parts warranty – Lifetime product support –  Kubota engine backed by Kubota’s factory warranty * See warranty booklet for full terms & conditions

---

Rippa RB06 Technical Specifications

Performance Data
Rated Bucket Loading Capacity	0.23 m³ / 8.12 ft³
Rated Bucket Excavation Force	0.036 t / 3.1 kN
Maximum Charging Mass	600 kg / 1323 lb
Maximum Discharge Height	2060 mm / 81 in
Maximum Loading Height	3380 mm / 133 in
Maximum Excavation Depth	2500 mm / 98 in
Maximum Excavation Height	3200 mm / 126 in
Dimensions
Overall Dimensions (L×W×H)	5180 × 1150 × 2600 mm / 204 × 45 × 102 in
Bucket Width	1150 mm / 45 in
Wheelbase (Front)	1730 mm / 68 in
Wheelbase (Rear)	840 mm / 33 in
Minimum Ground Clearance	155 mm / 6 in
Minimum Turning Radius	2400 mm / 94 in
Operating Parameters
Operating Weight	2325 kg / 5134 lb
Maximum Driving Speed	12 km/h / 7.46 mph
Gradeability	25°
Hydraulic System
Main Pump Model	PGP5114GLP
Main Pump Brand	Tianjin Walking
Rated Hydraulic Pressure	18 MPa / 2610 psi
Hydraulic Oil Tank Capacity	28 L / 8.99 gal
Fuel System
Fuel Tank Capacity	18 L / 6.04 gal
Engine

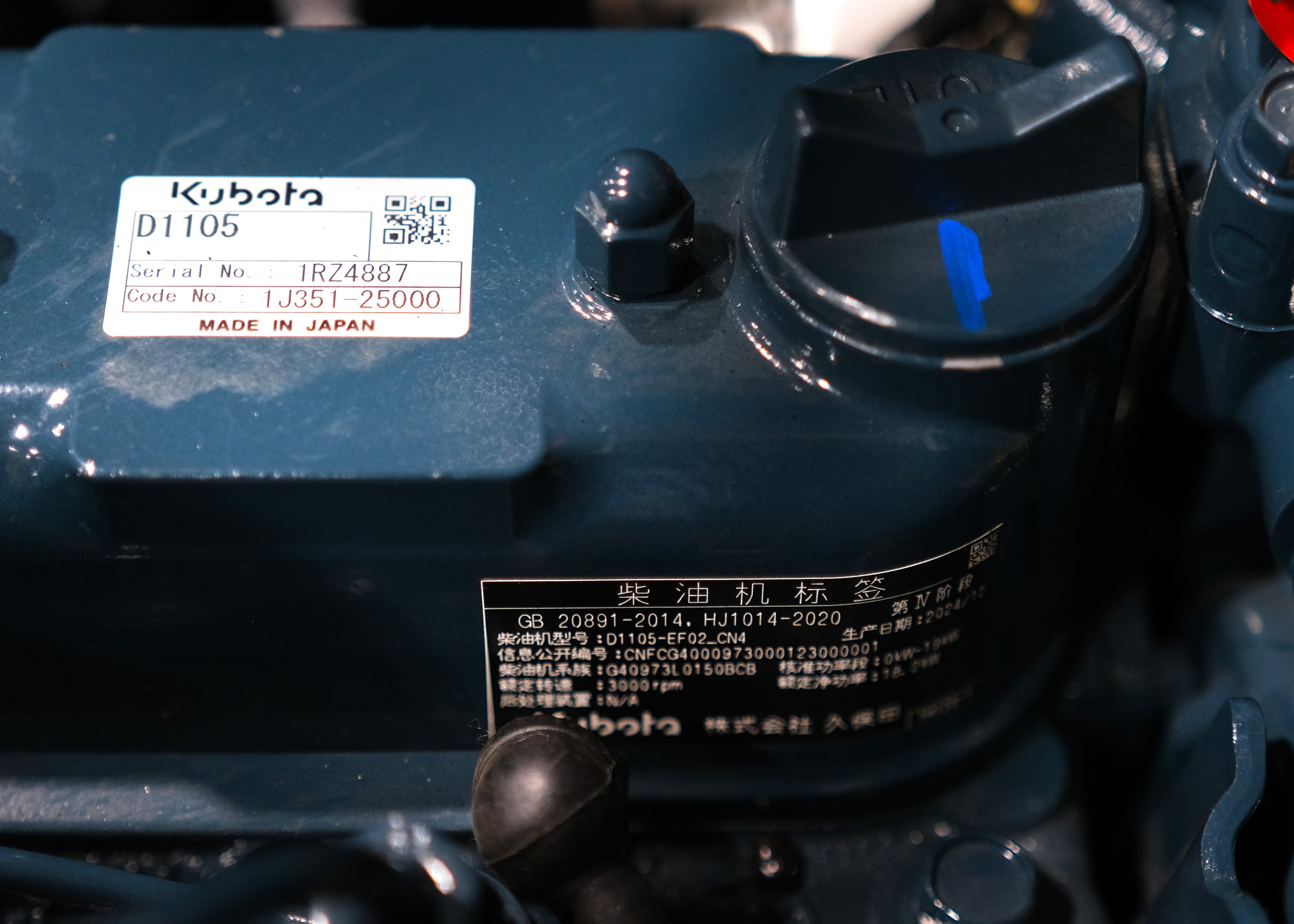

Engine Model	Kubota D1105
Engine Type	3-Cylinder Diesel
Rated Speed	3000 rpm
Rated Power	18.4 kW (≈25 HP)
Cooling Method	Water-Cooled
Fuel Type	Diesel

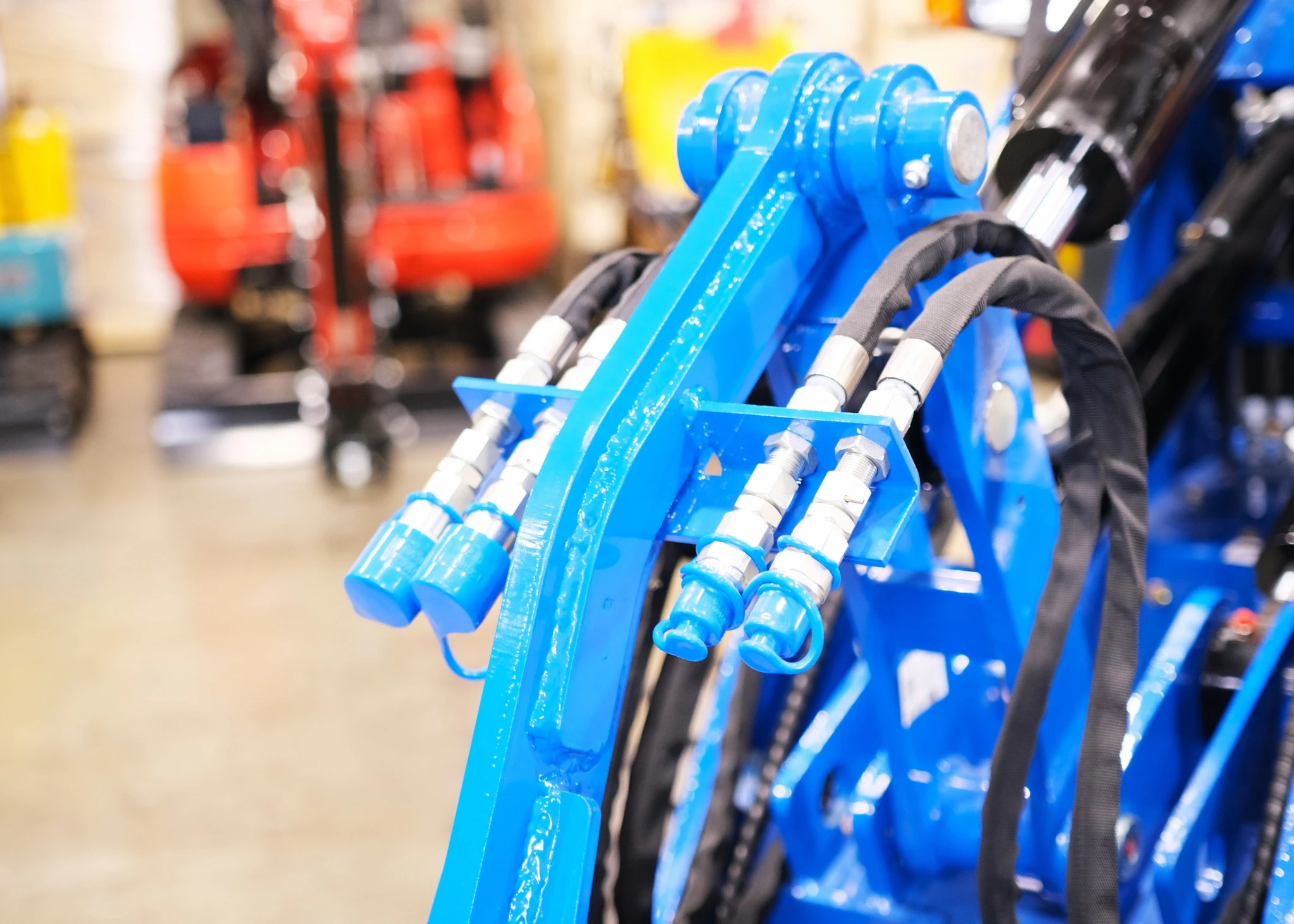

High-flow hydraulics allow you to run attachments with confidence — and here’s where the RB06 stands out:

You can use mini excavator attachments or loader attachments.

That means: • Augers
• Hydraulic breakers
• Grapples
• Trenching buckets
• Pallet forks
• Snow blades
• Specialty hydraulic tools

Expand your capabilities without buying another machine with Rippa RB-06

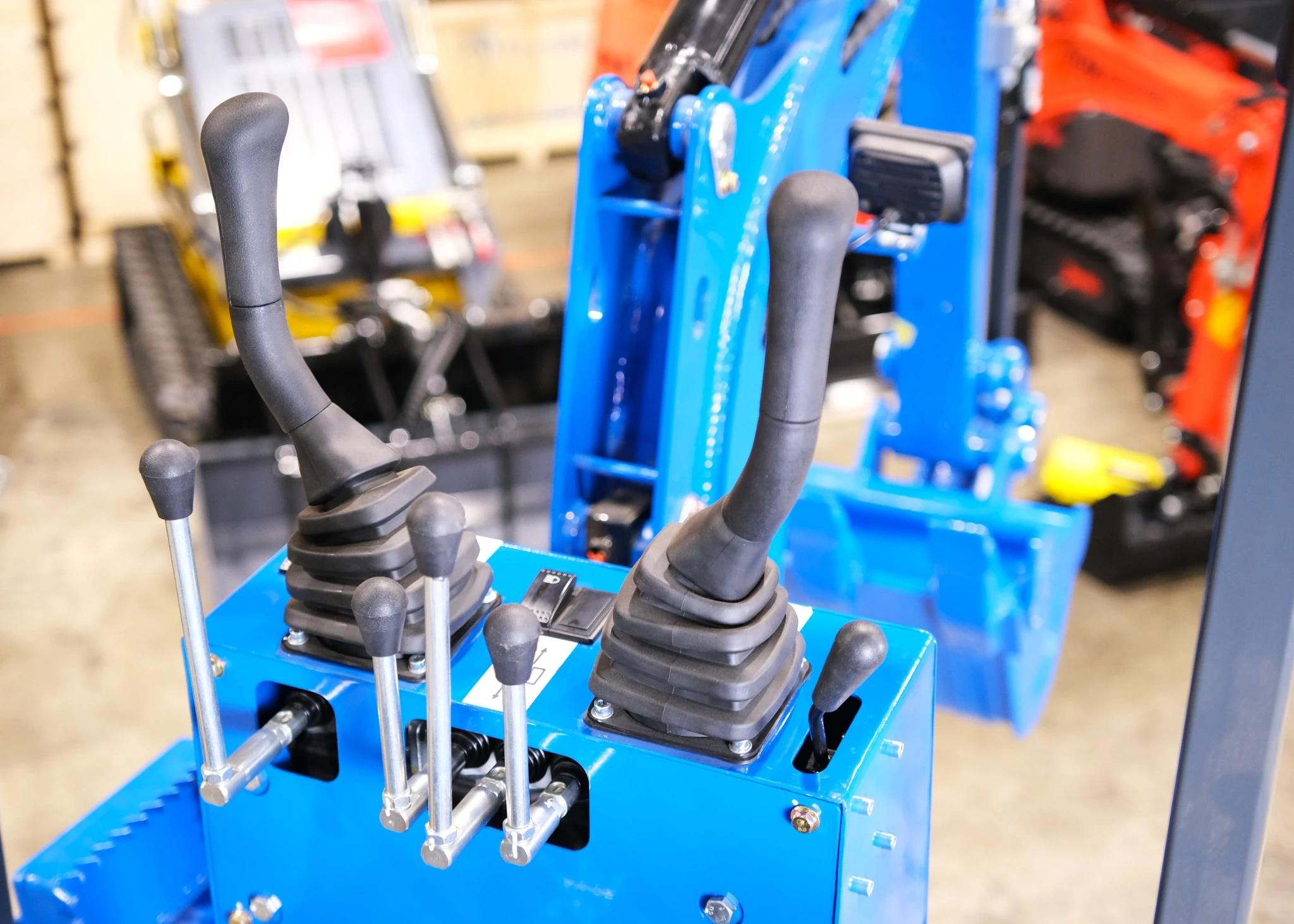

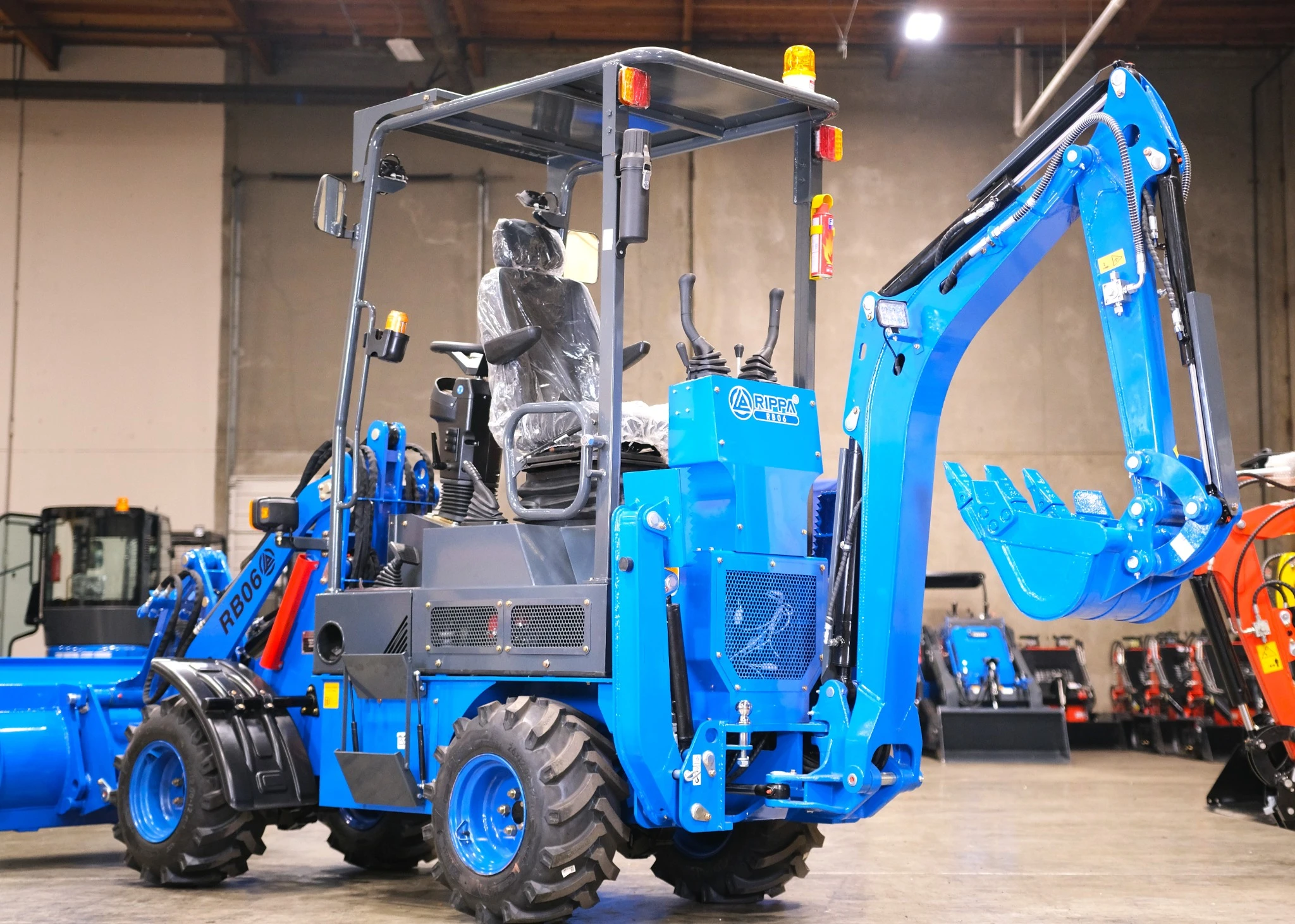

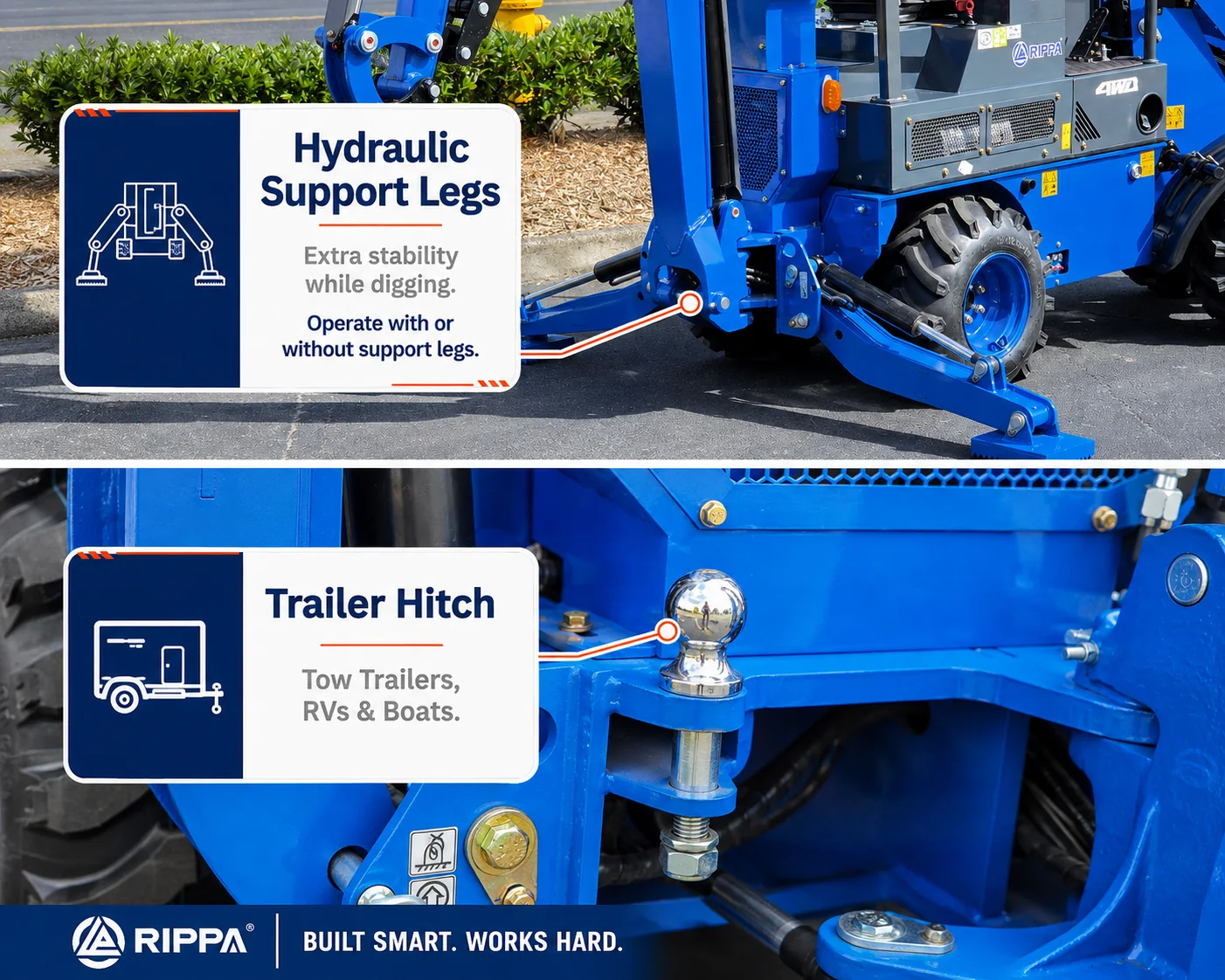

The rear backhoe delivers strong digging performance and can operate with or without support legs, depending on the application. Smooth multi-lever controls provide precision and control.

This machine is ideal for: • Landscaping contractors
• Utility trenching
• Drainage installation
• Property maintenance companies
• Farm and acreage work
• Snow removal
• Small construction crews

One machine. Multiple revenue streams.

Compact enough for residential access. Strong enough for commercial work.

In stock now in Tukwila and ready for immediate Pickup. Call to see a demo: 425-677-5007
