Dig Master DM14 Mini Skid Steer Loader
The Dig Master DM14 mini skid steer combines a Rato 420cc gasoline engine, triple-pump hydraulics and two auxiliary hydraulic circuits in a compact tracked loader. Move soil, mulch and gravel, grade smaller work areas, and use compatible attachments for landscaping and property maintenance.
Compact Equipment for Everyday Property Work

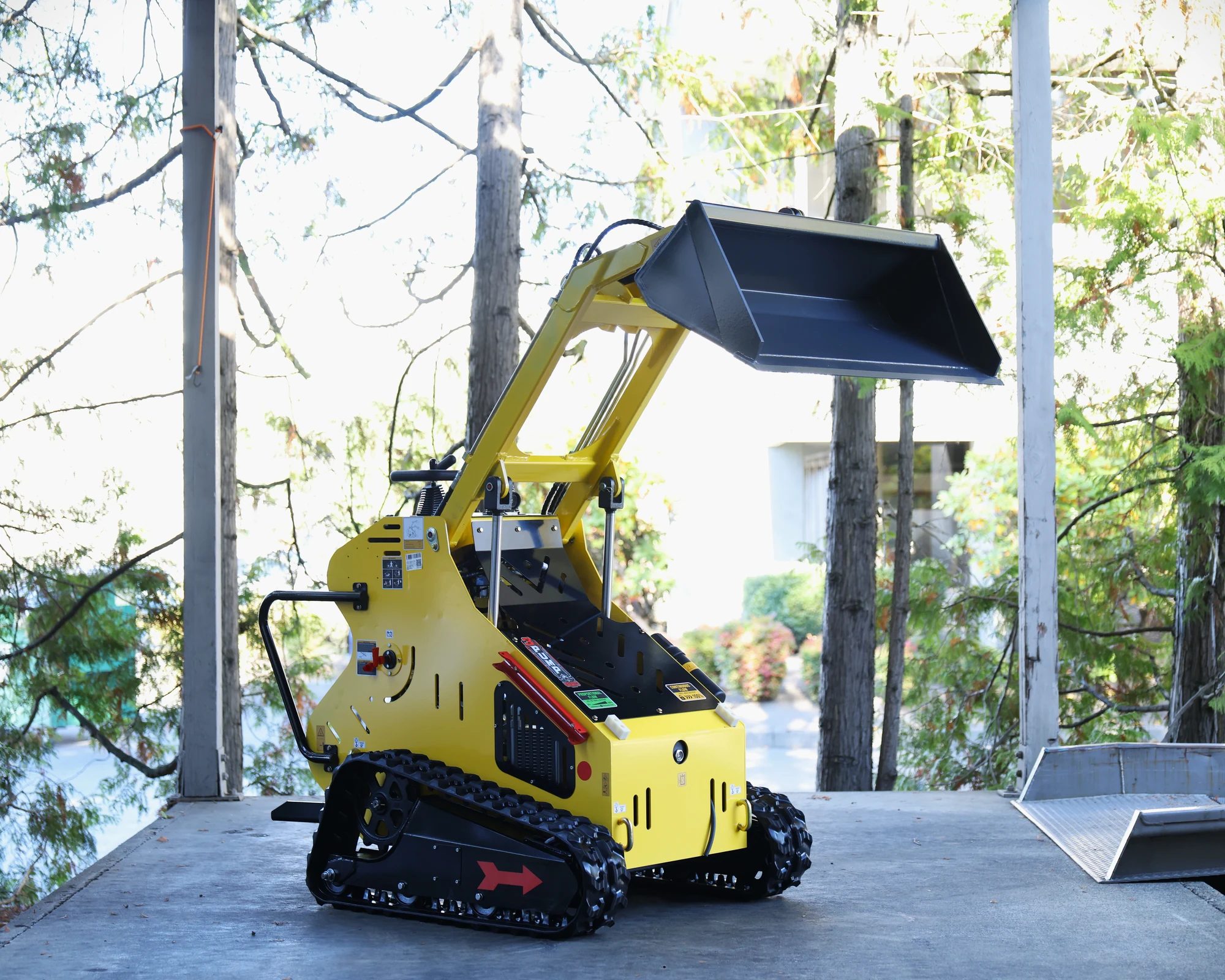

A stand-on operating platform and rubber tracks make the DM14 practical for yards, landscaping projects and smaller jobsites. The yellow-and-black machine is sold under the Dig Master brand with the general-purpose bucket shown in the photographs.

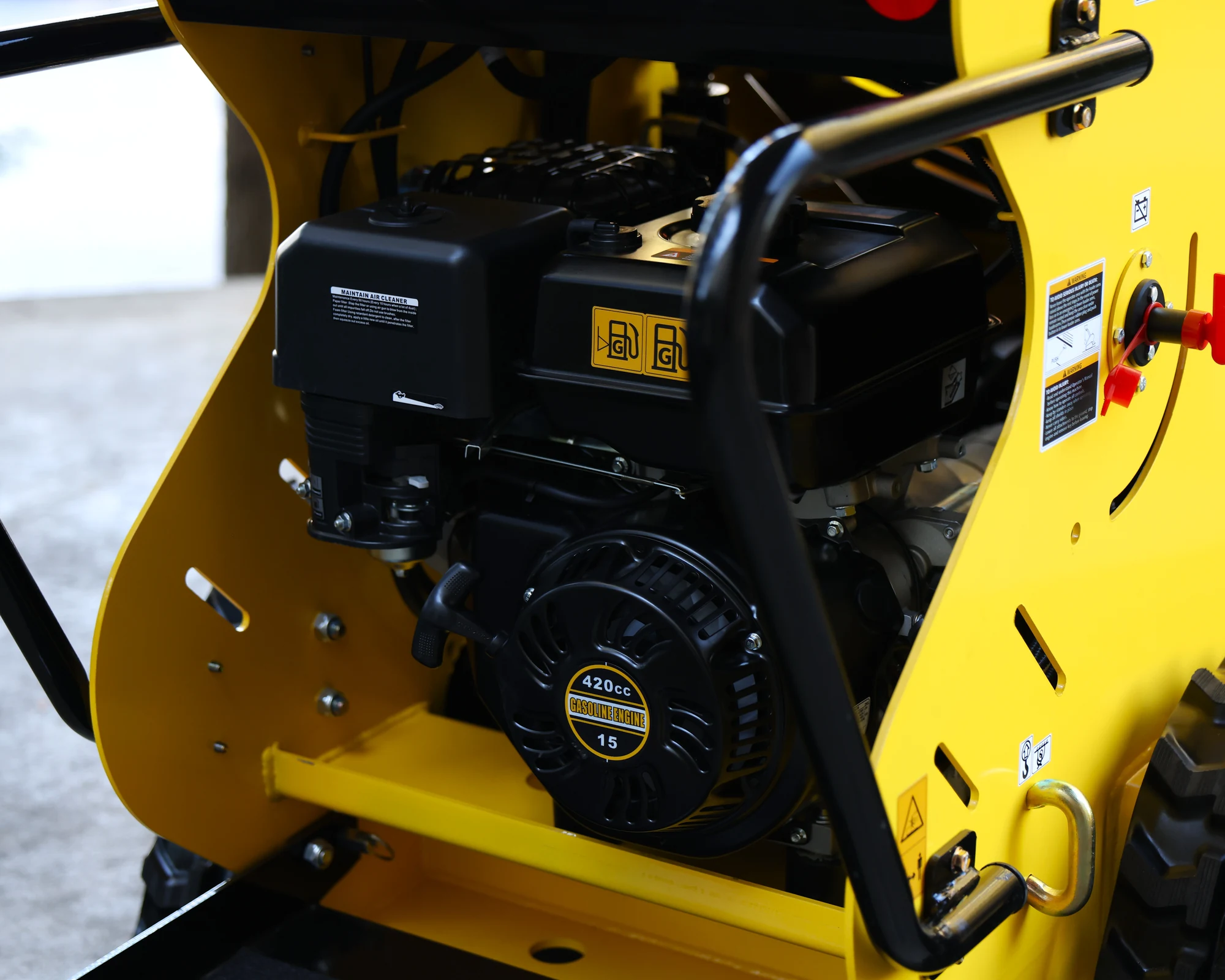

Rato 420cc Gasoline Engine
The 420cc gasoline engine powers travel, loader movement and hydraulic attachment operation. Rear access keeps routine inspection and service points within reach.
- Rato gasoline engine
- 420cc engine displacement
- Accessible rear engine compartment
- Gasoline fuel

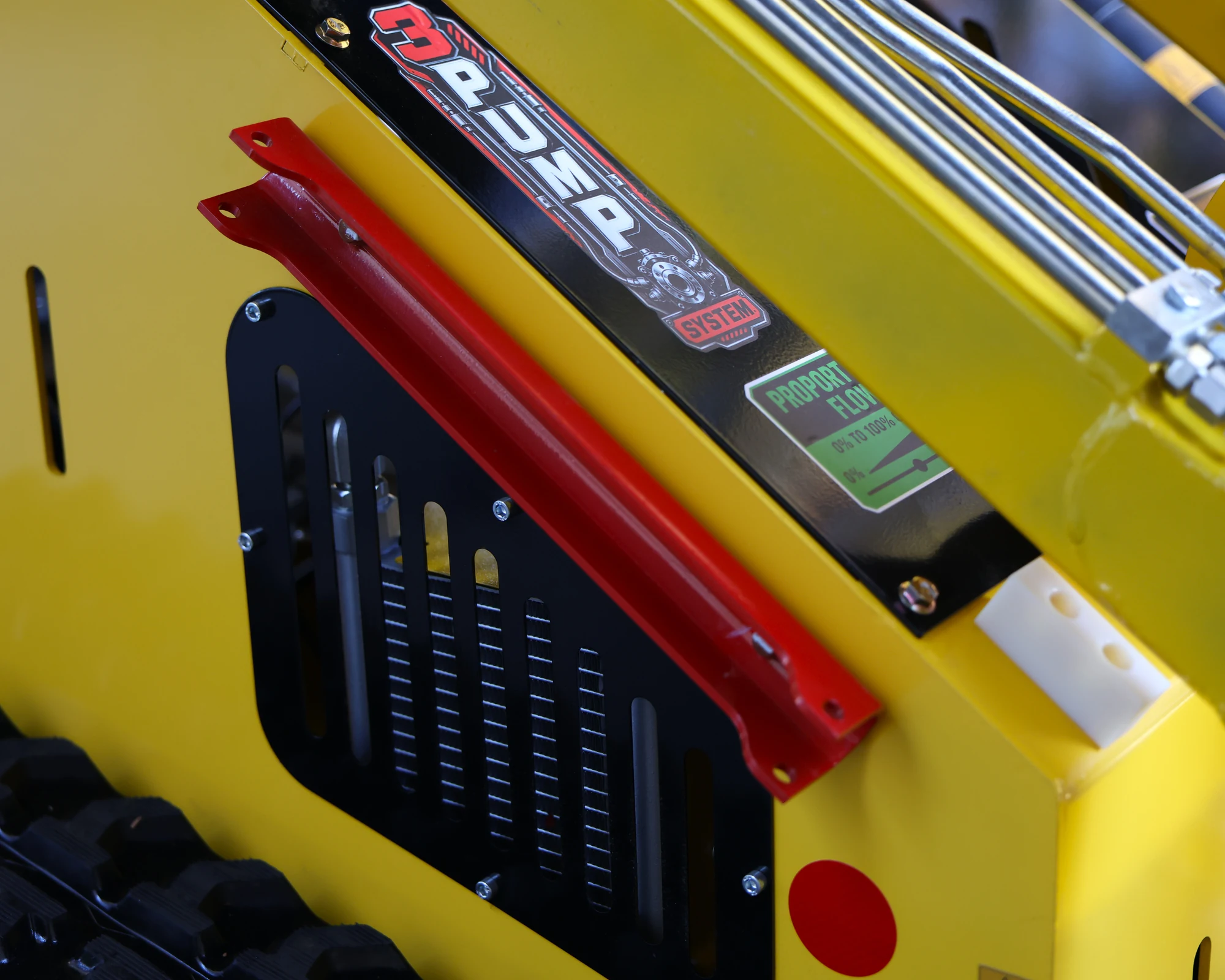

Triple-Pump Hydraulic System
The DM14 uses a three-section hydraulic pump assembly for travel, loader and auxiliary functions. Its controls allow the operator to manage machine movement and hydraulic tools from the stand-on platform.
- Three hydraulic pumps
- Loader lift and bucket tilt controls
- Hydraulic quick-connect couplers
- Attachment requirements must match available flow and pressure
Two AUX Circuits. Two Ways to Control Flow.
The operator station has separate proportional-flow and continuous-flow controls. Proportional operation gives variable hydraulic control; continuous flow supports compatible powered attachments that need sustained oil flow.
- Separate proportional and continuous-flow hydraulic controls
- Auxiliary quick-connect couplers for attachment hoses
- Check the mount, flow, pressure and return-line requirements for each attachment

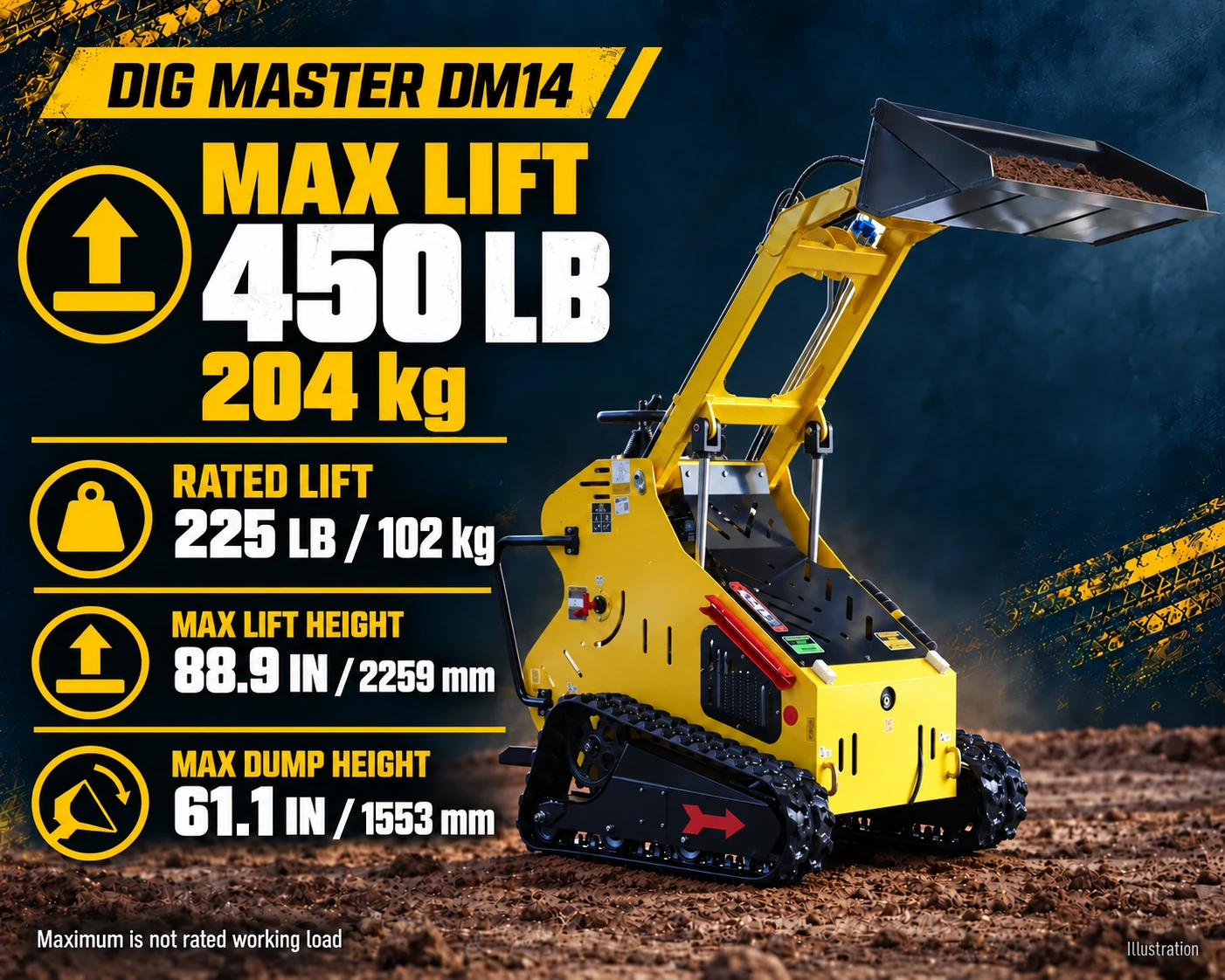

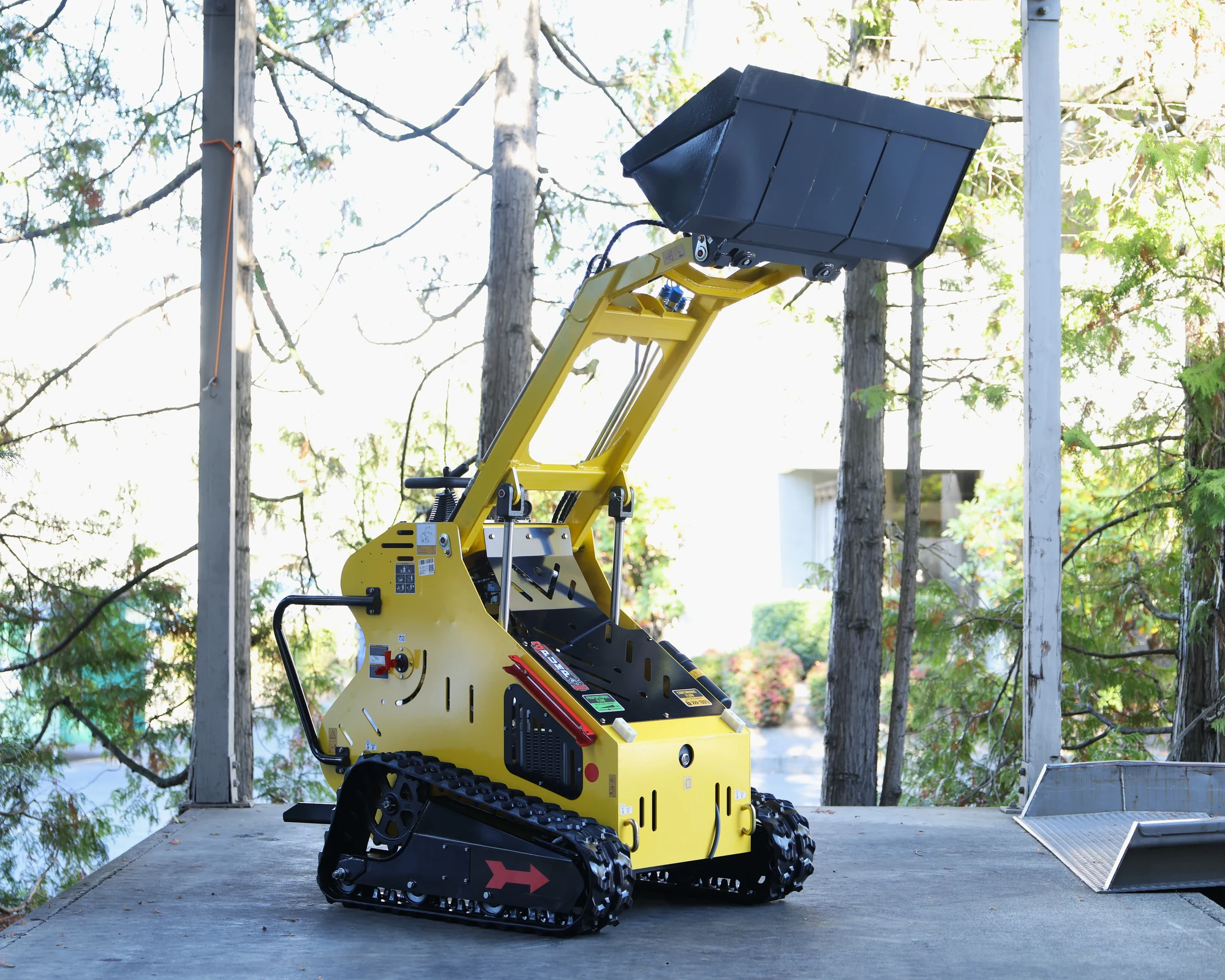

Lift Height, Dump Height & Lifting Capacity

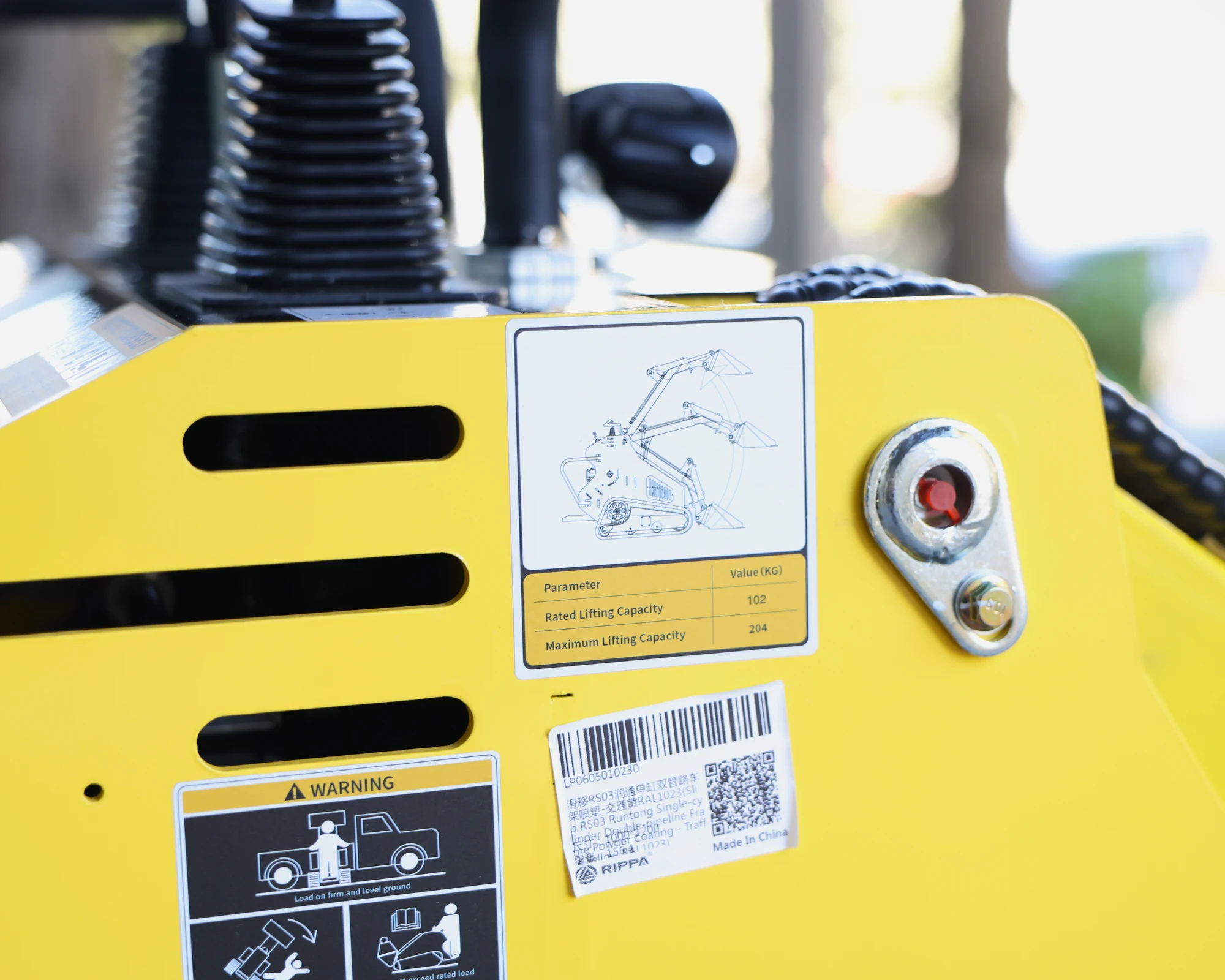

The photographed DM14 is marked with a 102 kg rated lifting capacity and a 204 kg maximum lifting capacity. These are different limits: the maximum figure is not the rated working load.
- Rated lifting capacity: approximately 225 lb / 102 kg
- Maximum lifting capacity: up to approximately 450 lb / 204 kg
- Maximum loading height: 88.9 in / 2259 mm
- Maximum dump height: 61.1 in / 1553 mm
Understanding lifting capacity: Published lifting capacities generally account for stability and specified operating conditions, rather than hydraulic lifting force alone. Allowable working load can vary with lift height, reach, attachment weight, load position and ground conditions. The maximum figure is not the rated working load, and these figures alone do not establish an allowable load at full lift height. Follow the applicable manufacturer operating instructions and load limits.

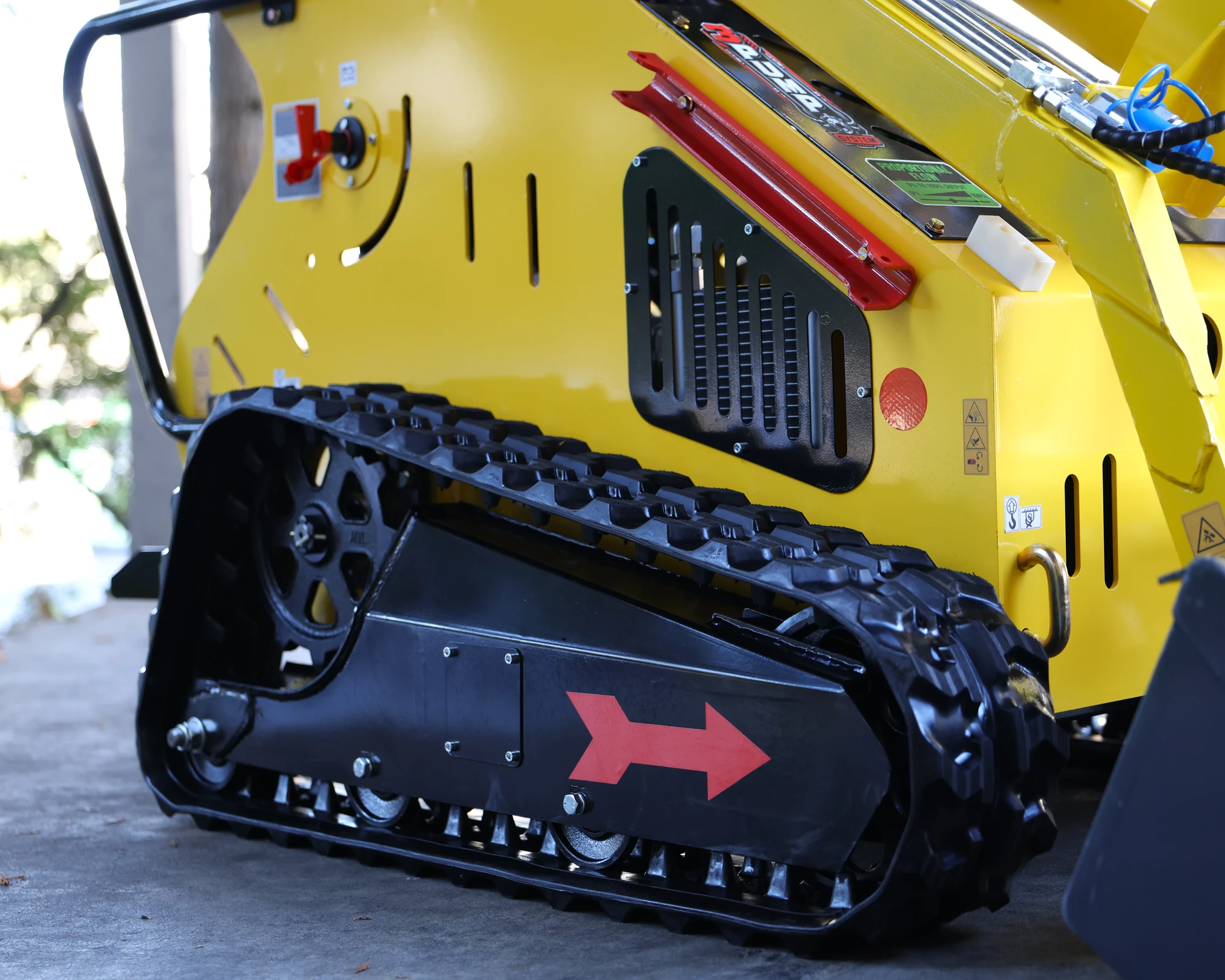

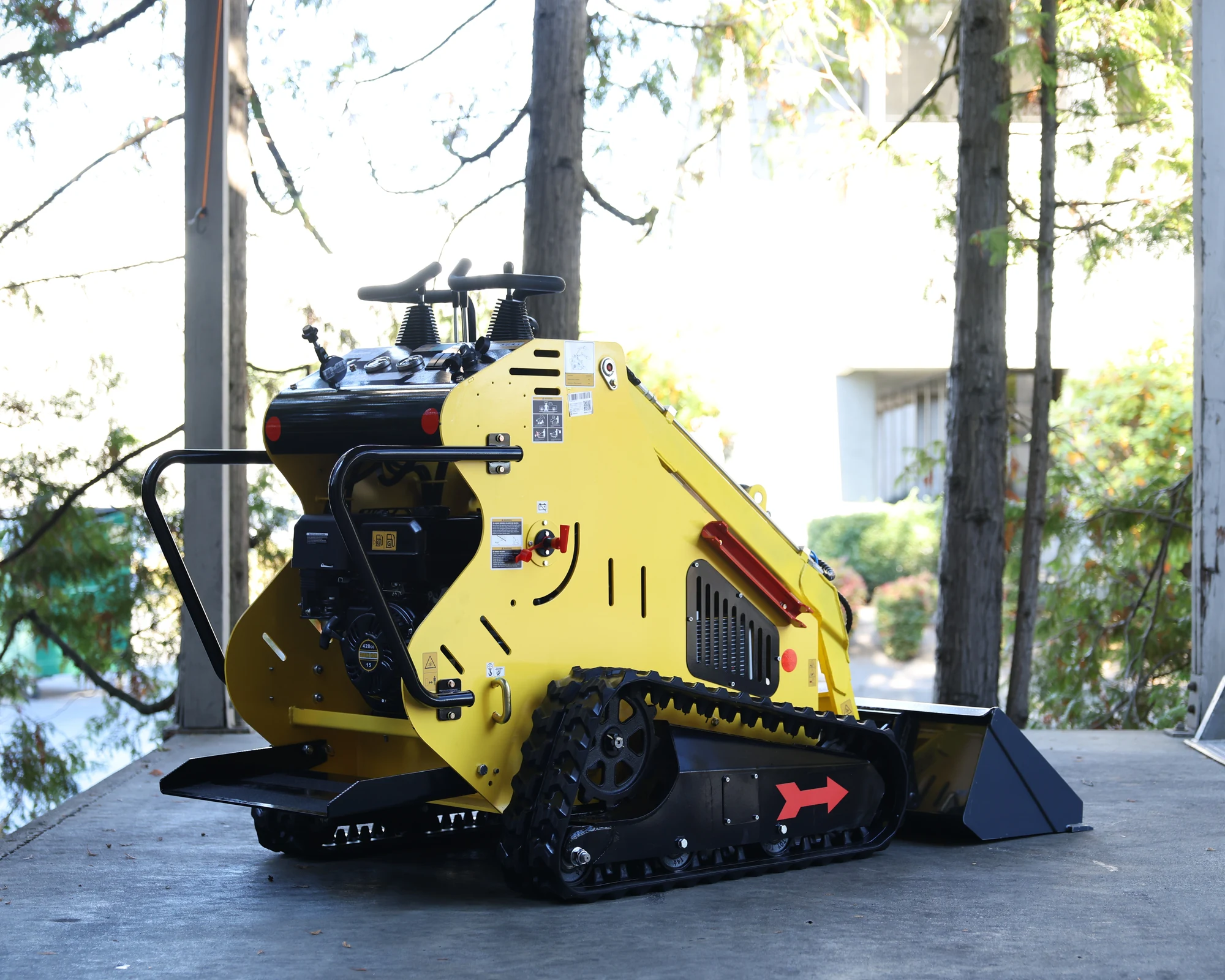

Rubber Tracks and a Stand-On Platform
The triangular rubber track undercarriage supports compact maneuvering on landscaping and property-maintenance jobs. The machine is approximately 45.3 inches wide; check the full access route before planning a job.
- Rubber tracked undercarriage
- 45.3 in / 1150 mm overall width
- Stand-on operator platform

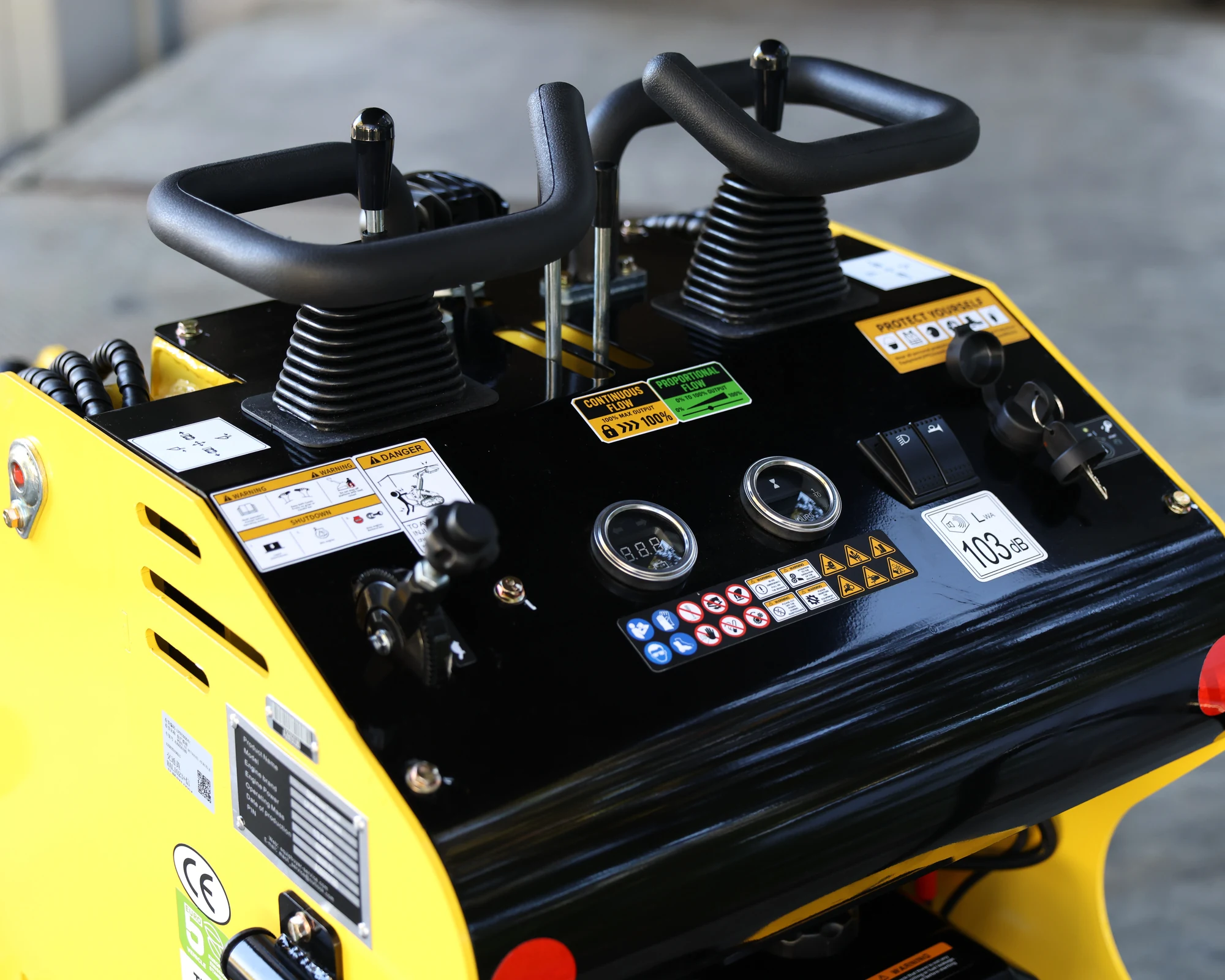

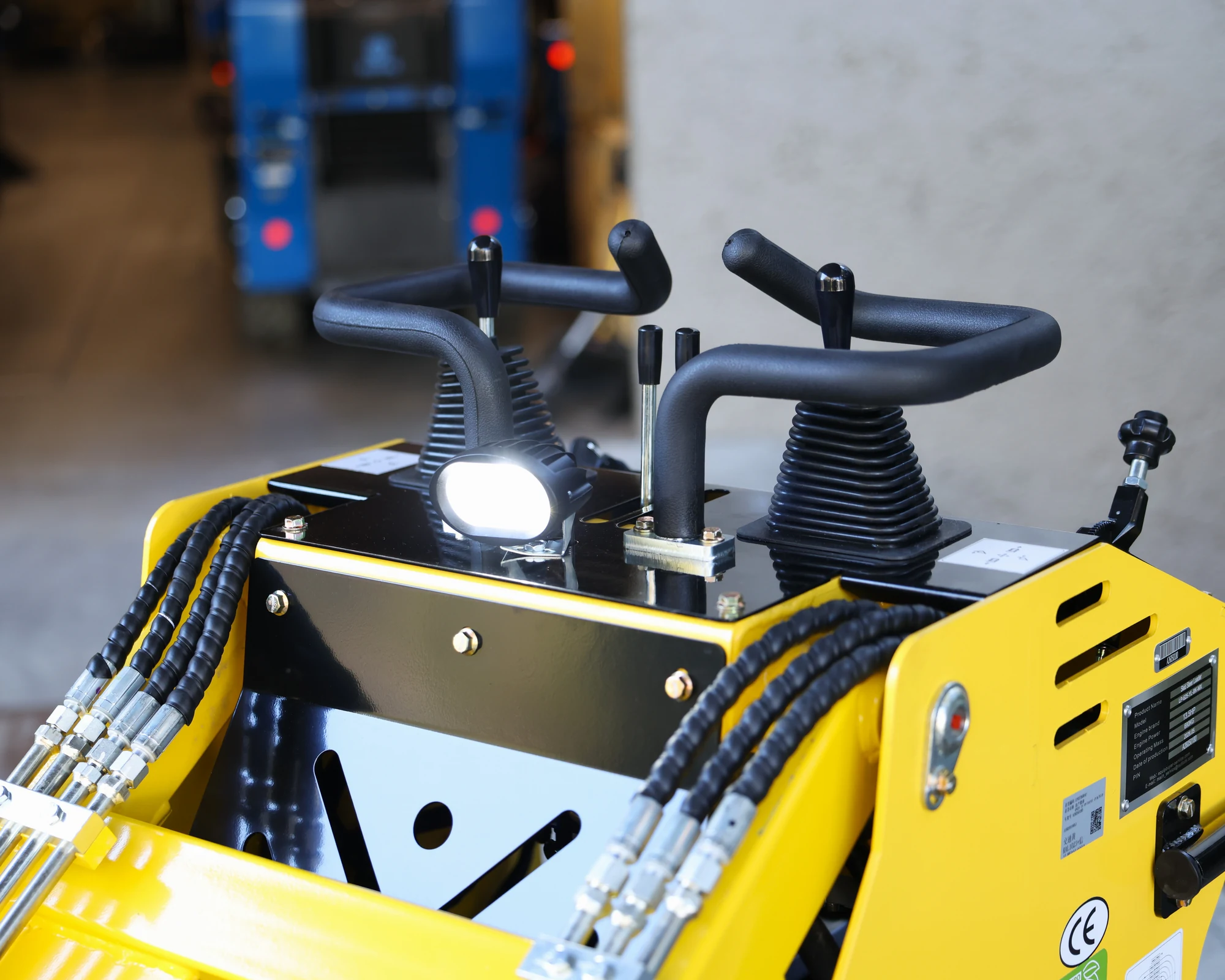

- Joystick controls, hydraulic gauges and work light
What Is Included in the Base Price?
- Dig Master DM14 tracked mini skid steer loader
- Rato 420cc gasoline engine
- General-purpose bucket
- Standard rubber tracks and stand-on platform
Additional attachments and delivery are available separately. Contact Best Seedling to confirm fit and pricing for your selected setup.
Choose Attachments for Your Work
Use the included bucket for everyday material handling, or ask us to match an attachment to the DM14. Hydraulic tools must be checked against the machine’s auxiliary flow, pressure and coupling requirements.
Loading & Grading
Handle soil, mulch and gravel with the included bucket.
Material Handling
Ask about compatible pallet forks and other loader attachments.
Digging & Trenching
Review compatible augers and trenchers for your ground conditions and hydraulic requirements.
Property Maintenance
Choose suitable cleanup or snow-removal attachments after checking compatibility.
Full Specifications
View Dig Master DM14 specifications
| Brand | Dig Master |
|---|---|
| Model | DM14 |
| Engine brand | Rato |
| Engine displacement | 420cc |
| Fuel type | Gasoline |
| Hydraulic system | Triple hydraulic pump system |
| Auxiliary hydraulics | Two separate circuits: proportional flow and continuous flow |
| Undercarriage | Rubber tracks |
| Operator platform | Stand-on |
| Rated lifting capacity | 225 lb / 102 kg (machine label) |
| Maximum lifting capacity | Up to 450 lb / 204 kg (machine label) |
| Overall width | 45.3 in / 1150 mm |
| Maximum loading height | 88.9 in / 2259 mm |
| Maximum dump height | 61.1 in / 1553 mm |
| Bucket capacity | 0.15 m³ / approximately 5.3 ft³ |
| Color | Yellow / black |
| Included attachment | General-purpose bucket |
| Warranty | 1-Year Manufacturer Parts Warranty |
Manufacturer Warranty & Product Support
1-Year Manufacturer Parts Warranty. See warranty booklet for full details.
Contact Best Seedling for help identifying service parts and compatible attachments for your Dig Master DM14.
Pickup and Delivery
Arrange pickup with Best Seedling in Tukwila, Washington. Contact us for a third-party delivery quote to your destination, or arrange your own transportation. Delivery charges are separate from the machine price.
See the Dig Master DM14 in Tukwila
Inspect the machine, discuss your work and compare compatible attachments before choosing your setup.
