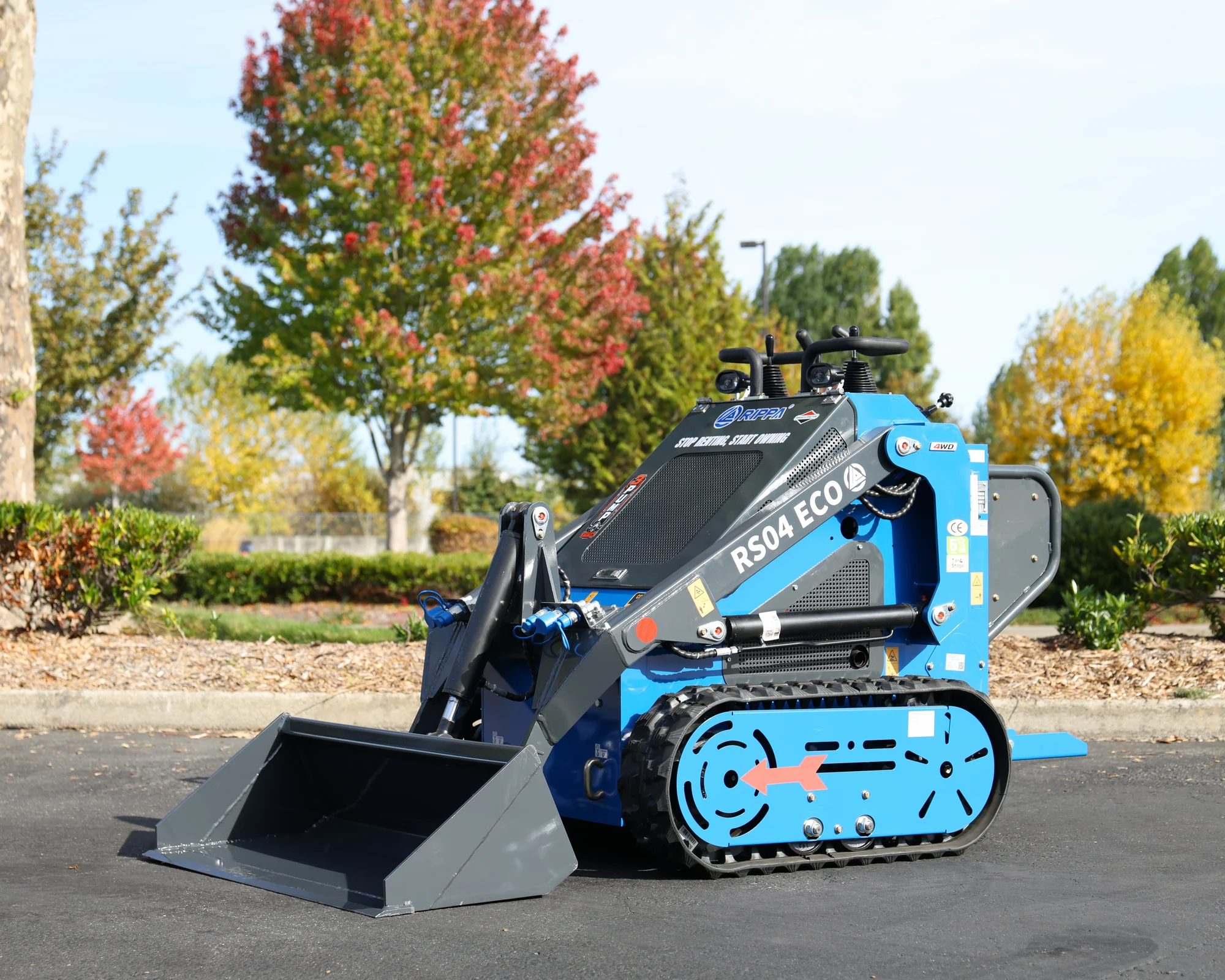

RIPPA RS04 ECO Gas Compact Skid Steer Loader
Compact Size. Gasoline Power. Professional Hydraulic Performance.
The RIPPA RS04 ECO Gas is a compact tracked skid steer built for landscaping, property maintenance, construction, farm work, and professional attachment use.
Powered by a Briggs & Stratton 420 cc gasoline engine, the RS04 ECO combines a compact footprint with triple-pump hydraulics, dual auxiliary circuits, Float Mode, and an industry-standard quick-attach system.
Briggs & Stratton
420 cc / 13.5 Gross HP
Triple Pump
Hydraulic System
Float Mode
Cleaner Finish Work
Tracks Standard
Wheel Kit Optional
Briggs & Stratton Gasoline Power
420 cc • 13.5 Gross HP
The RS04 ECO Gas uses a Briggs & Stratton 420 cc gasoline engine with electric start. The engine label specifies 13.5 gross HP (10.07 gross kW) at 3,600 RPM per SAE J1940.
The accessible engine compartment brings the engine, triple hydraulic pump and hydraulic oil cooler together for routine inspection and maintenance.
- Gasoline fuel
- 420 cc displacement
- Electric start
- Separate hydraulic oil cooler
Small Footprint. Serious Lift.
The RS04 ECO is compact enough for gates, residential properties, landscaping projects, and confined jobsites while delivering the hydraulic performance and attachment capability expected from a professional compact loader.

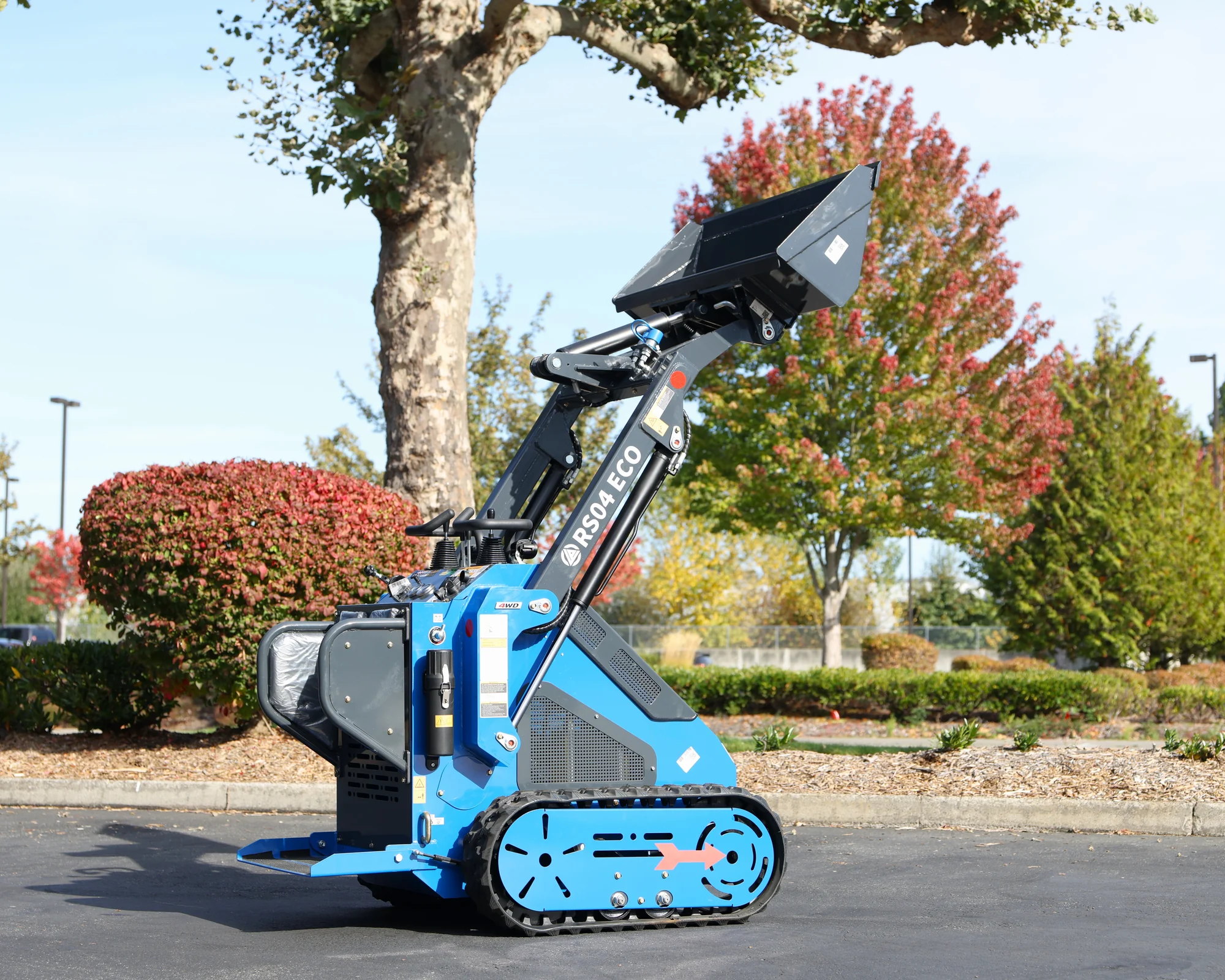

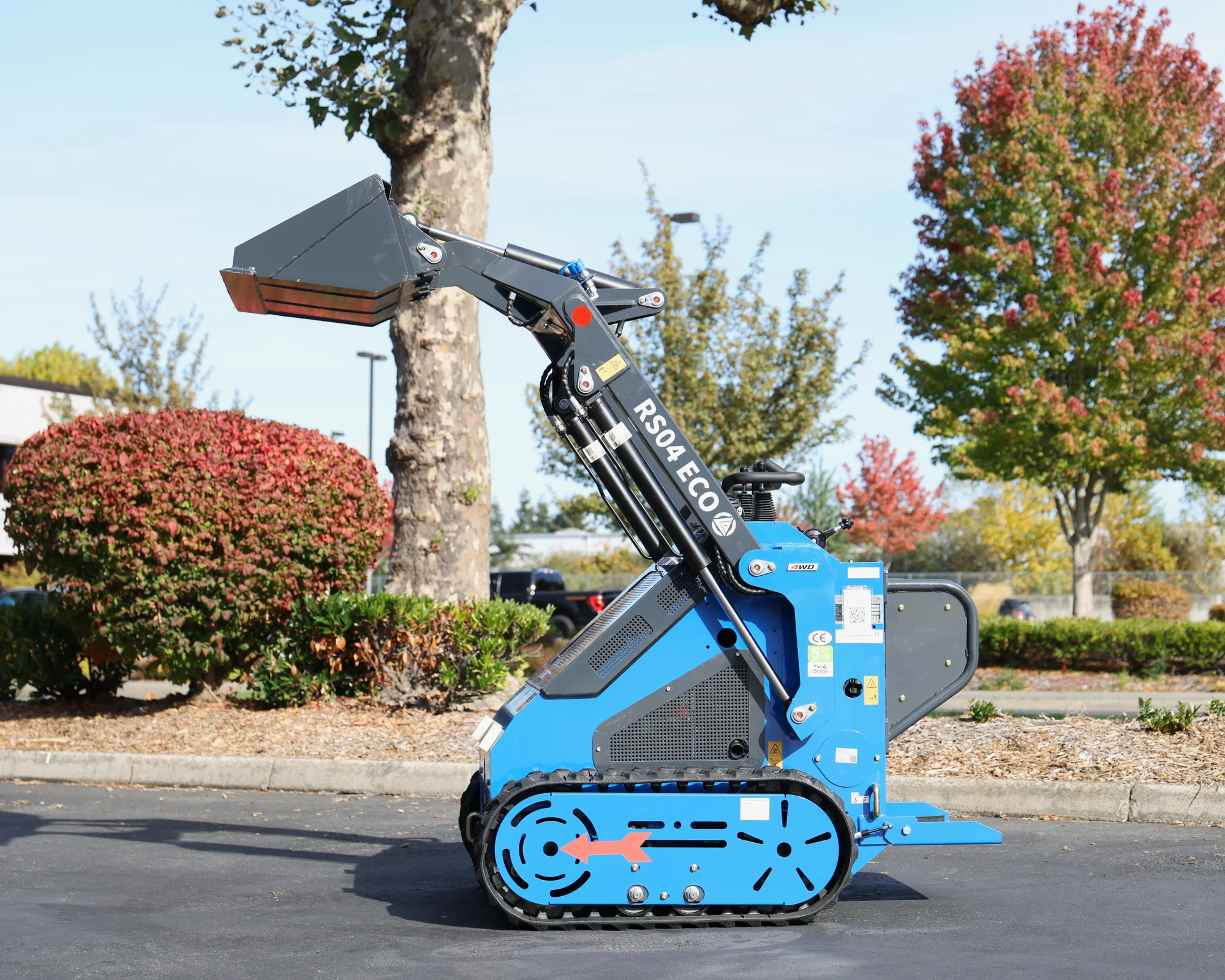

82 in
Maximum Lift Height
62 in
Dump Height
44 in
Overall Width
Up to 617 lb
Maximum Lift Without Counterweights

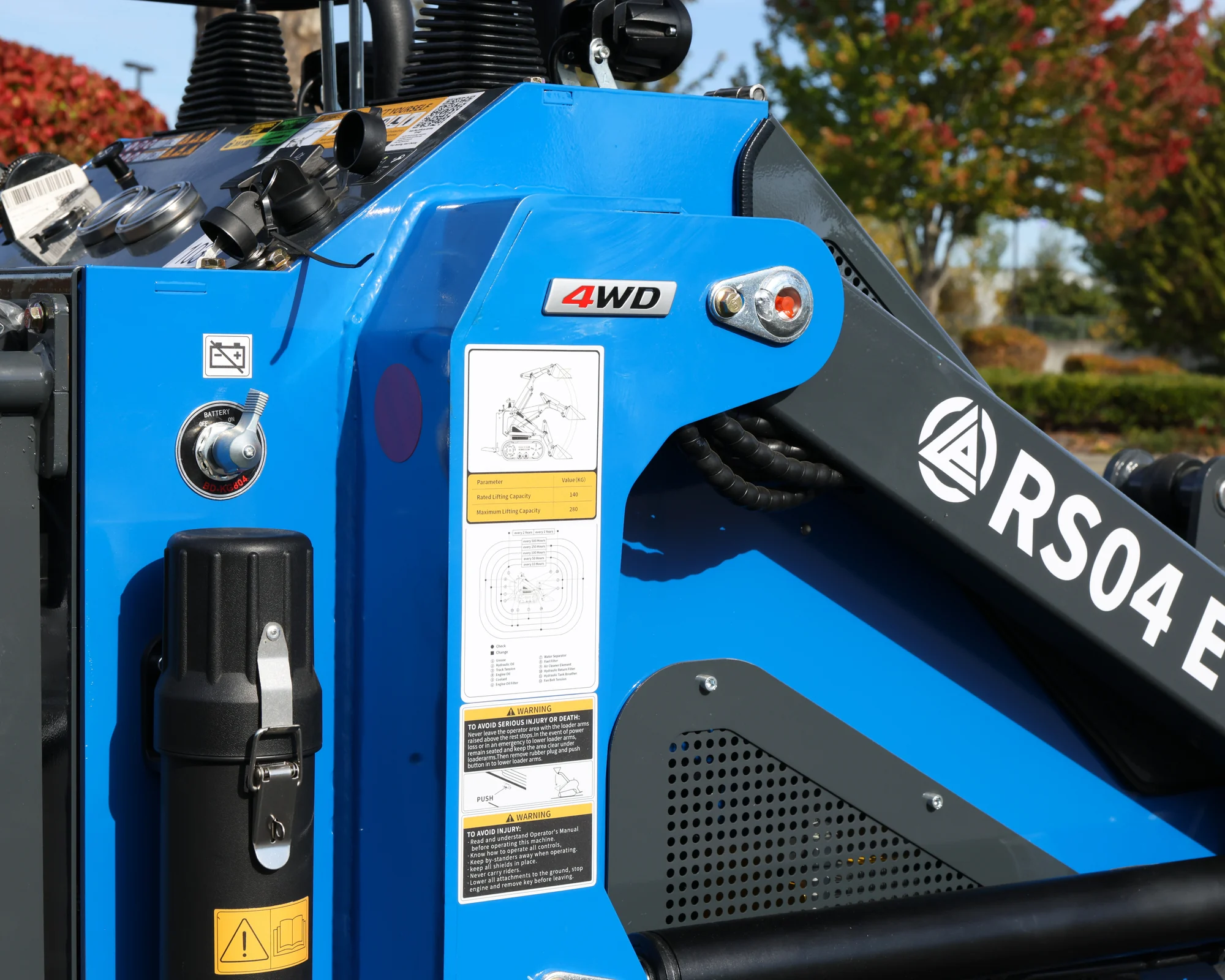

Maximum lifting capacity without optional counterweights: 280 kg (approximately 617 lb). Actual safe working capacity depends on the attachment, load position, terrain, machine configuration, and operating conditions.
One Machine. Two Ways to Work.
The RS04 ECO comes standard on rubber tracks for traction and stability. An optional wheel kit allows the same machine to work efficiently on pavement, hard surfaces, driveways, and maintained properties.

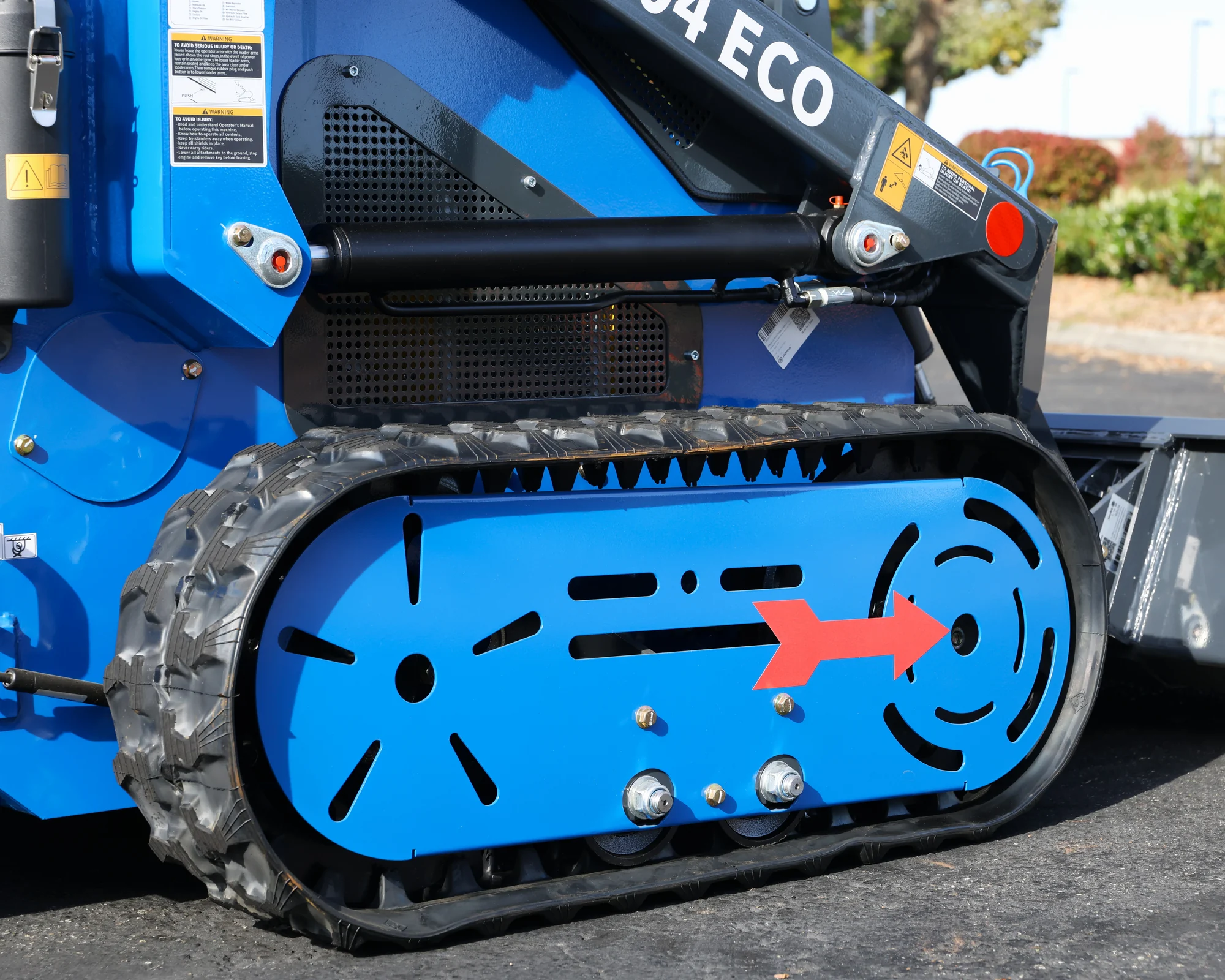

Standard Track Configuration
- Included with the base machine
- Better traction in dirt, mud, and loose material
- Improved stability on uneven terrain
- Lower ground pressure

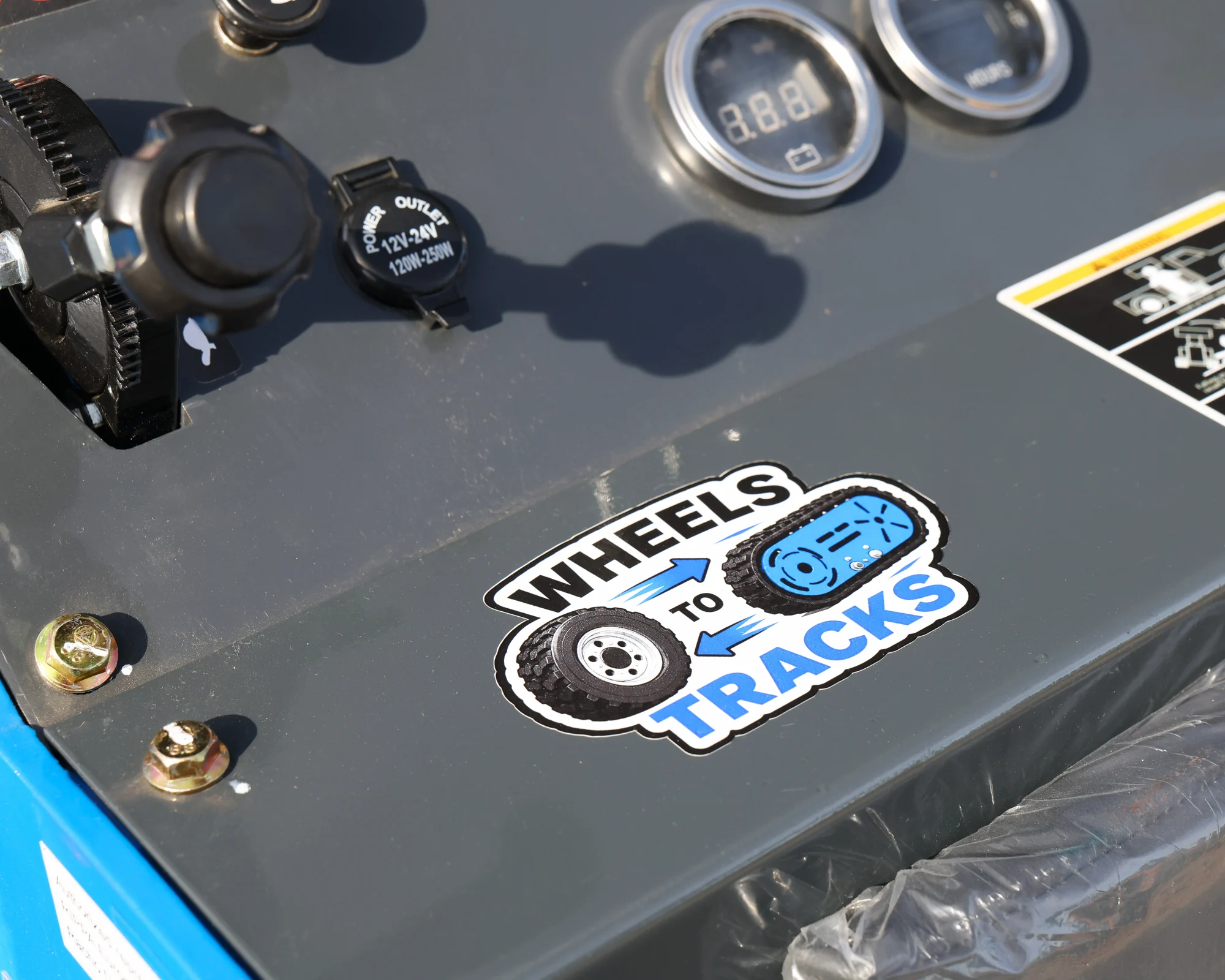

Optional Wheel Configuration
- Better suited for pavement and hard surfaces
- Fast travel and responsive steering
- Convertible wheel-and-track platform
- Available separately for $650
Triple-Pump Hydraulic System

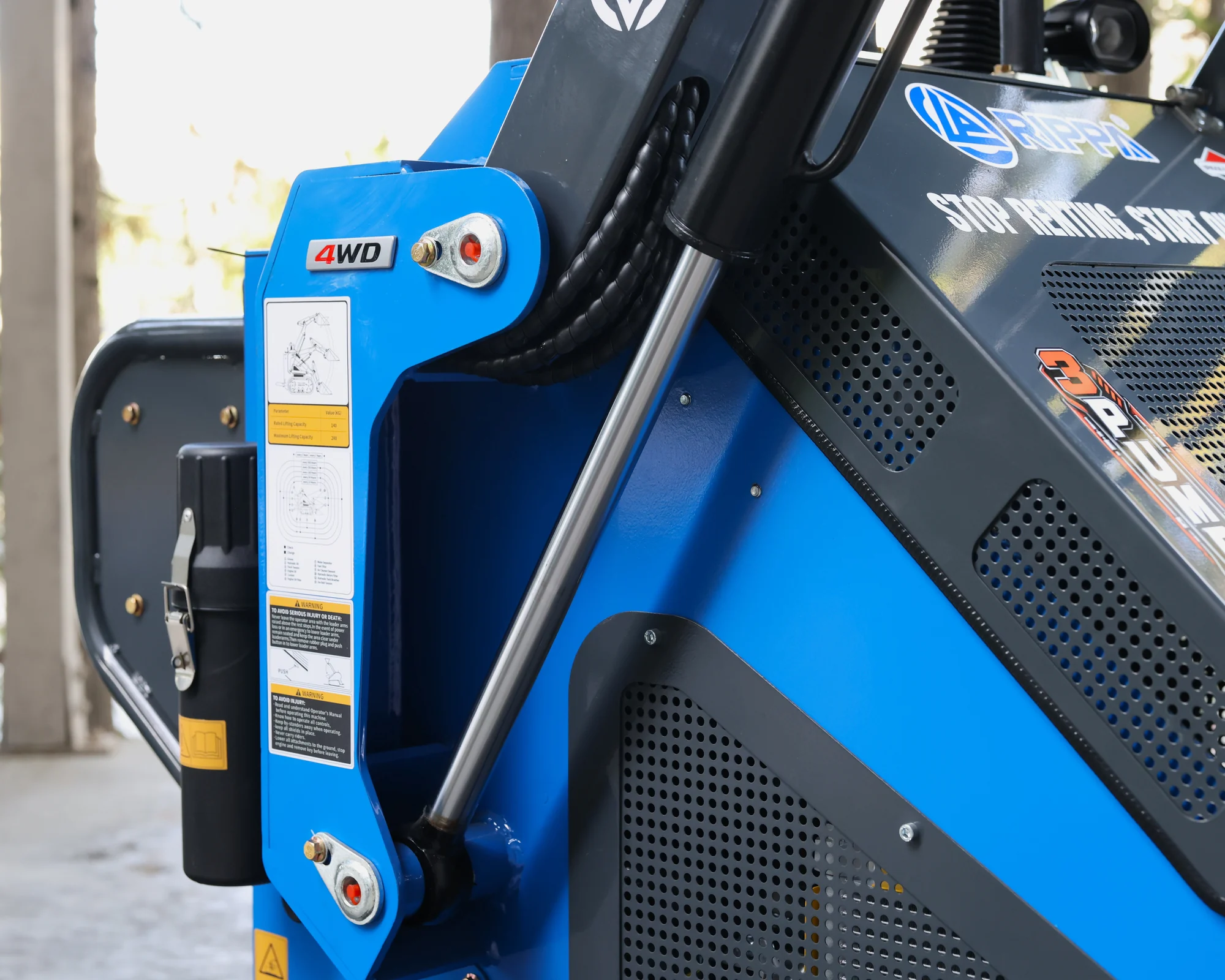

The RS04 ECO uses a triple-pump hydraulic layout to distribute hydraulic power between travel, loader movement, and attachment functions.
This design provides smoother combined operation than a basic single-pump system and helps the operator drive, lift, tilt, and run compatible hydraulic attachments more efficiently.
Smooth Travel
Controlled Drive Response
Loader Control
Responsive Lift and Tilt
Attachment Flow
Dedicated Hydraulic Power
Dual Auxiliary
Two Hydraulic Circuits

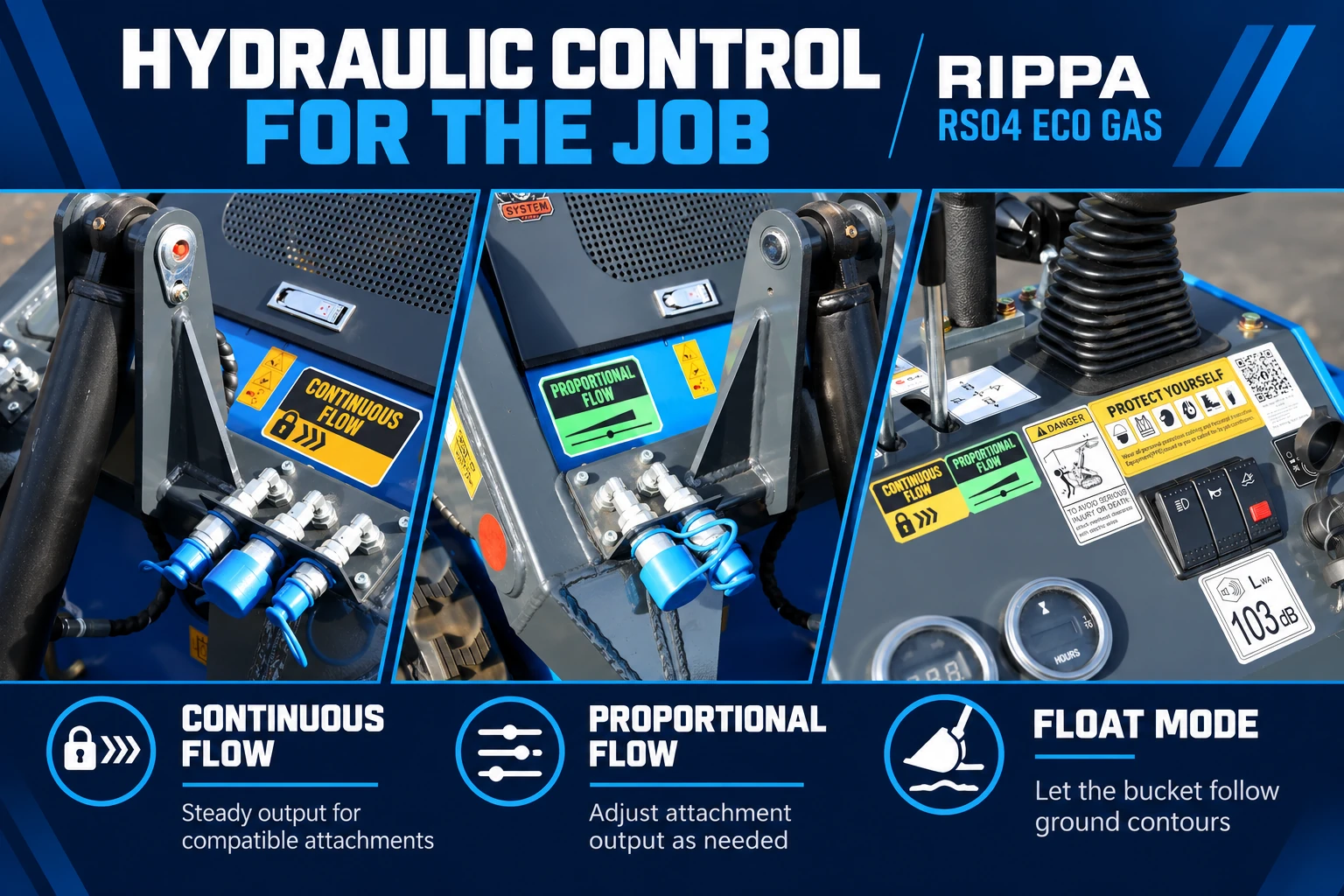

Latest-Generation Float Mode
Float Mode allows the bucket to follow the ground surface instead of being held rigidly in position by the loader arms.
This is especially useful for back-dragging, grading, snow removal, surface cleanup, and finish work where the attachment should follow changing ground contours.
- Smoother back-dragging
- Cleaner grading results
- Useful for snow removal
- Reduces unwanted digging into the surface

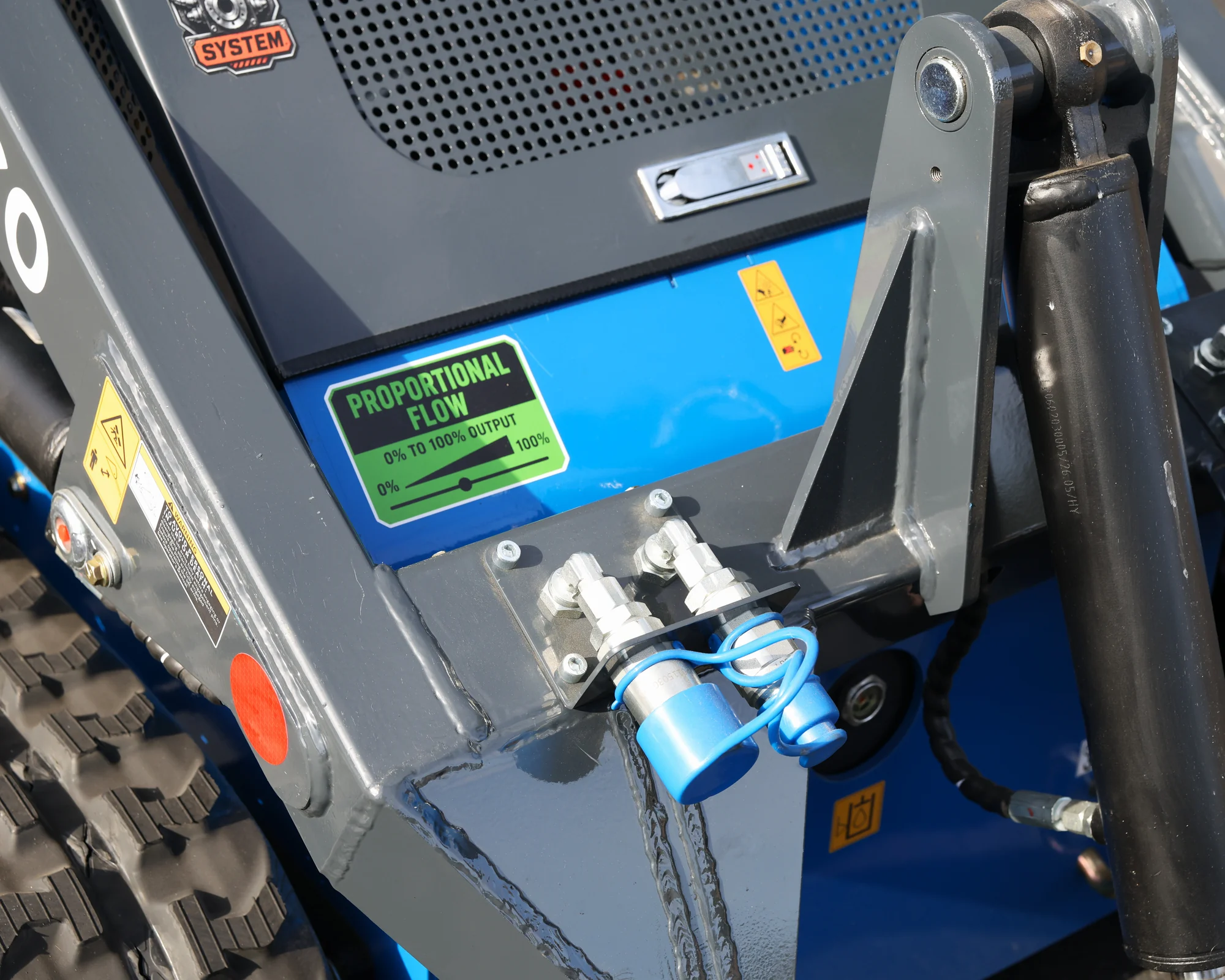

Dual Auxiliary Hydraulics
The RS04 ECO is equipped with dual auxiliary hydraulic outputs, allowing it to operate compatible attachments that require more than one hydraulic function.
Combined with the industry-standard quick coupler, this makes the RS04 ECO a flexible attachment platform for contractors, landscapers, farmers, and property owners.
Optional Counterweight Kit
For additional rear balance, the RS04 ECO can be equipped with eight rear counterweights weighing approximately 15 lb each.
8 Weights
Rear-Mounted Kit
15 lb Each
Individual Weight
120 lb
Total Added Balance
$650
Optional Kit
The optional counterweights add rear balance and can increase lifting capability. The 280 kg maximum listed here applies to the machine without this optional kit. Follow the load limits for the installed configuration.
Choose the Configuration That Fits Your Work
Base Machine

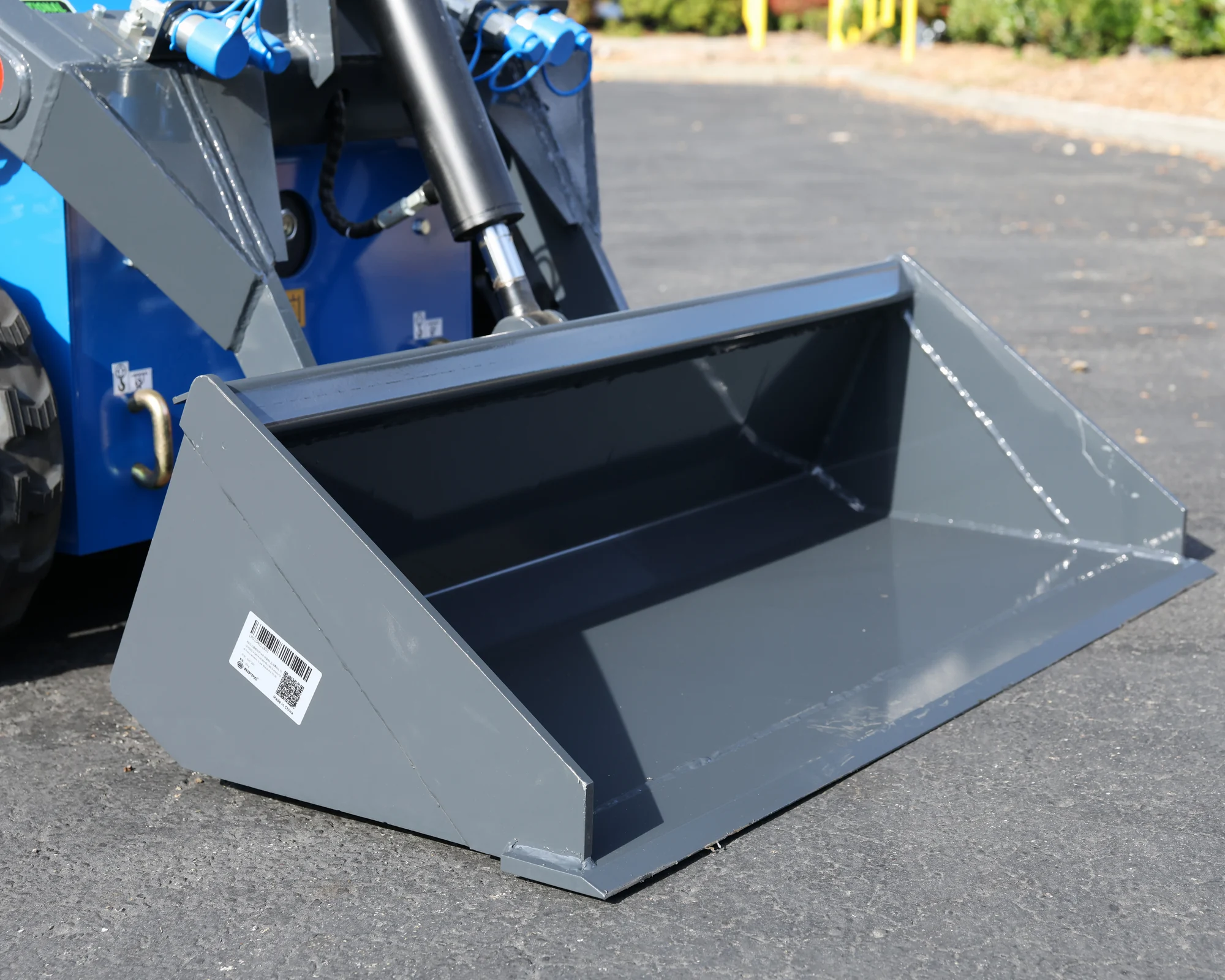

RS04 ECO compact skid steer with rubber tracks and general-purpose bucket.
Wheel Kit — $650
Optional wheel conversion for pavement, driveways, hard surfaces, and maintained properties.
Counterweight Kit — $650
Eight rear weights adding approximately 120 lb of rear balance.
Built to Run Professional Attachments
The RS04 ECO uses an industry-standard quick coupler and auxiliary hydraulics for fast attachment changes and multiple jobsite applications.
Material Handling
Buckets, 4-in-1 buckets, pallet forks, grapples, and grading attachments.
Digging & Trenching
Augers, trenchers, digging arms, and backhoe attachments.
Property Cleanup
Grapples, brush cutters, stump grinders, and debris-handling attachments.
Winter Work
Snow blades, snow blowers, and material buckets.
Bundle attachments with your machine to save.
Key Specifications
| Brand | RIPPA |
|---|---|
| Model | RS04 ECO Gas |
| Engine | Briggs & Stratton |
| Fuel Type | Gasoline |
| Engine Displacement | 420 cc |
| Engine Power | 13.5 gross HP / 10.07 gross kW at 3600 RPM (SAE J1940) |
| Hydraulic System | Triple-pump hydraulic system |
| Hydraulic Cooling | Hydraulic oil cooler |
| Auxiliary Hydraulics | Dual circuits: continuous and proportional flow |
| Drive Modes | 4WD and 2WD |
| Standard Mobility | Rubber tracks |
| Optional Mobility | Wheel kit (sold separately) |
| Maximum Lift Height | 82 in |
| Dump Height | 62 in |
| Overall Width | 44 in |
| Maximum Lifting Capacity | 280 kg / approximately 617 lb without optional counterweights |
| Rated Lifting Capacity | 140 kg / approximately 309 lb without optional counterweights |
| Attachment Interface | Industry-standard quick coupler |
| Bucket Function | Float Mode |
| Color | Blue and charcoal |
| Warranty | 2-year manufacturer parts warranty; terms apply |
What Is Included
- RIPPA RS04 ECO Gas compact skid steer loader
- General-purpose bucket
- Full rubber track system
- Briggs & Stratton engine manual
- Operator’s manual
- Parts book
- Warranty certificate
- Toolbox with tool set
- Spare filter set
