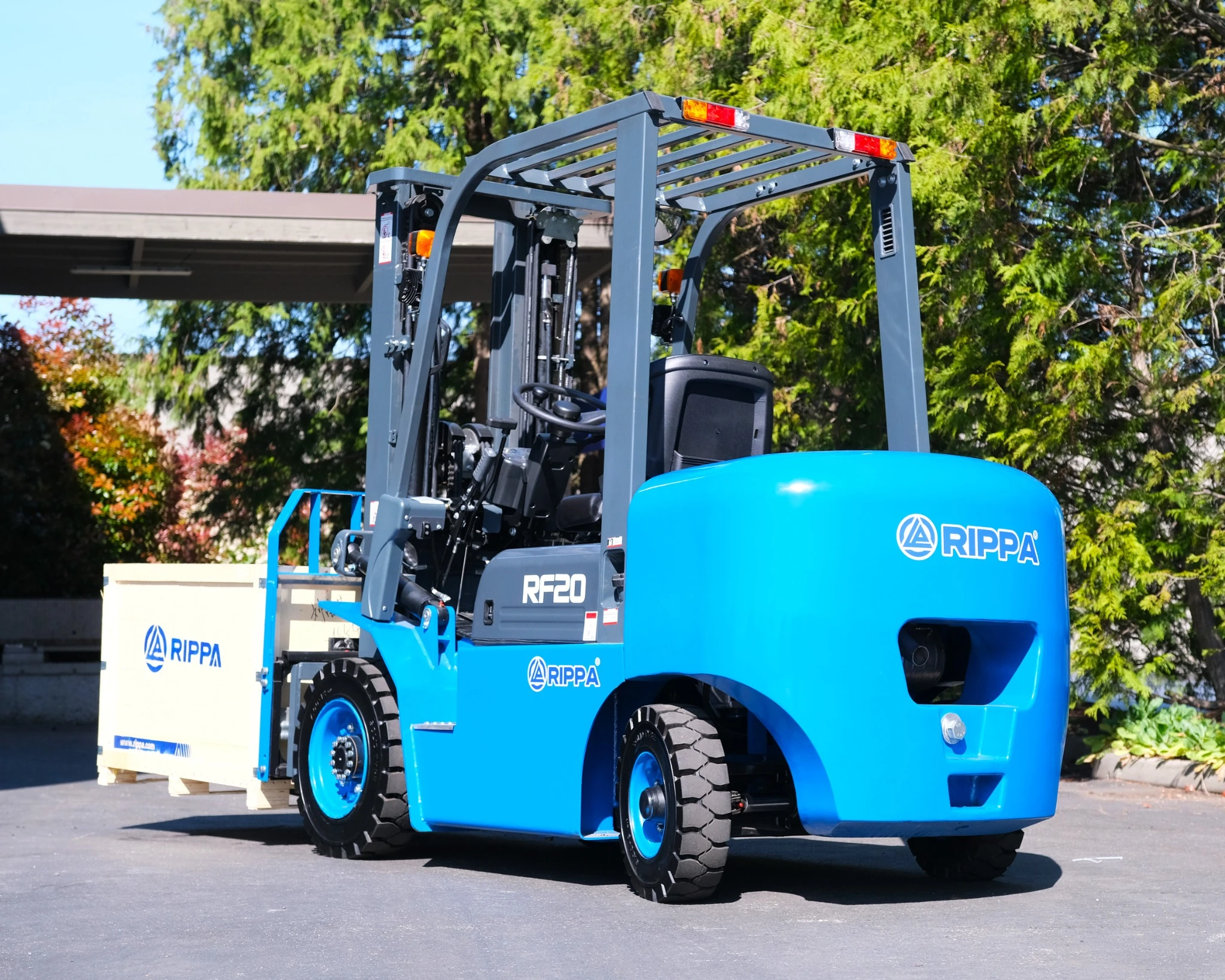

Rippa RF20 Forklift – Kubota Engine 4,400 lb Capacity | 13.3 ft Lift Height
Why Choose the Rippa RF20 Forklift
• Kubota V2403 Industrial Diesel Engine (Proven & Reliable)
• 4,400 lb (2,000 kg) Rated Lifting Capacity
• 3-Stage Mast – Up to 13.3 ft Lift Height
• Hydraulic Side-Shift + Adjustable Fork Positioning
• 6° / 12° Mast Tilt for Precision Handling
• Heavy-Duty Steel Frame Construction
• Hydraulic Power Steering
• Solid Industrial Tires for Outdoor & Yard Use
• Oil Brake + Parking Brake System
• Built for Yards, Farms & Material Handling
Description
Built for Productivity and Outdoor Work
The Rippa RF20 diesel forklift is designed for businesses that need dependable performance, low operating cost, and strong climbing ability. Powered by the Kubota V2403 diesel engine, it delivers consistent torque, excellent fuel efficiency, and long service life.
Unlike electric forklifts, the RF20 is built for long continuous operation, making it ideal for outdoor yards, construction sites, and agricultural work.
Precision Material Handling System
The RF20 includes essential hydraulic features for efficient handling:
• Hydraulic side-shift carriage
• Adjustable fork spacing
• 6° forward / 12° backward mast tilt
• Smooth hydraulic assist steering
Move and position loads precisely without repositioning the entire machine.
3-Stage Mast with Extended Reach
Equipped with a true 3-stage mast, this RF20 offers extended lift height while maintaining stability.
Lifting Performance
• Rated capacity: 4,400 lb (2,000 kg)
• Maximum lifting height: 13.3 ft (4060 mm)
• Standard lift height: 9.8 ft (3000 mm)
• Load center: 19.7 in (500 mm)
• Stable load control at working height
Perfect for stacking, truck loading, and yard operations.
Industrial-Grade Construction
Built for real-world use:
• Heavy-duty steel chassis
• Durable drive axle and rear steering axle
• Solid industrial tires
• Strong climbing ability (15% loaded / 20% unloaded)
• 125 mm (4.9 in) ground clearance for uneven terrain
This is a true work machine, not a light-duty warehouse unit.
Operator Comfort & Control
• Hydraulic power steering
• Ergonomic operator station
• Overhead guard protection
• Clear visibility
• Simple, durable controls
Key Specifications — Rippa RF20 Diesel Forklift
| Specification | Metric | Imperial |
|---|---|---|
| Model | RF20 | RF20 |
| Engine | Kubota V2403 | Kubota V2403 |
| Power Type | Diesel | Diesel |
| Rated Load Capacity | 2000 kg | 4,409 lb |
| Load Center | 500 mm | 19.7 in |
| Max Lift Height | 4060 mm | 159.8 in |
| Standard Lift Height | 3000 mm | 118.1 in |
| Free Lift Height | 100 mm | 3.9 in |
| Operating Weight | 3400 kg | 7,496 lb |
| Length (no forks) | 2282 mm | 89.8 in |
| Width | 1180 mm | 46.5 in |
| Height (overhead guard) | 2085 mm | 82.1 in |
| Wheelbase | 1600 mm | 63.0 in |
| Ground Clearance | 125 mm | 4.9 in |
| Fork Length | 1070 mm | 42.1 in |
| Mast Tilt | 6° / 12° | 6° / 12° |
| Climbing Ability | 15% / 20% | 15% / 20% |
| Brakes | Oil + Parking | Oil + Parking |
| Steering | Hydraulic Assist | Hydraulic Assist |
Product Application Scope
Ideal for:
• Yards and outdoor storage
• Farms and agriculture
• Construction material handling
• Uneven terrain and gravel surfaces
• Long-duration operation without downtime
Warranty & Support
• 1-year manufacturer’s parts warranty
• Lifetime product support
