RIPPA R32-5 PRO Mini Excavator — Kubota Diesel, Enclosed Cab

Original price was: $42,840.00.Current price is: $32,999.00.

● In Stock
$32,999
List Price: $42,840
You save $9,841
Ready for Pickup
Get a Quote

R32-5 PRO — Kubota Diesel Power, Enclosed-Cab Comfort

  • 24.4 HP / 18.2 kW Kubota V1505 diesel
  • 7,987 lb operating weight · 111.3 in digging depth
  • Enclosed cab with air conditioning and heating
  • Hydraulic Thumb
  • Hydraulic Quick Coupler
  • Swing Boom
  • Digging Bucket
  • Angling dozer blade with integrated tow hitch
  • Rubber tracks standard

Call 425-677-5007

Financing Available

3-Year Manufacturer Parts Warranty
Fast Parts Turnaround • Local Support
✓ Local Inventory
✓ No Dealer Fees
✓ Lifetime Support

Available for pick-up from:

  • Tukwila, WA
  • Mount Vernon, WA
  • Spokane, WA

Steel tracks available to order. $2,950 when purchased with a machine.

Description

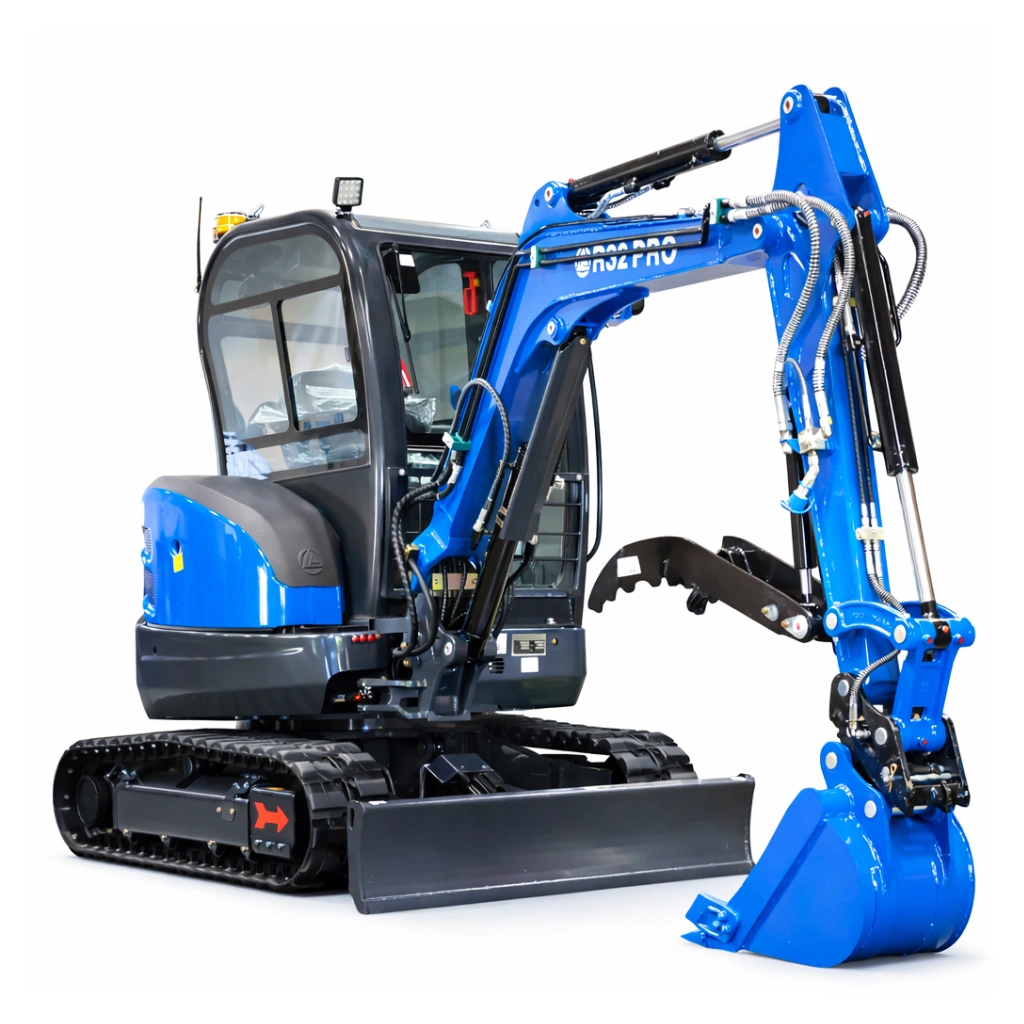

RIPPA R32-5 PRO Kubota diesel mini excavator with enclosed cab and rubber tracks

RIPPA R32-5 PRO Mini Excavator

Kubota diesel power, an enclosed cab and a versatile working range for excavation, landscaping, utilities and property maintenance in Washington.

Kubota V1505
24.4 HP
111.3 in Dig Depth
7,987 lb Operating Weight

Built for Digging. Equipped for More.

The R32-5 PRO brings together load-sensing hydraulics, a swing boom, a hydraulic quick coupler and thumb, and an angling dozer blade with an integrated tow hitch.

Dig & Trench
Grade & Backfill
Handle Materials
Run Attachments
R32-5 PRO digging depth, reach and unloading height shown in separate working positions

Dig Deeper. Reach Further.

Plan excavation, trenching and loading work around the machine’s working envelope.

  • 111.3 in maximum digging depth
  • 190.2 in maximum digging radius
  • 125.2 in maximum unloading height
  • 6,070 lbf / 27 kN maximum digging force

Kubota V1505 Diesel Power

A four-cylinder, water-cooled Kubota V1505 powers the R32-5 PRO, with an accessible engine compartment for routine service.

24.4 HP / 18.2 kW
1.5 L Diesel
4 Cylinders
Water Cooled

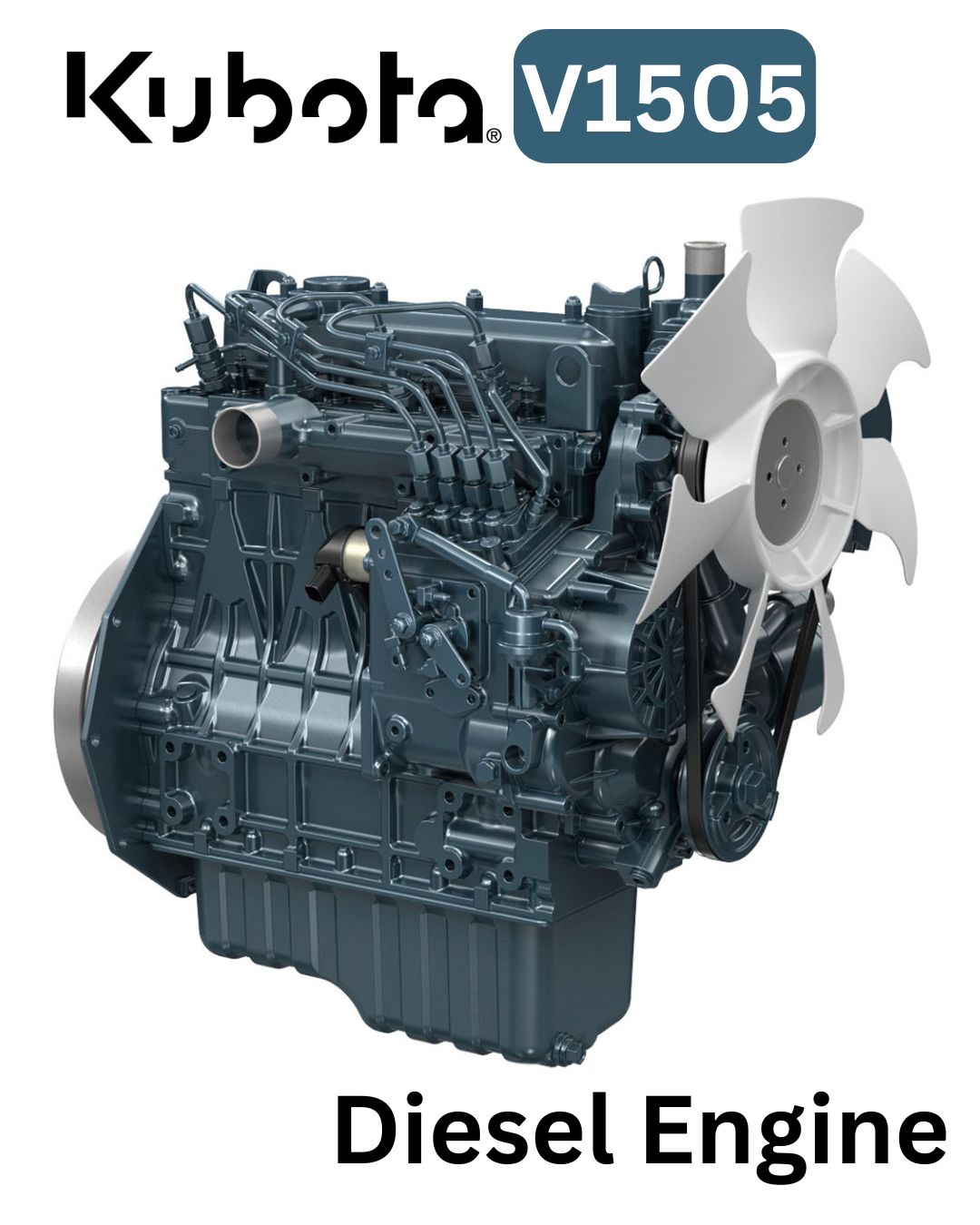

Kubota V1505 diesel engine rated at 24.4 HP and 18.2 kW

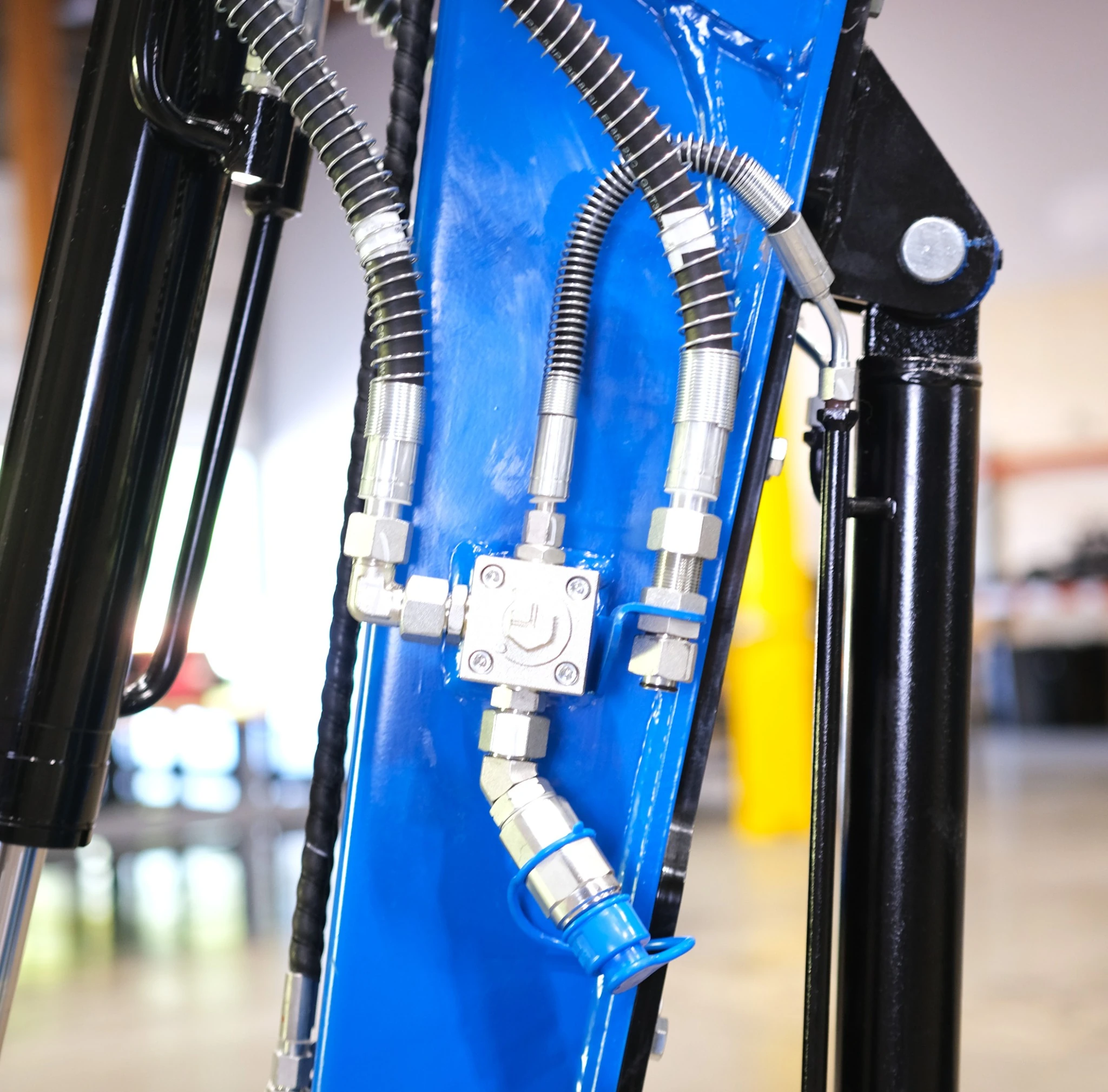

R32-5 PRO piston pump, nine-way control valve and boom hose-failure protection valve

Load-Sensing Hydraulic Control

A variable-displacement piston pump and load-sensing nine-way control valve supply the machine’s hydraulic functions.

  • 99 L/min maximum main pump flow
  • Load-sensing hydraulic control
  • Auxiliary connections for compatible powered attachments
  • Boom hose-failure protection valve

Main pump flow is not an auxiliary attachment flow rating. The boom protection valve helps limit uncontrolled lowering if the relevant hydraulic line fails.

Comfort for a Full Day’s Work

An enclosed cab, heating and air conditioning provide a protected workspace through changing Washington weather.

  • Adjustable suspension seat
  • Pilot joystick controls
  • Digital operating information
  • Air conditioning and heating

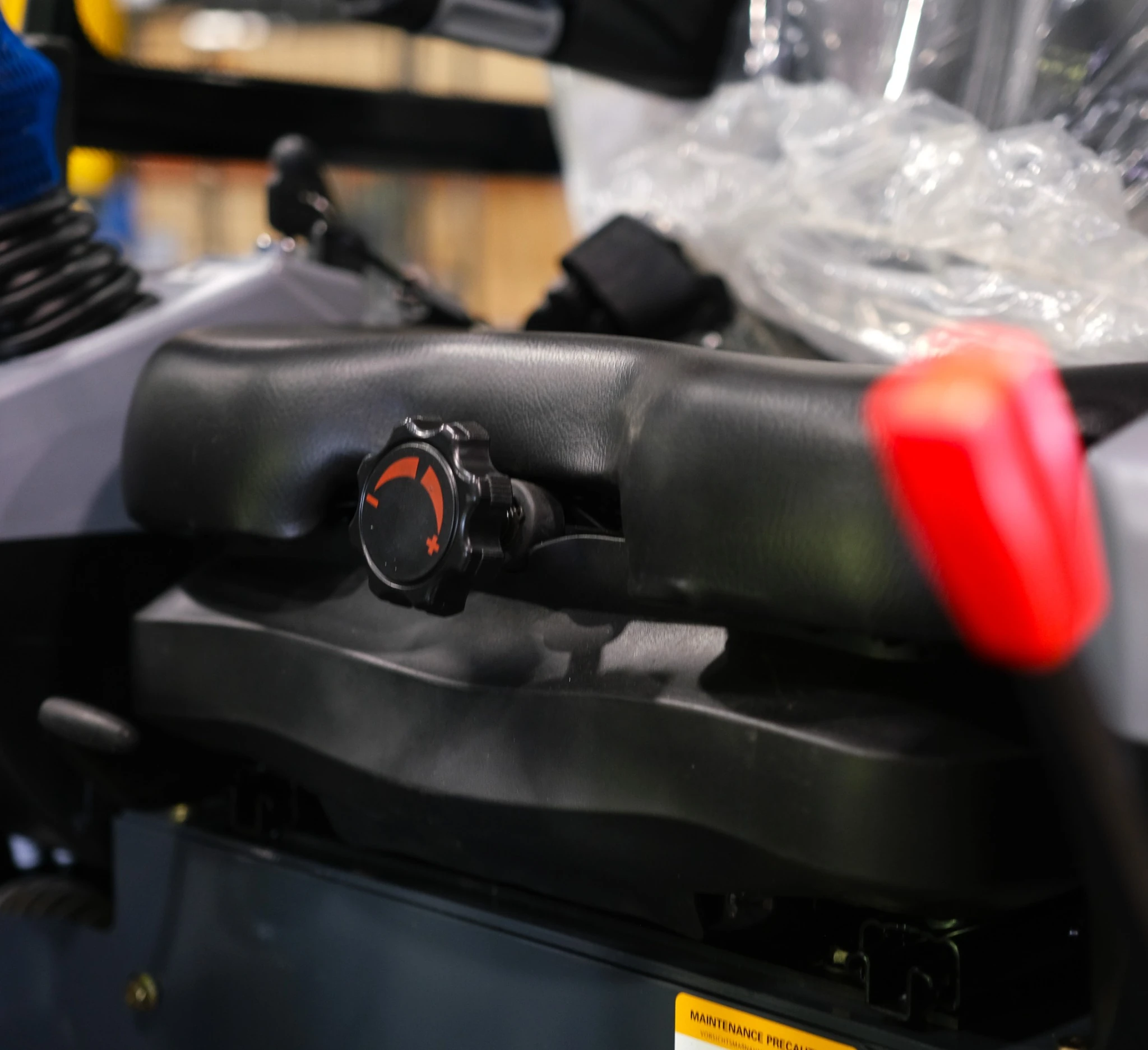

R32-5 PRO enclosed cab with suspension seat, pilot controls, display and climate controls

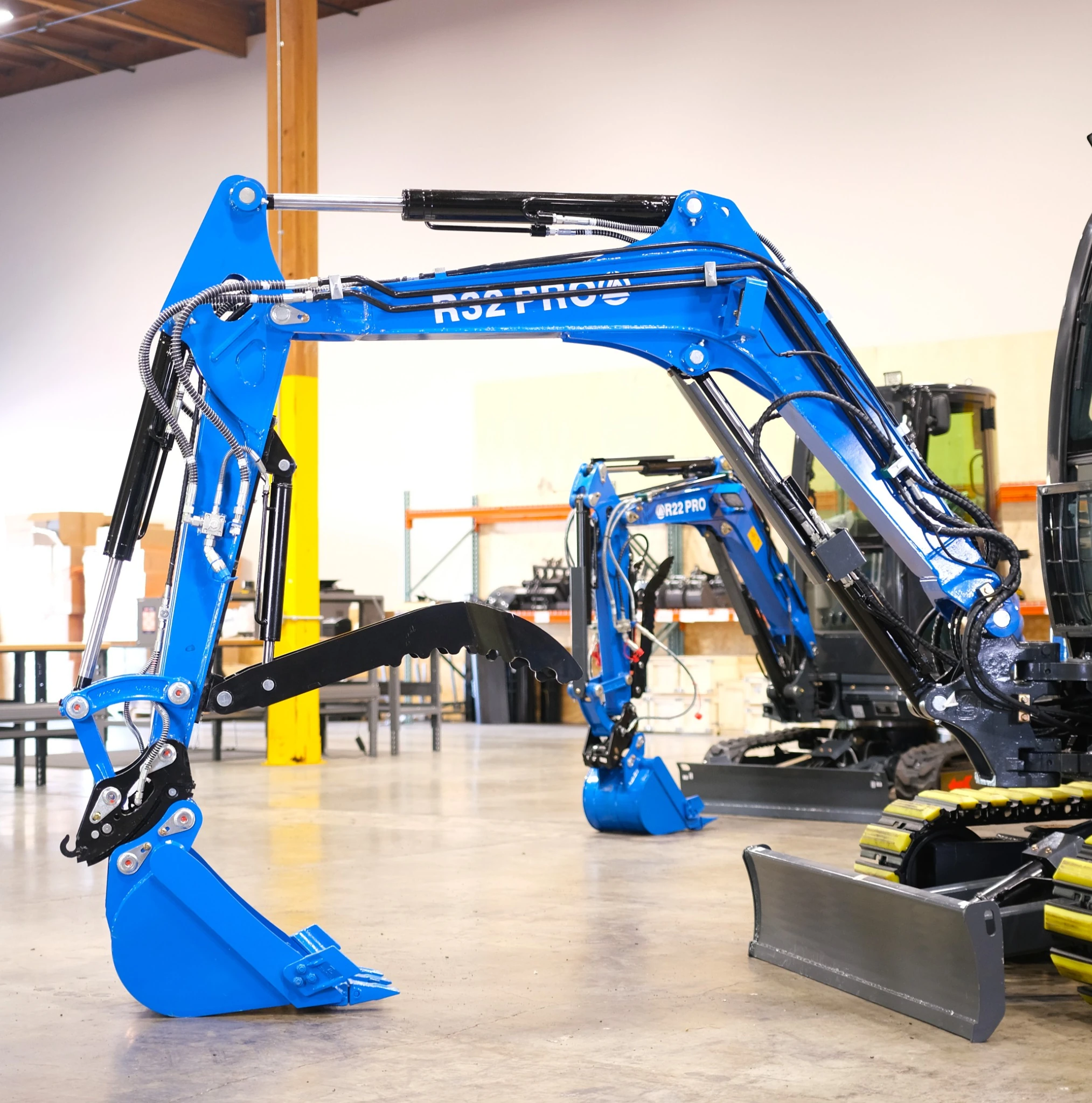

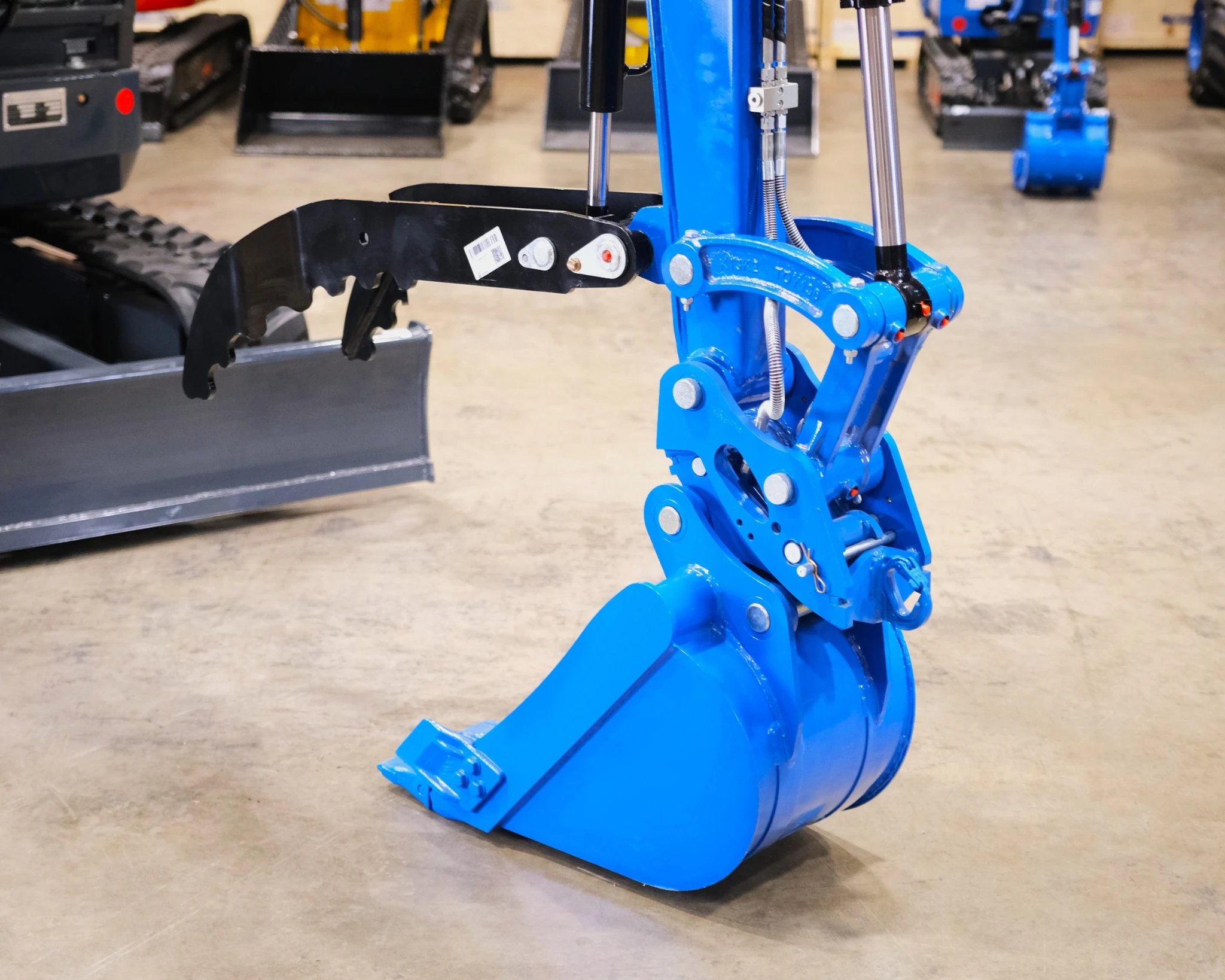

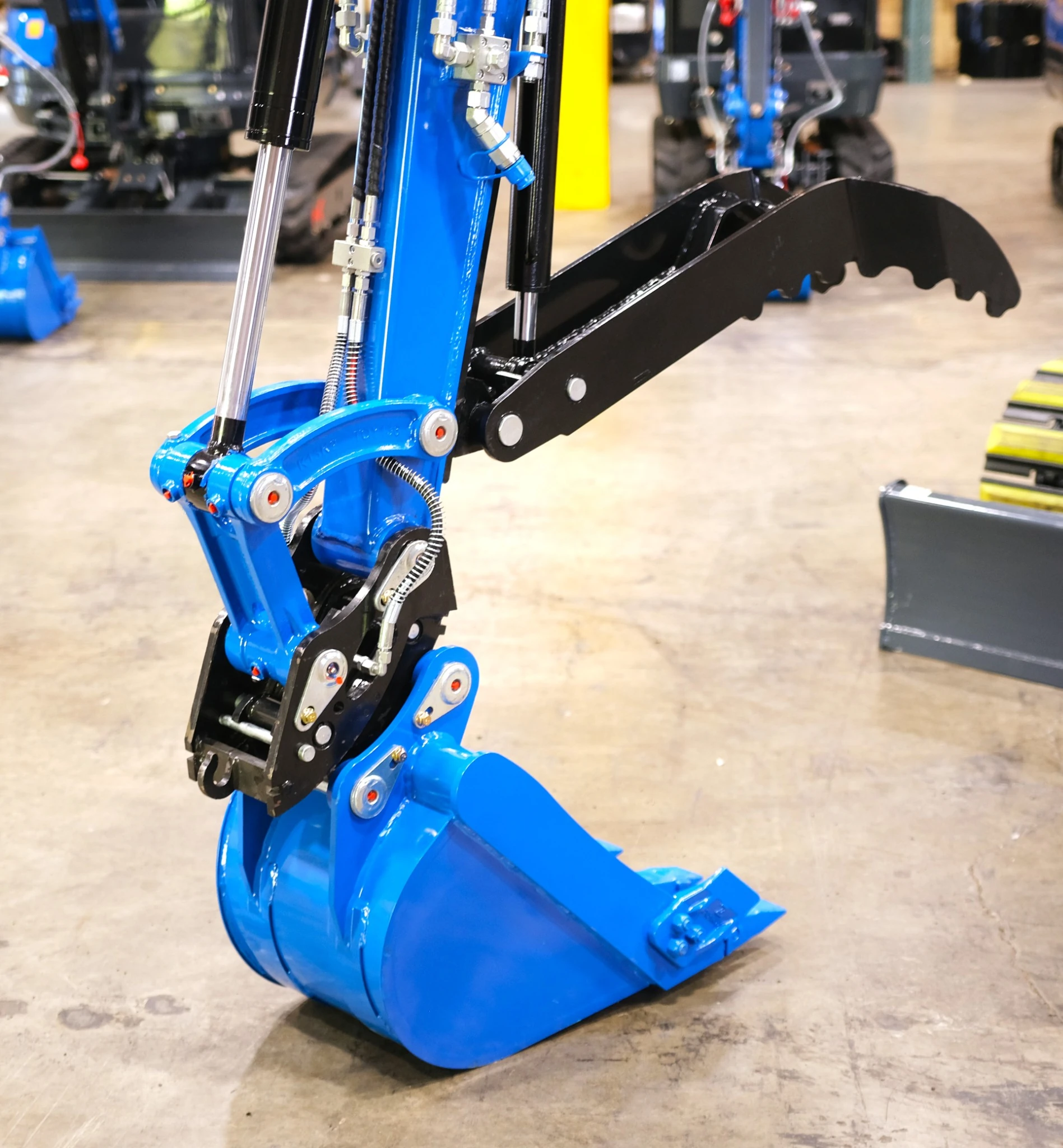

R32-5 PRO hydraulic quick coupler close-up and hydraulic thumb gripping a log

Hydraulic Quick Coupler & Thumb Included

Change compatible attachments with the hydraulic quick coupler. Use the hydraulic thumb against the bucket to grip and position logs, rocks and other suitable materials.

  • Hydraulic quick coupler included
  • Hydraulic thumb included
  • Digging bucket included
  • Swing boom for offset digging

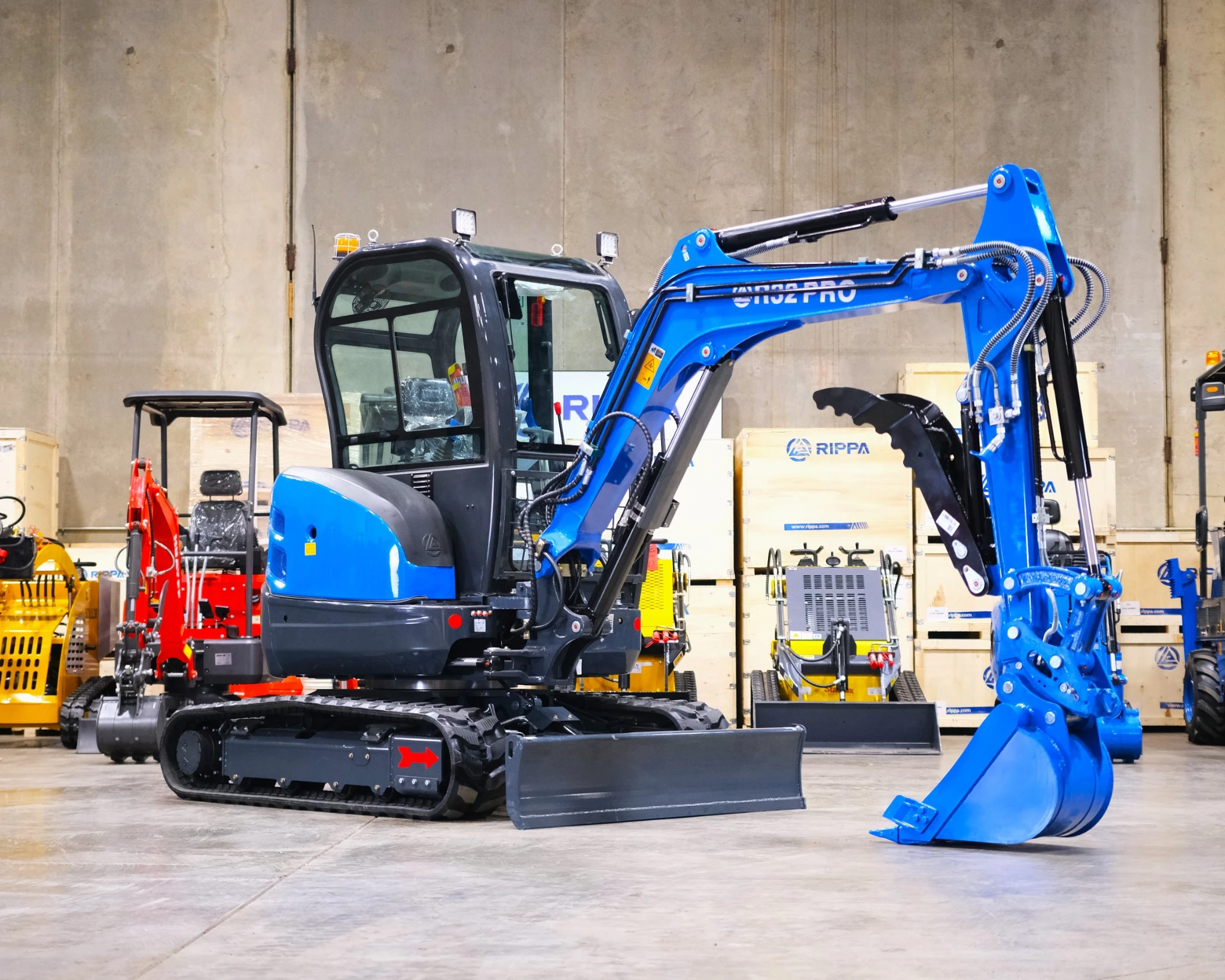

Angling Dozer Blade & Integrated Tow Hitch

Raise, lower and angle the dozer blade to direct material during grading and backfilling. Watch the blade movement and installation of the integrated towing attachment.

One Excavator. More Ways to Work.

Choose compatible buckets, rakes, rippers, augers, breakers and specialty attachments for your work.

Rubber tracks are standard. Steel tracks are available to order.

Optional attachments are sold separately. Confirm fitment and hydraulic requirements with Best Seedling.

Explore Excavator Attachments →

R32-5 PRO with optional grading bucket, rake, ripper, auger, hydraulic breaker and flail mower

Warranty, Manuals & After-Sales Support

3-Year Manufacturer Parts Warranty. External warranty and support portals are operated by Kubota and RIPPA. Coverage is subject to the applicable manufacturer’s terms and the machine’s exact configuration.

R32-5 PRO Full Specifications

Expand a section to view the complete parameters.

Basic Parameters & Working Range
Model RIPPA R32-5 PRO
Machine weight 7,738 lb / 3,510 kg
Operating weight 7,987 lb / 3,623 kg
Bucket capacity 2.83 cu ft / 0.08 m³
Travel speed — low / high 0–1.1 / 0–1.7 mph (0–1.8 / 0–2.8 km/h)
Gradeability 30%
Ground pressure 5.2 psi / 36 kPa
Maximum digging force 6,070 lbf / 27 kN
Maximum digging radius 190.2 in / 4,831 mm
Maximum digging depth 111.3 in / 2,827 mm
Maximum digging height 179.6 in / 4,563 mm
Maximum unloading height 125.2 in / 3,181 mm
Maximum deflection angle — brochure table 110°
Dozer blade turning angle — brochure table 31°

Angles are manufacturer-listed. The brochure separately lists boom swing as 47° right / 74° left; confirm the exact swing range for the supplied machine.

Dimensions & Body
Transport length — manufacturer-listed 115 in / 2,921 mm
Transport width 61 in / 1,550 mm
Transport height 97.9 in / 2,485 mm
Counterweight ground clearance 20.6 in / 522 mm
Bucket width 15.7 in / 400 mm
Boom length 2,220 mm / approximately 87.4 in
Arm length 1,620 mm / approximately 63.8 in
Dozer blade width 61 in / 1,550 mm

Boom and arm imperial dimensions are converted from the brochure’s metric figures. Confirm the complete loading dimensions and attachment position before arranging transport.

Kubota Diesel Engine
Engine brand Kubota
Engine model V1505
Maximum power 24.4 HP / 18.2 kW
Maximum engine speed 2,300 rpm
Displacement 1.5 L / approximately 0.40 US gal
Cylinders 4
Cooling Water-cooled
Engine oil change amount 5 L / 1.32 US gal
Fuel Diesel
Fuel grade — manufacturer notation 0 / −10
Theoretical fuel consumption 1.3–1.5 L/h / approximately 0.34–0.40 US gal/h

Theoretical fuel consumption is not a guaranteed consumption rate; actual use varies with operating conditions.

Hydraulic System
Main pump type Variable-displacement piston pump
Main pump displacement 45 mL/rev
Main pump maximum flow 99 L/min
Main control valve Load-sensing nine-way hydraulic valve
Rated set pressure 18 MPa / approximately 2,611 psi
Travel hydraulic motor LTM03AX
Slewing hydraulic motor — manufacturer-listed Likechuan

99 L/min is the main pump rating. Confirm auxiliary flow, pressure and attachment requirements before selecting powered tools.

Standard Equipment & Options
Tracks Rubber tracks standard; steel tracks available to order
Cab Enclosed, with air conditioning and heating
Seat Adjustable suspension seat
Controls Pilot joysticks
Work tools Digging bucket, hydraulic quick coupler and hydraulic thumb
Boom Swing boom
Dozer blade Angling blade with integrated tow hitch
Optional attachments Available separately; compatibility must be confirmed

Specifications are based on the RIPPA product brochure with the current R32-5 power rating supplied by Best Seedling. Equipment and specifications may vary by production run and configuration.

Included With Every Machine

Every new RIPPA R32-5 PRO comes ready to work with essential manuals, filters, a toolbox set, and setup items included at no extra cost.

RIPPA included machine kit with toolbox, filters, manuals and setup accessories for the R32-5 PRO

Local Parts, Attachments & Support

Best Seedling keeps local machine inventory, common service parts, and compatible attachments available to help keep your R32-5 PRO working.

RIPPA local inventory of parts and attachments available from Best Seedling in Tukwila Washington

Pickup and Delivery

Contact us for R32-5 PRO availability in Tukwila, Mount Vernon and Spokane, Washington. Inventory varies by location. Third-party delivery can be arranged; request a quote or arrange your own transportation.

See the R32-5 PRO in Tukwila

Compare the machine, discuss attachments and book time with a Best Seedling representative.

3-Year Manufacturer Parts Warranty • Local Parts & Product Support

n

BUILD YOUR MACHINE PACKAGE

Choose Your R32 Attachment Bundle

Three packages for trenching, property work and jobsite versatility. Bundle prices apply with an R32 machine purchase.

R32 · 40 MM PINS
Excavator trenching bucket with teeth — three-quarter view32” leveling bucket excavator attachment – angle view, available at Best Seedling in Seattle WARake attachment excavator rake – angle view, available at Best Seedling in Seattle WARippa R18 mini excavator root and rock ripper attachment – heavy-duty curved tooth for breaking soil, roots, and compacted ground
Trenching, leveling and basic property cleanup

Essentials

4 Attachments
  • 14″ Trenching Bucket with Teeth
  • 32″ Leveling Bucket
  • 24″ Rake
  • Root & Rock Ripper
Separately $4,450.00$1,670.00 savings
$2,780.00
View Bundle →
Excavator trenching bucket with teeth — three-quarter view32” leveling bucket excavator attachment – angle view, available at Best Seedling in Seattle WARake attachment excavator rake – angle view, available at Best Seedling in Seattle WARippa R18 mini excavator root and rock ripper attachment – heavy-duty curved tooth for breaking soil, roots, and compacted groundHydraulic breaker excavator attachment – angle view, available at Best Seedling in Seattle WA8-inch hydraulic auger drill attachment for a mini excavator shown at an angleRIPPA 34-inch toothed digging bucket for R32 PRO excavator with 40mm pinPallet Forks | R32 Pro Excavator | 40mm pin attachment
Add a wide digging bucket and excavator pallet forks

Property & Jobsite

8 Attachments
  • Everything in Contractor, plus:
  • 34″ Digging Bucket with Teeth
  • Pallet Forks
Separately $11,199.00$3,309.00 savings
$7,890.00
View Bundle →

Attachments only; R32 excavator sold separately. Prices before applicable tax and delivery. Compare 40 mm pins, 136 mm dipper/ear gap and 185 mm pin centers with your actual mount. Confirm hydraulic requirements for powered tools.

Additional information

Model

R32-5

Machine weight

7,738 lb / 3,510 kg

Operating weight

7,987 lb / 3,623 kg

Bucket capacity

2.83 cu ft / 0.08 m³

Travel speed — low / high

0–1.1 / 0–1.7 mph (0–1.8 / 0–2.8 km/h)

Gradeability

30%

Ground pressure

5.2 psi / 36 kPa

Maximum digging force

6,070 lbf / 27 kN

Maximum digging radius

190.2 in / 4,831 mm

Maximum digging depth

111.3 in / 2,827 mm

Maximum digging height

179.6 in / 4,563 mm

Maximum unloading height

125.2 in / 3,181 mm

Maximum deflection angle — brochure table

110°

Dozer blade turning angle — brochure table

31°

Transport length — manufacturer-listed

115 in / 2,921 mm

Transport width

61 in / 1,550 mm

Transport height

97.9 in / 2,485 mm

Counterweight ground clearance

20.6 in / 522 mm

Bucket width

15.7 in / 400 mm

Boom length

2,220 mm / approximately 87.4 in

Arm length

1,620 mm / approximately 63.8 in

Dozer blade width

61 in / 1,550 mm

Engine brand

Kubota

Engine model

V1505

Maximum power

24.4 HP / 18.2 kW

Maximum engine speed

2,300 rpm

Displacement

1.5 L / approximately 0.40 US gal

Cylinders

4

Cooling

Water-cooled

Engine oil change amount

5 L / 1.32 US gal

Fuel

Diesel

Fuel grade — manufacturer notation

0 / −10

Theoretical fuel consumption

1.3–1.5 L/h / approximately 0.34–0.40 US gal/h

Main pump type

Variable-displacement piston pump

Main pump displacement

45 mL/rev

Main pump maximum flow

99 L/min

Main control valve

Load-sensing nine-way hydraulic valve

Rated set pressure

18 MPa / approximately 2,611 psi

Travel hydraulic motor

LTM03AX

Slewing hydraulic motor — manufacturer-listed

Likechuan

Tracks

Rubber tracks standard; steel tracks available to order

Cab

Enclosed, with air conditioning and heating

Seat

Adjustable suspension seat

Controls

Pilot joysticks

Work tools

Digging bucket, hydraulic quick coupler and hydraulic thumb

Boom

Swing boom

Dozer blade

Angling blade with integrated tow hitch

Warranty

3-Year Manufacturer Parts Warranty
