Compare these mounting dimensions with your excavator dipper or quick coupler. All three measurements must match; pin diameter alone does not confirm compatibility.
Tap the diagram to enlarge. Schematic only; not to scale.
A — Pin diameter: measure across the cylindrical pin with calipers.
B — Inside ear gap: measure the clear distance between the inner faces of the attachment mounting ears; compare with the dipper or coupler width.
C — Pin centers: measure from the center of one mounting pin or hole to the center of the other.
Reference dimensions supplied for these RIPPA models. Check the actual attachment and machine before purchase, especially with aftermarket quick couplers or modified mounts. For quick couplers, these references describe the excavator-side mounting; verify the attachment-side engagement and locking separately. For hydraulic attachments, also confirm oil flow, pressure, hose fittings and couplers. Send us photos and your A/B/C measurements if you need help checking fit.

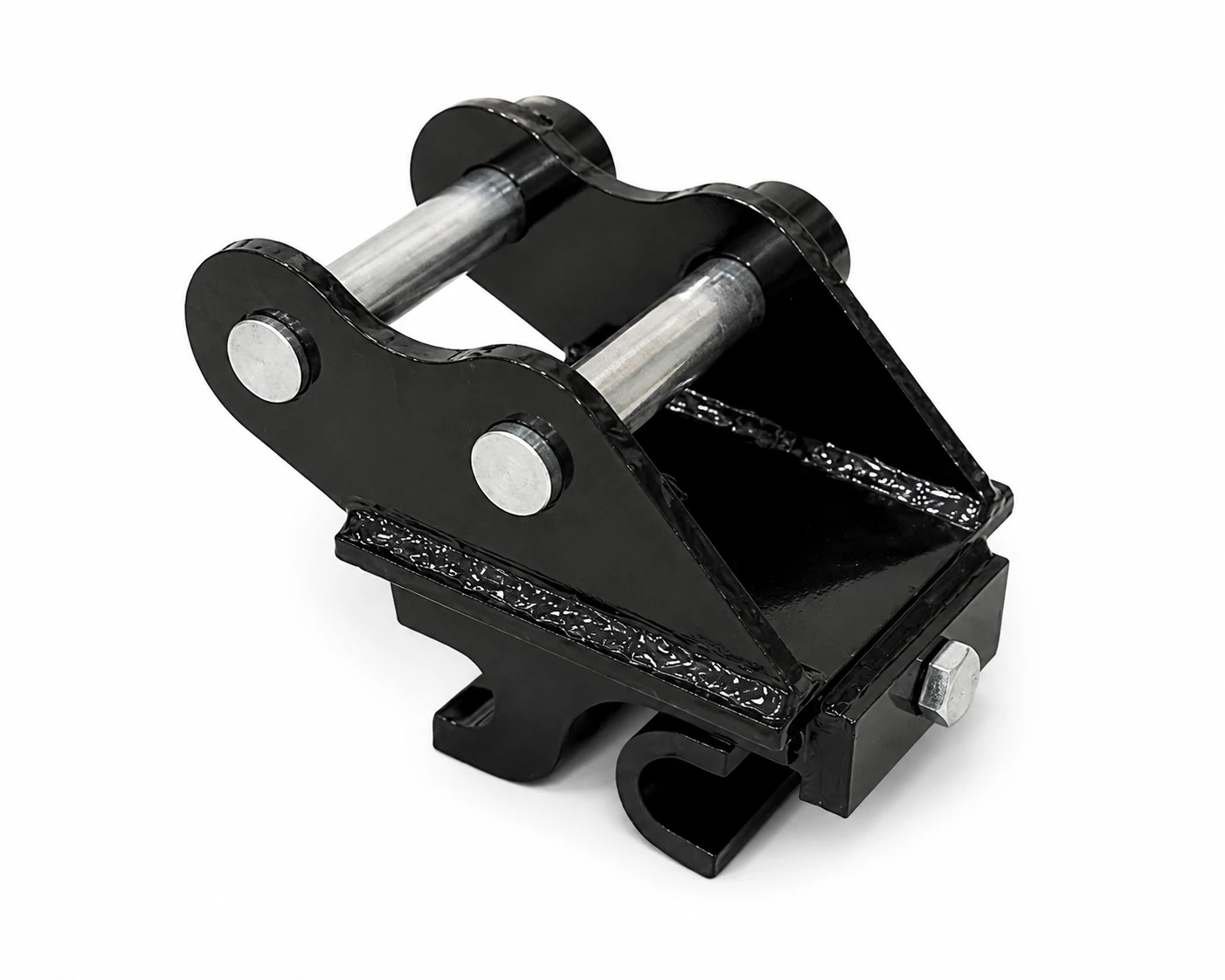

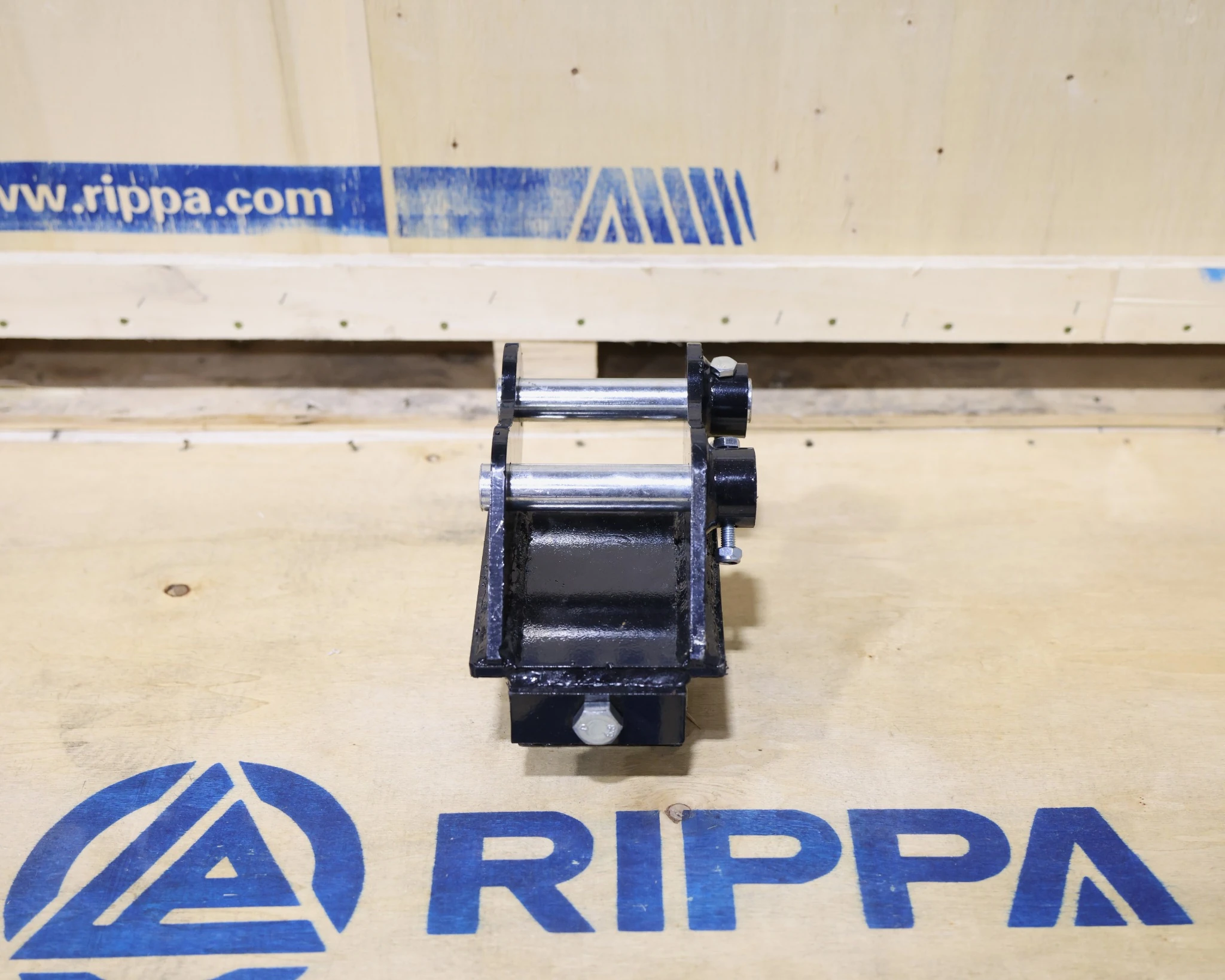

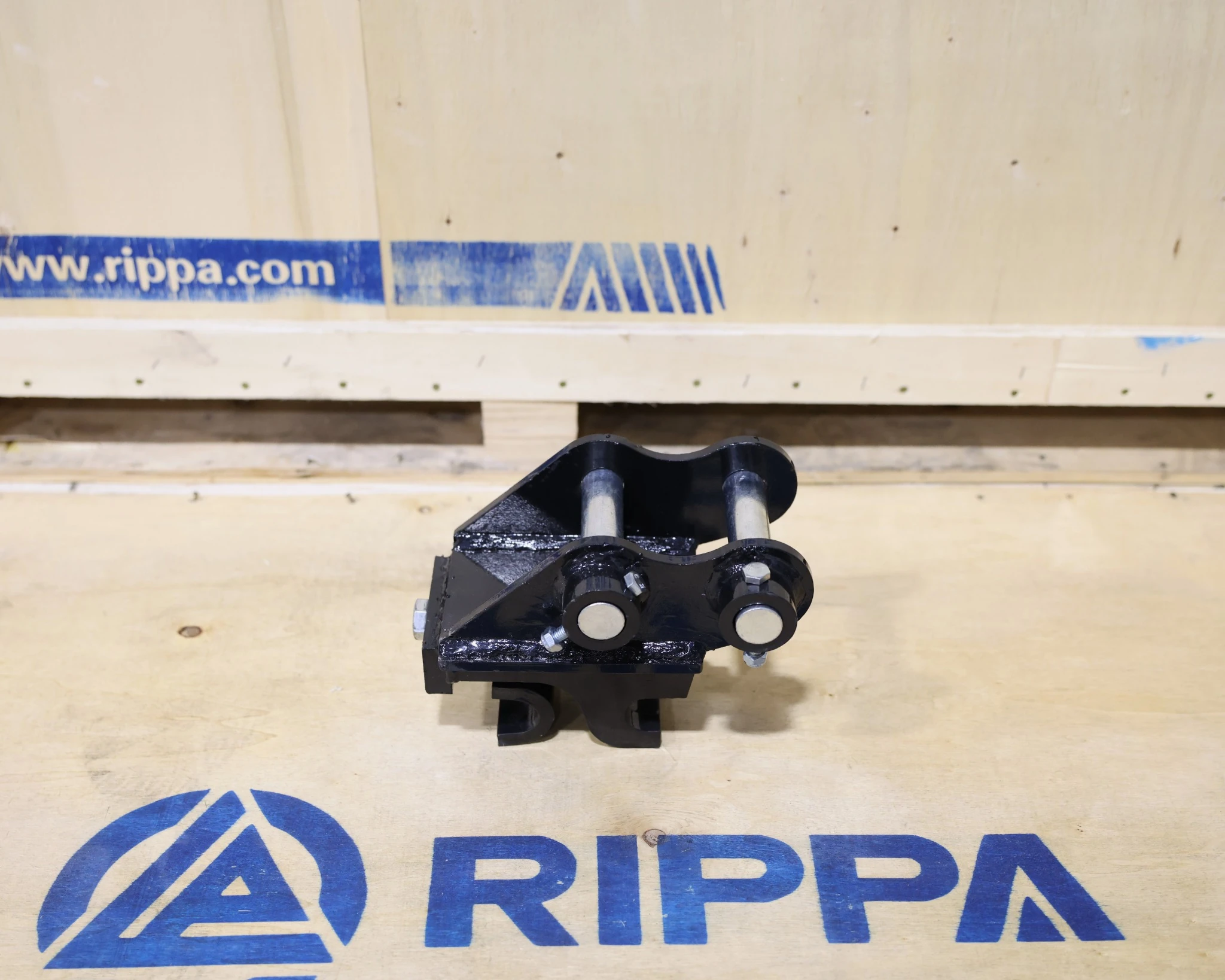

Manual Quick Coupler for 1-1.8 Ton Mini Excavators
Change attachments in seconds with the Quick Coupler for the mini excavator.
This attachment allows operators to quickly switch between buckets, rippers, rakes, augers, and other compatible attachments without removing pins manually, helping reduce downtime and increase productivity on the job site.
Features:
• RIPPA R10/R13/R15 mounting reference: 25 mm pins, 92 mm inside ear gap and 90 mm pin centers; verify all dimensions
• Fast attachment changes
• Reduces downtime and improves efficiency
• Durable steel construction
• Compatible with Rippa R10/R13/R15 attachments
• Ideal for contractors, landscapers, farms, and property owners
Additional information
Attachment pin diameter
25 mm
Add to your equipment setup
Selected for this equipment family. Confirm the actual mounting dimensions, attachment weight and, for powered tools, hydraulic requirements before ordering.
Model references are a starting point. Verify the dimensions shown above and the actual machine configuration; adapters or hydraulic checks may be required.
