TPM Industrial TPM-16 Compact Excavator 1-Ton 13.5HP Briggs&Stratton

Description

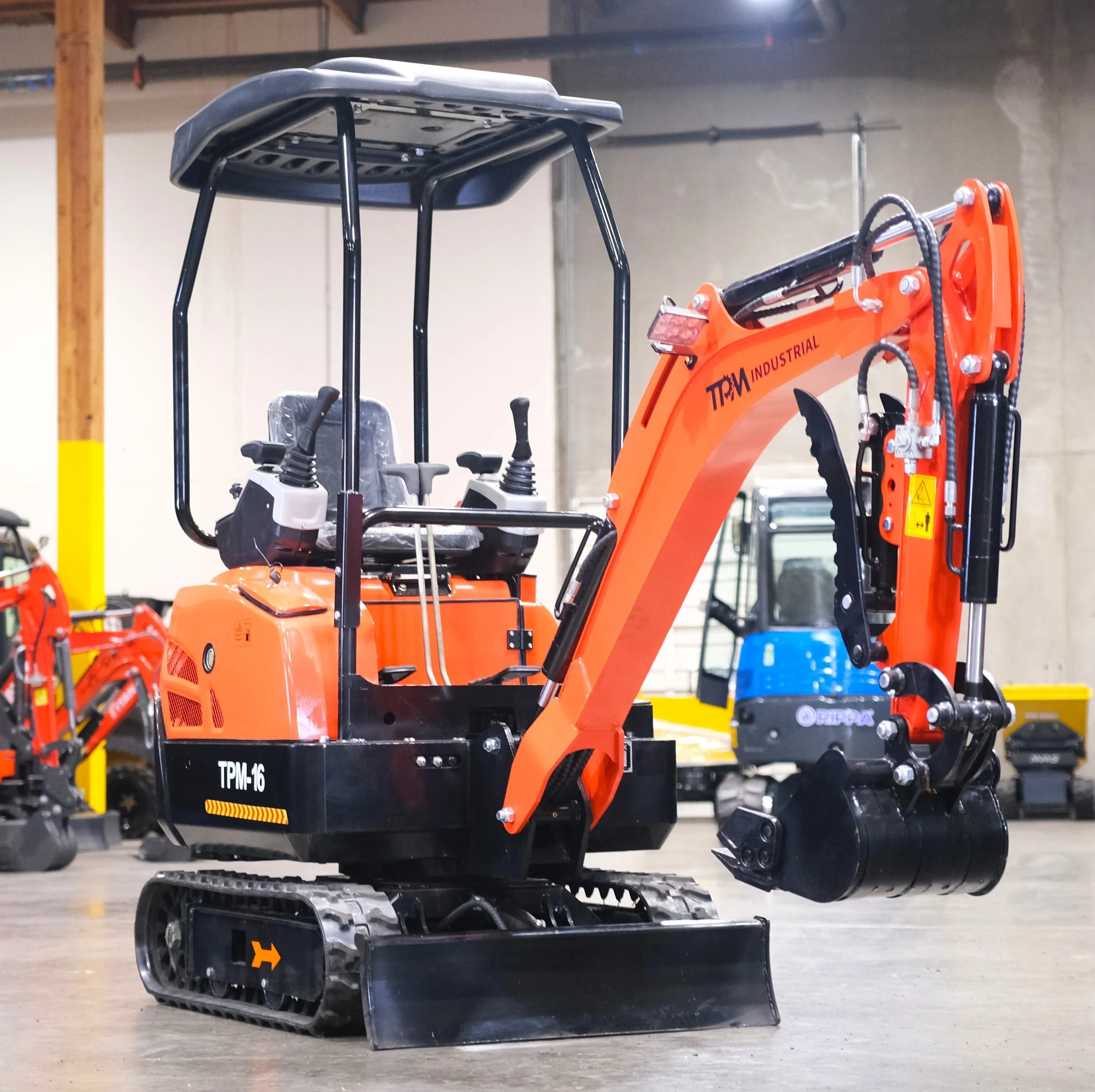

The TPM Industrial TPM-16 is a nimble, hard-working mini excavator designed for contractors,
property owners, and rental yards who need dependable performance in tight access areas.
Its compact footprint, smooth & user-friendly controls, and hydraulic thumb make it a versatile tool for trenching,
utility work, stump/brush removal, light demo, and jobsite cleanup.

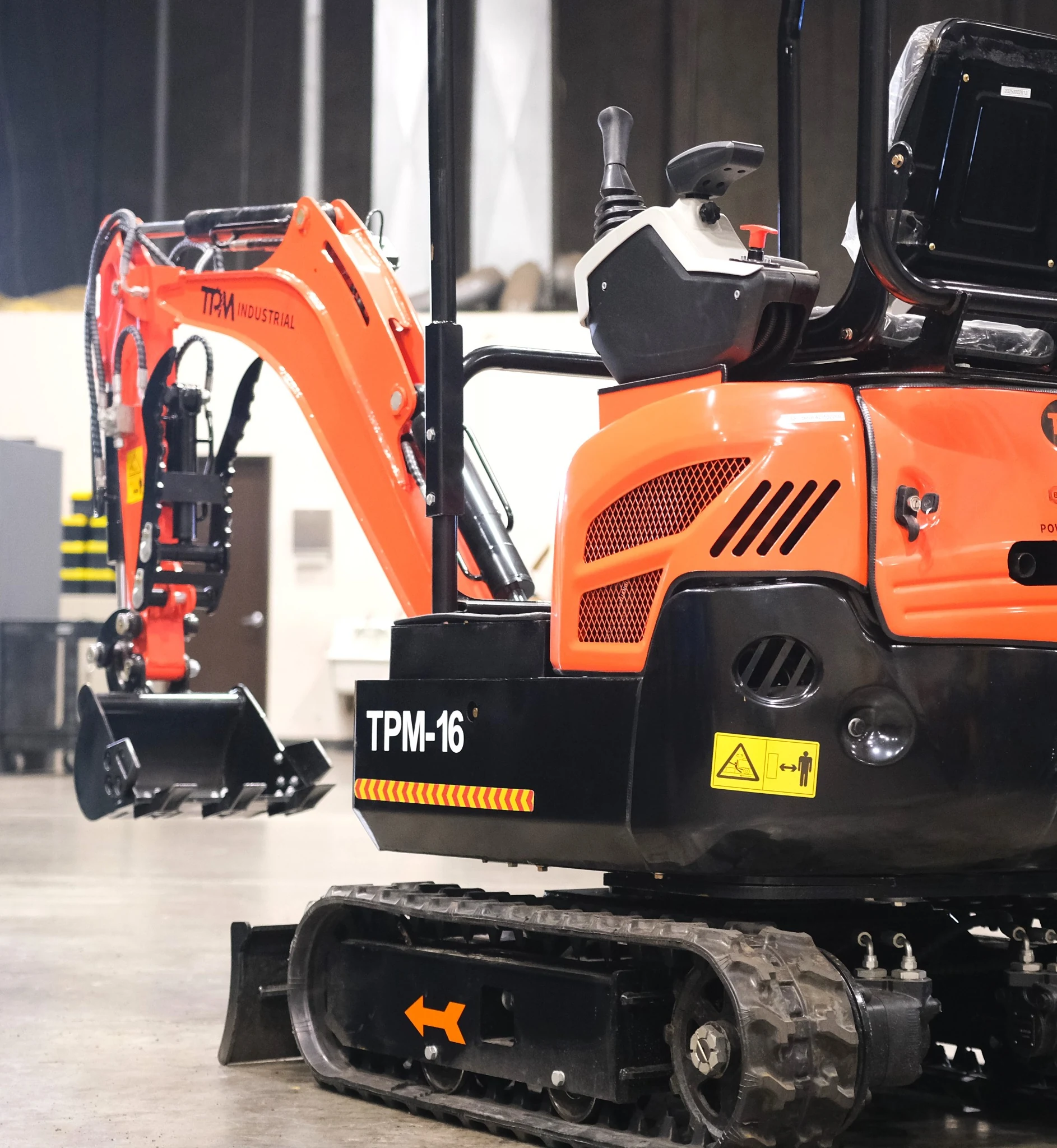

A four-post ROPS canopy enhances safety and visibility, while rubber tracks keep ground disturbance to a minimum.

Highlights

• Powertrain: 13.5HP Briggs & Stratton gasoline engine (air-cooled, simple maintenance)

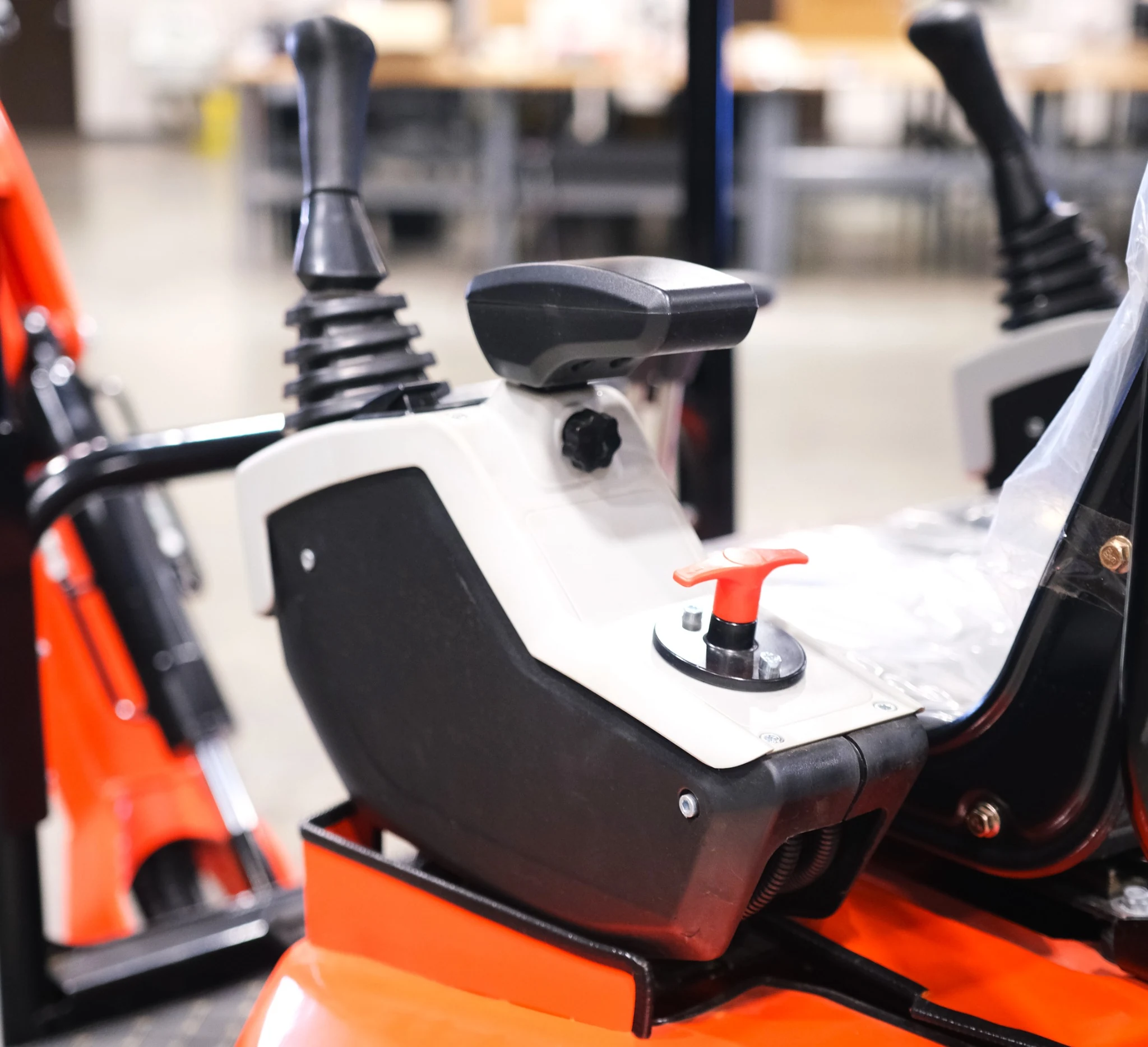

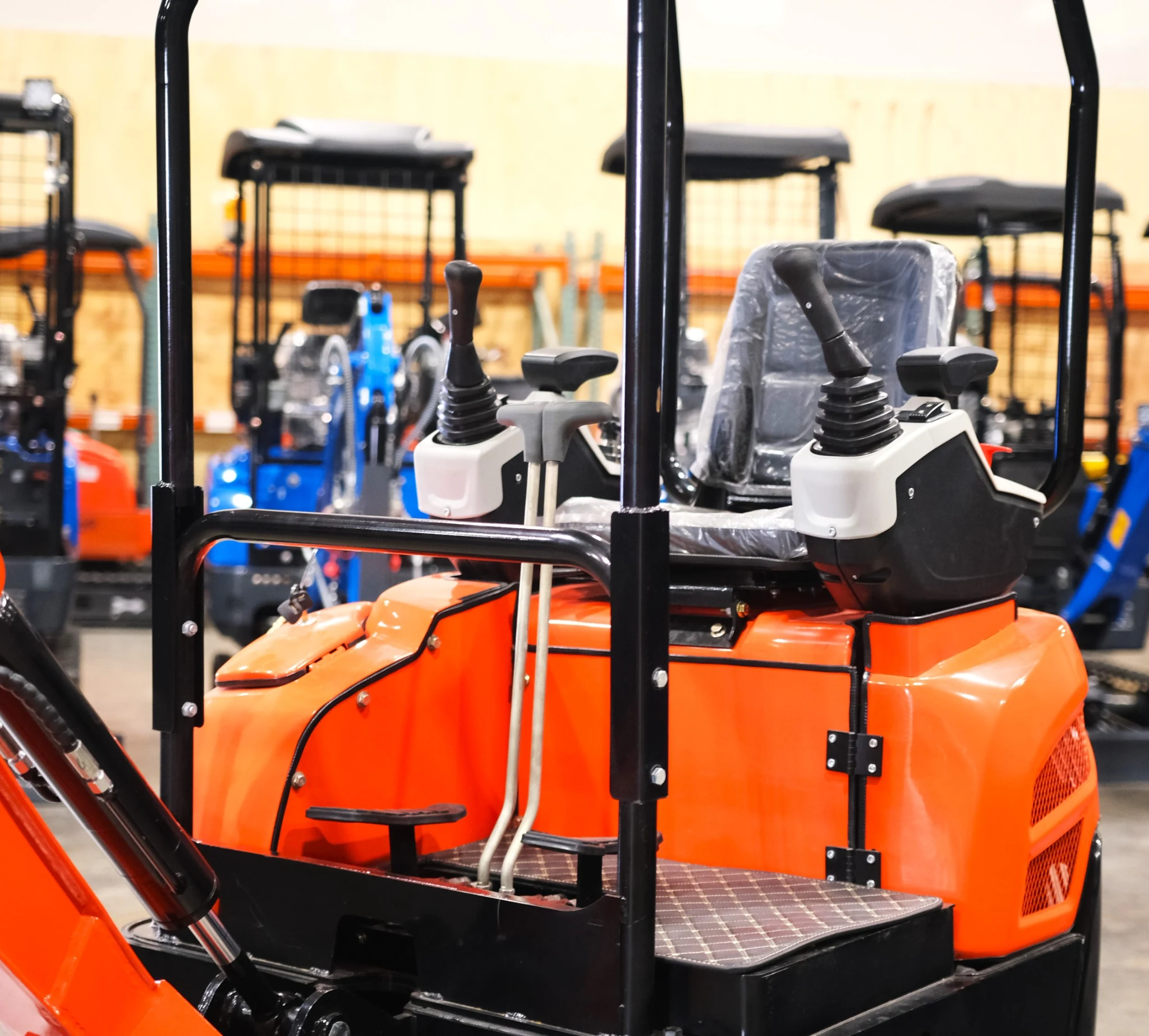

• Control feel: Smooth, easy-to-maneuver levers for precise operation

• Working gear: Inverted arm for improved reach/depth; backfill blade for grading

• Handling: Rubber tracks deliver traction with low ground pressure

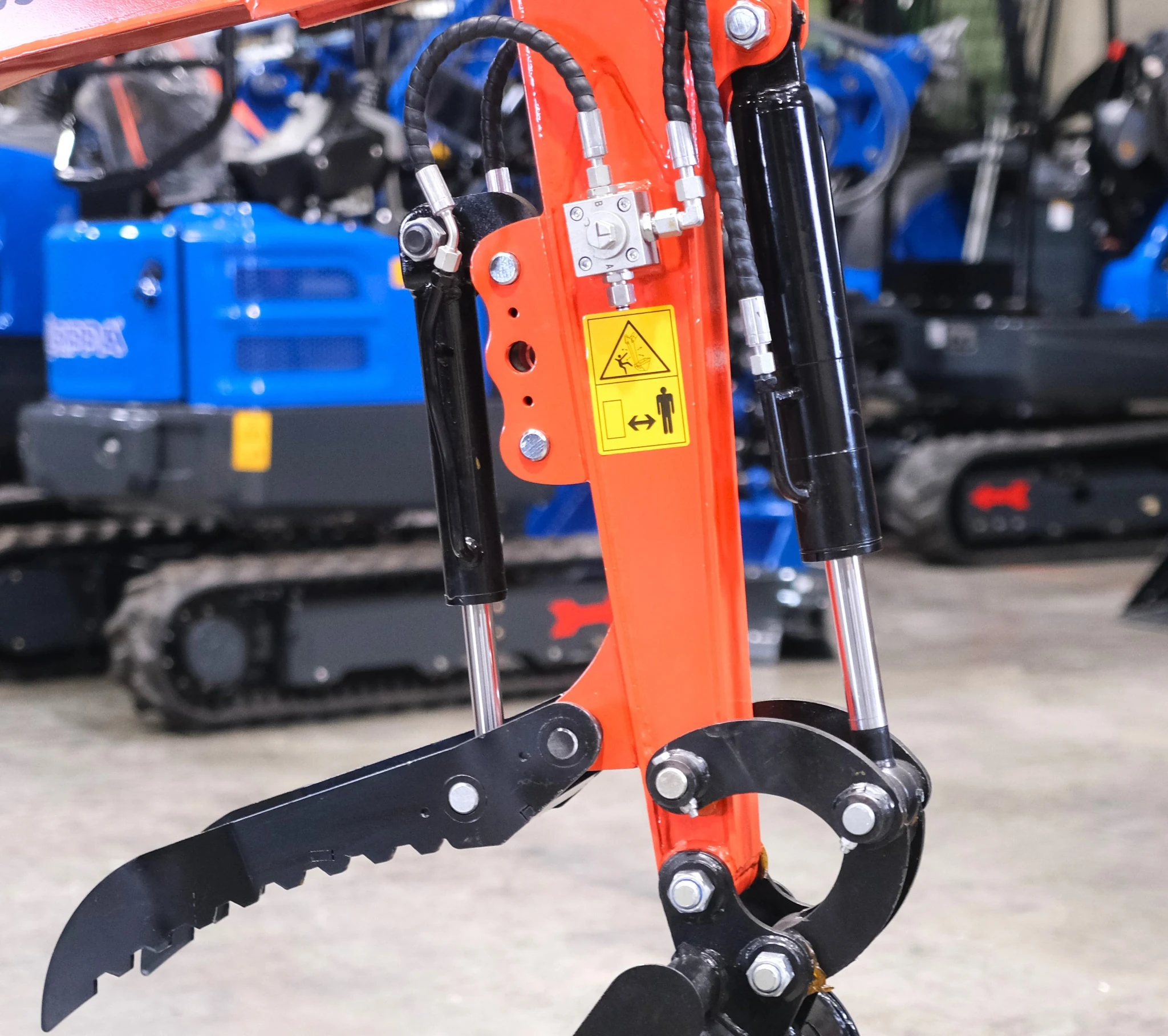

• Attachments: Bucket with hydraulic thumb; accepts common light-duty attachments

• Ownership note: This model is sold as-is with no manufacturer warranty. If you prefer a warranty-backed excavator, ask us about Rippa, Huayee, or Titan options.

---

Specifications

• Performance

  • Operating weight: 950 kg → ≈ 2,094 lb

  • Operation mode: Mechanical handle → Mechanical levers

  • Bucket capacity: 0.025 m³ → ≈ 0.88 ft³ (≈ 0.033 yd³)

  • Travel speed: 0–2.5 km/h → 0–1.55 mph

  • Gradeability: 35% → ≈ 19.3°

  • Ground pressure: 32 kPa → ≈ 4.64 psi

  • Max digging radius: 2,800 mm → ≈ 110.2 in (9 ft 2.2 in)

  • Max digging depth: 1,700 mm → ≈ 66.9 in (5 ft 6.9 in)

  • Max digging height: 2,710 mm → ≈ 106.7 in (8 ft 10.7 in)

  • Max unloading height: 1,850 mm → ≈ 72.8 in (6 ft 0.8 in)

  Dimensions

  • Transport length: 2,140 mm → ≈ 84.3 in (7 ft 0.3 in)

  • Transport width: 930 mm → ≈ 36.6 in (3 ft 0.6 in)

  • Chassis width: 1,100 mm → ≈ 43.3 in (3 ft 7.3 in)

  • Transport height (with canopy): 2,180 mm → ≈ 85.8 in (7 ft 1.8 in)

  • Upper-platform ground clearance: 380 mm → ≈ 15.0 in (1 ft 3.0 in)

  • Bucket width: 400 mm → ≈ 15.7 in (1 ft 3.7 in)

  • Dozer blade width: 1,100 mm → ≈ 43.3 in (3 ft 7.3 in)

  Engine

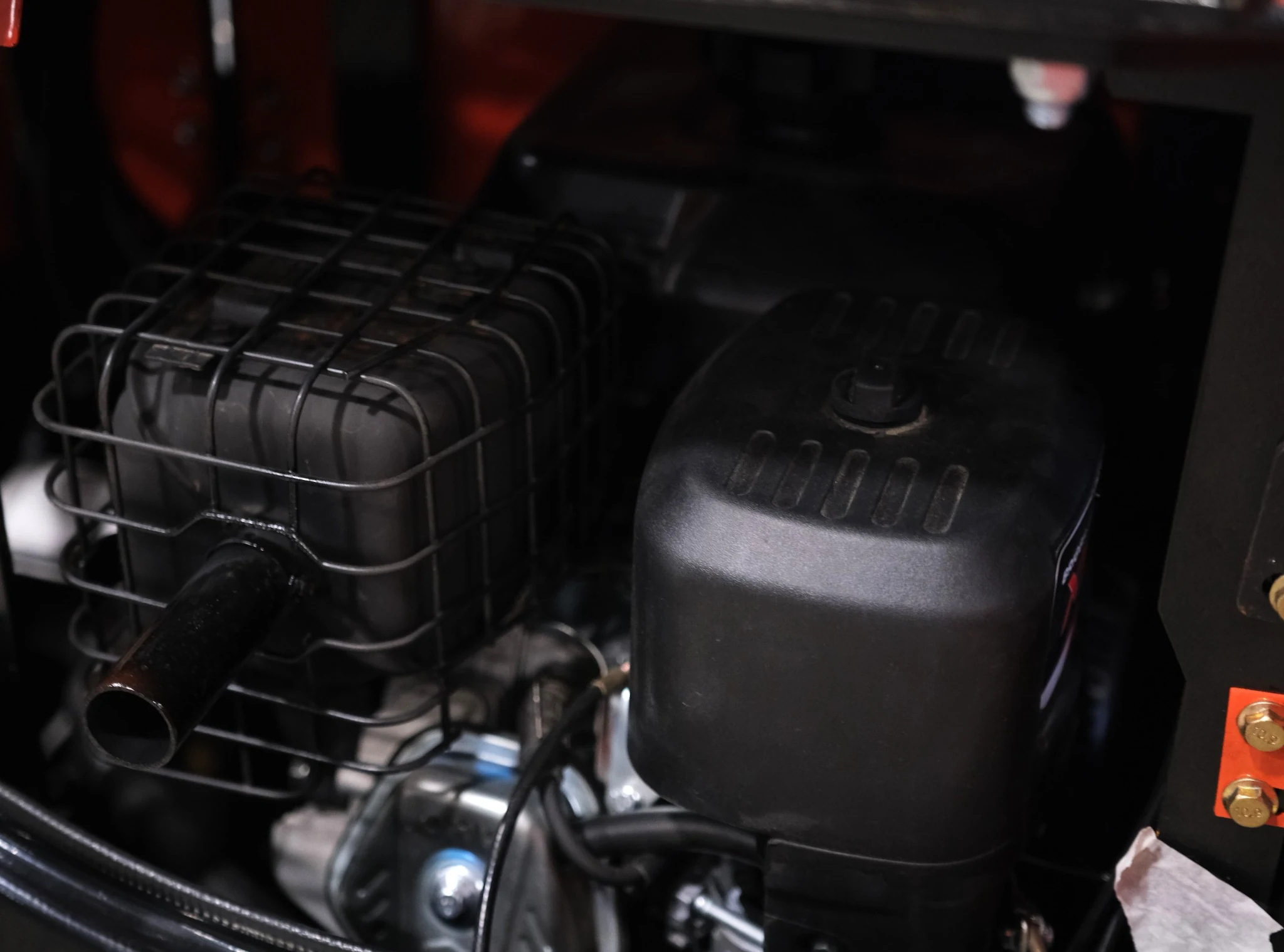

  • Brand/Model: Briggs & Stratton 13.5 HP (420 cc, 1-cyl) → ≈ 25.6 cu in

  • Max power: 10 kW @ 3600 rpm → ≈ 13.4 hp @ 3600 rpm

  • Cooling: Air-cooled

  • Fuel: Gasoline 92#

  • Oil capacity: 1.1 L → ≈ 1.16 qt (≈ 0.29 gal)

  • Theoretical fuel consumption: 0.5–1.2 L/h → ≈ 0.13–0.32 gal/h

Hydraulic system

• Main pump: Gear Pump/06 (Tianjin) — 23.4 L/min, 25 MPa rated pressure

• Multi-way valve: 8-way (Jiangsu JL) — rated/max pressure 16 MPa

• Travel motor: BM6K-315 (Taiheng) — 315 cc

• Swing motor: BM2-315 — 315 cc

• Tensioning: Mechanical

Tracks & tanks

• Rubber tracks: 180×72×37 (W×Pitch×Links), rubber blocks: Yes

• Fuel tank: 6.6 L

• Hydraulic tank: 18 L
